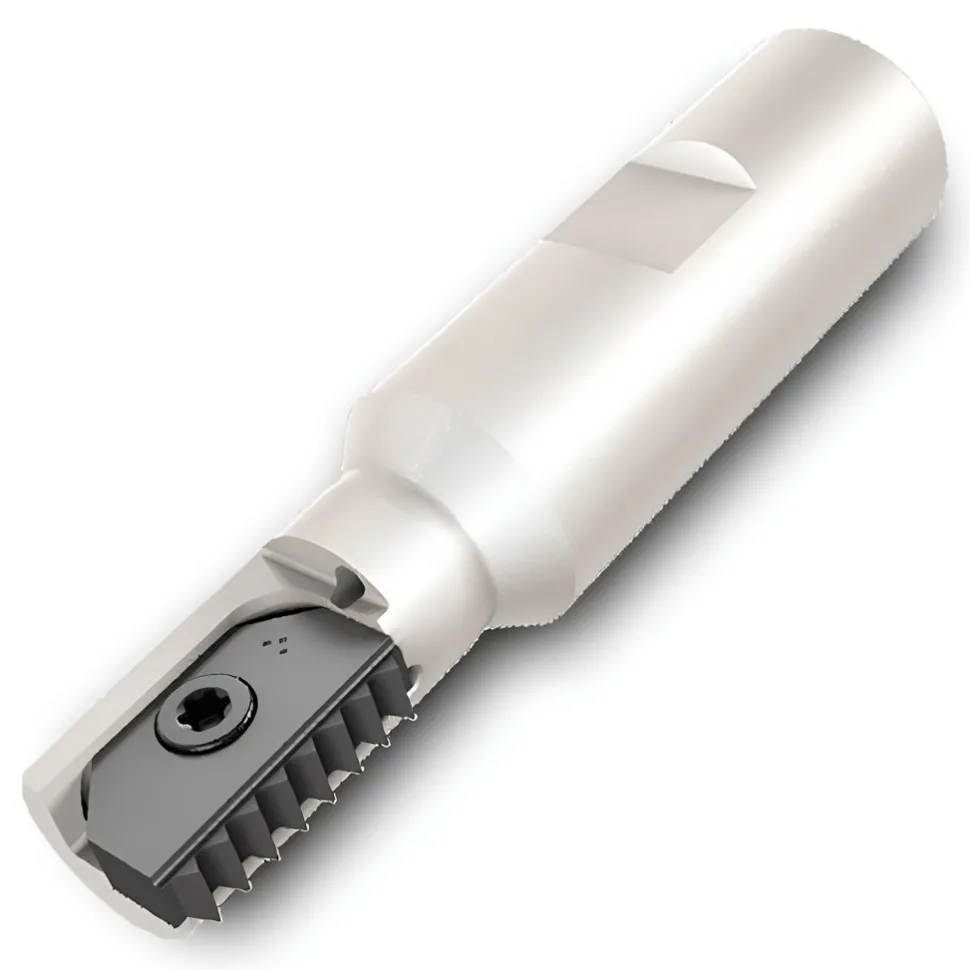

Indexable Thread Mill: 0.79″ Cut Dia, 1.57″ Max Hole Depth, Internal & External, Steel
126,89 $
Specifications
| Cutting Diameter (Decimal Inch): 0.7900 | Maximum Hole Depth (Decimal Inch): 1.5700 |
| Maximum Cutting Length (Decimal Inch): 0.8270 | Compatible Insert Style: LYEU |
| Compatible Insert Size Code: 30 | Toolholder Style: MTED |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Insert Holding Method: Screw |
| Number of Threading Inserts: 1 | Overall Length (Decimal Inch): 3.7000 |
| Coolant Entry Style Code: 1-Axial Concentric Entry | Cutting Direction: Right Hand |
| Toolholder Material: Steel | Thread Type: Internal; External |
| Series: MTED | Flute Type: Straight |
| Cutting Tool Application: Threading | Neck Diameter (Decimal Inch): 0.5900 |
| Tool Application: Thread Milling | Tool Performance: General Purpose |
| Primary Workpiece Material: Universal | Number Of Flutes: 1 |
| Coolant Through: Yes | UNSPSC Code: 23291800 |
| Cutting Diameter (Decimal Inch): 0.7900 | |
| Maximum Hole Depth (Decimal Inch): 1.5700 | |
| Maximum Cutting Length (Decimal Inch): 0.8270 | |
| Compatible Insert Style: LYEU | |
| Compatible Insert Size Code: 30 | |
| Toolholder Style: MTED | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Insert Holding Method: Screw | |
| Number of Threading Inserts: 1 | |
| Overall Length (Decimal Inch): 3.7000 | |
| Coolant Entry Style Code: 1-Axial Concentric Entry | |
| Cutting Direction: Right Hand | |
| Toolholder Material: Steel | |
| Thread Type: Internal; External | |
| Series: MTED | |
| Flute Type: Straight | |
| Cutting Tool Application: Threading | |
| Neck Diameter (Decimal Inch): 0.5900 | |
| Tool Application: Thread Milling | |
| Tool Performance: General Purpose | |
| Primary Workpiece Material: Universal | |
| Number Of Flutes: 1 | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291800 |
| MSC# | 46086716 |
| Mfr# | 2945167 |
