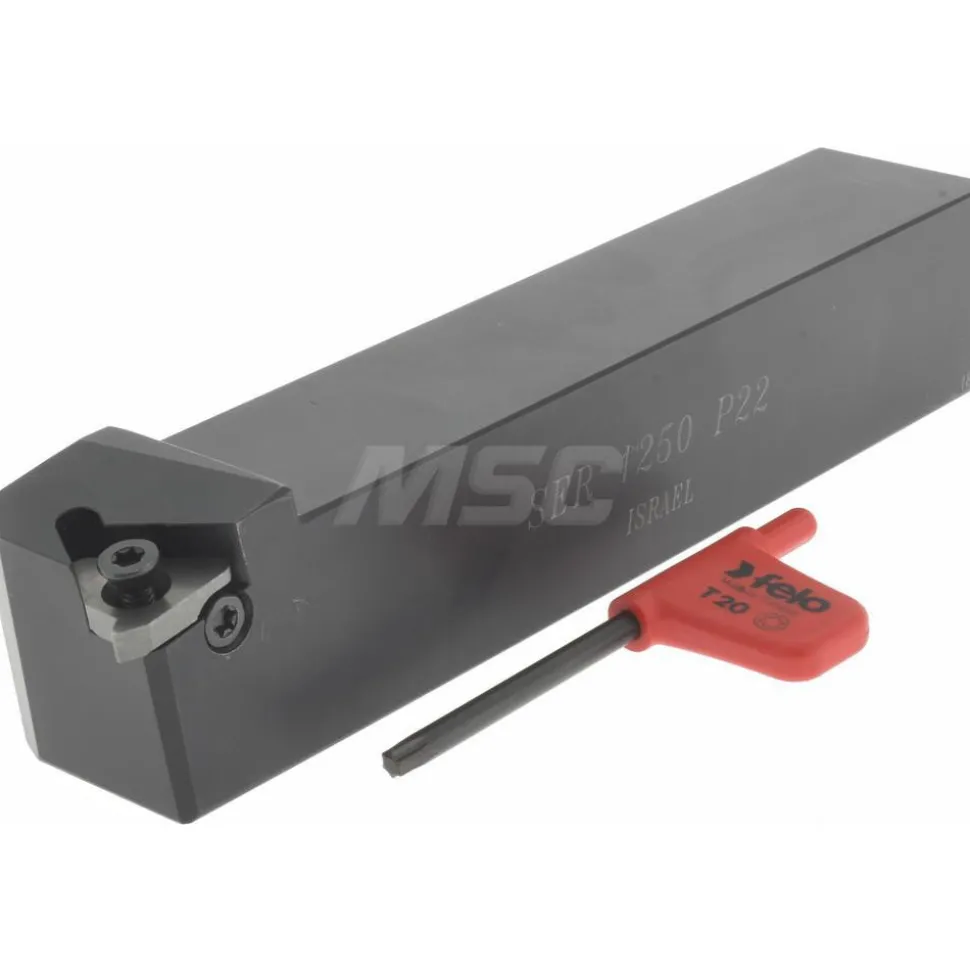

Indexable Threading Toolholder: External, Right Hand, 1-1/4 x 1-1/4" Shank

Indexable Threading Toolholder: External, Right Hand, 1-1/4 x 1-1/4″ Shank

85,99 $

SKU: SKUVA3M3BWRr0 Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Hertel Brand: Hertel

Description
Reviews (0)

Specifications

Thread Type: External	Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 1.2500	Shank Width/Diameter (Inch): 1-1/4
Toolholder Style: HSE	Insert Compatibility: 22ER
Insert Holding Method: Screw	Shank Height (Decimal Inch): 1.2500
Shank Height (Inch): 1-1/4	Shank Length (Inch): 7
Overall Length (Inch): 7	Overall Length (Decimal Inch): 7.0000
Multi-use Tool: No	Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Insert Inscribed Circle (Inch): 1/2	UNSPSC Code: 23291800
Style: HSER-1250-7-22	Coolant Through: No
F -In–: 1.2500	Series: HSER
Country of Origin: Israel
Thread Type: External
Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 1.2500
Shank Width/Diameter (Inch): 1-1/4
Toolholder Style: HSE
Insert Compatibility: 22ER
Insert Holding Method: Screw
Shank Height (Decimal Inch): 1.2500
Shank Height (Inch): 1-1/4
Shank Length (Inch): 7
Overall Length (Inch): 7
Overall Length (Decimal Inch): 7.0000
Multi-use Tool: No
Back of Bar to Cutting Edge (Decimal Inch): 1.2500
Insert Inscribed Circle (Inch): 1/2
UNSPSC Code: 23291800
Style: HSER-1250-7-22
Coolant Through: No
F -In–: 1.2500
Series: HSER
Country of Origin: Israel
