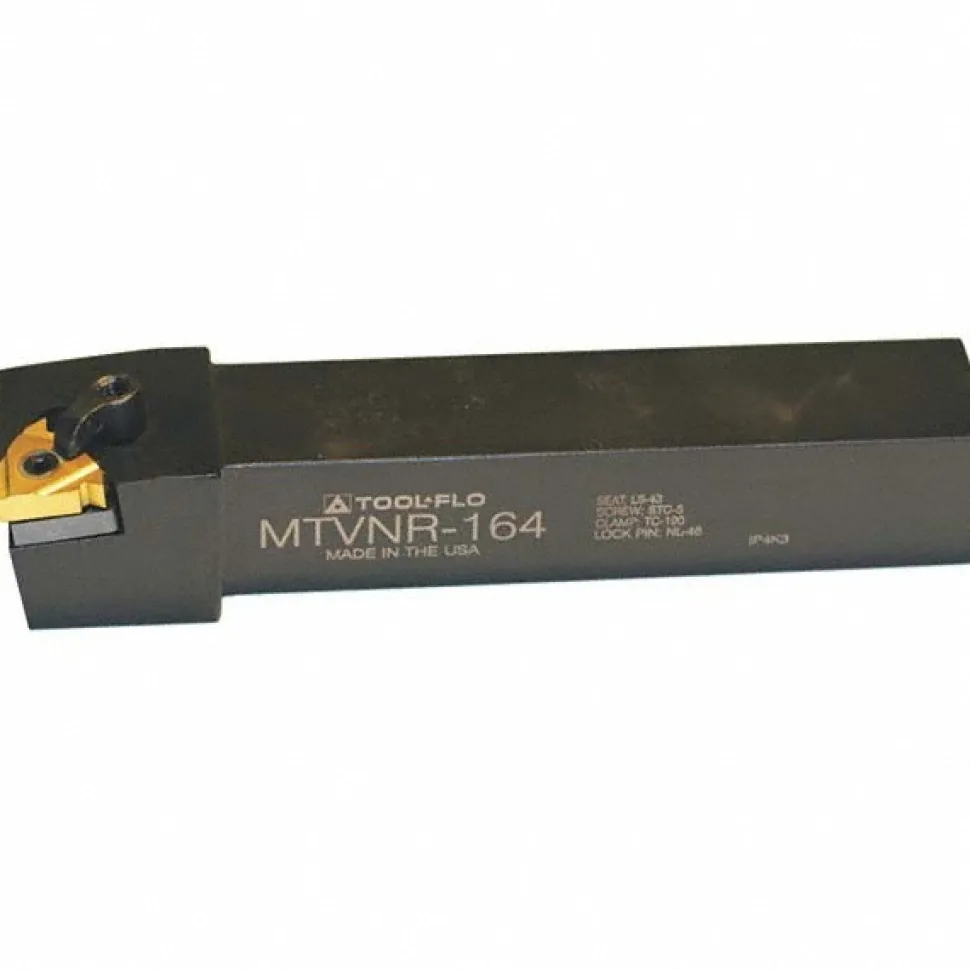

Indexable Threading Toolholder: External, Right Hand, 1-1/4 x 1-1/4″ Shank
Original price was: 198,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 1.2500 | Shank Width/Diameter (Inch): 1-1/4 |
| Toolholder Style: MTVN | Insert Compatibility: L43 |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Clamp & Pin |
| Shank Height (Decimal Inch): 1.2500 | Shank Height (Inch): 1-1/4 |
| Overall Length (Inch): 7 | Overall Length (Decimal Inch): 7.0000 |
| Multi-use Tool: Yes | Cutting Tool Application: Grooving; Threading |
| Head Length (Decimal Inch): 1.2700 | Back of Bar to Cutting Edge (Decimal Inch): 1.5000 |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | Insert Inscribed Circle (Inch): 1/2 |
| UNSPSC Code: 23291800 | Coolant Through: No |
| Series: Laydown | Country of Origin: UNITED STATES |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 1.2500 | |
| Shank Width/Diameter (Inch): 1-1/4 | |
| Toolholder Style: MTVN | |
| Insert Compatibility: L43 | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Clamp & Pin | |
| Shank Height (Decimal Inch): 1.2500 | |
| Shank Height (Inch): 1-1/4 | |
| Overall Length (Inch): 7 | |
| Overall Length (Decimal Inch): 7.0000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Threading | |
| Head Length (Decimal Inch): 1.2700 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.5000 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| UNSPSC Code: 23291800 | |
| Coolant Through: No | |
| Series: Laydown | |
| Country of Origin: UNITED STATES |
| MSC# | 81519050 |
| Mfr# | 95802056 |
