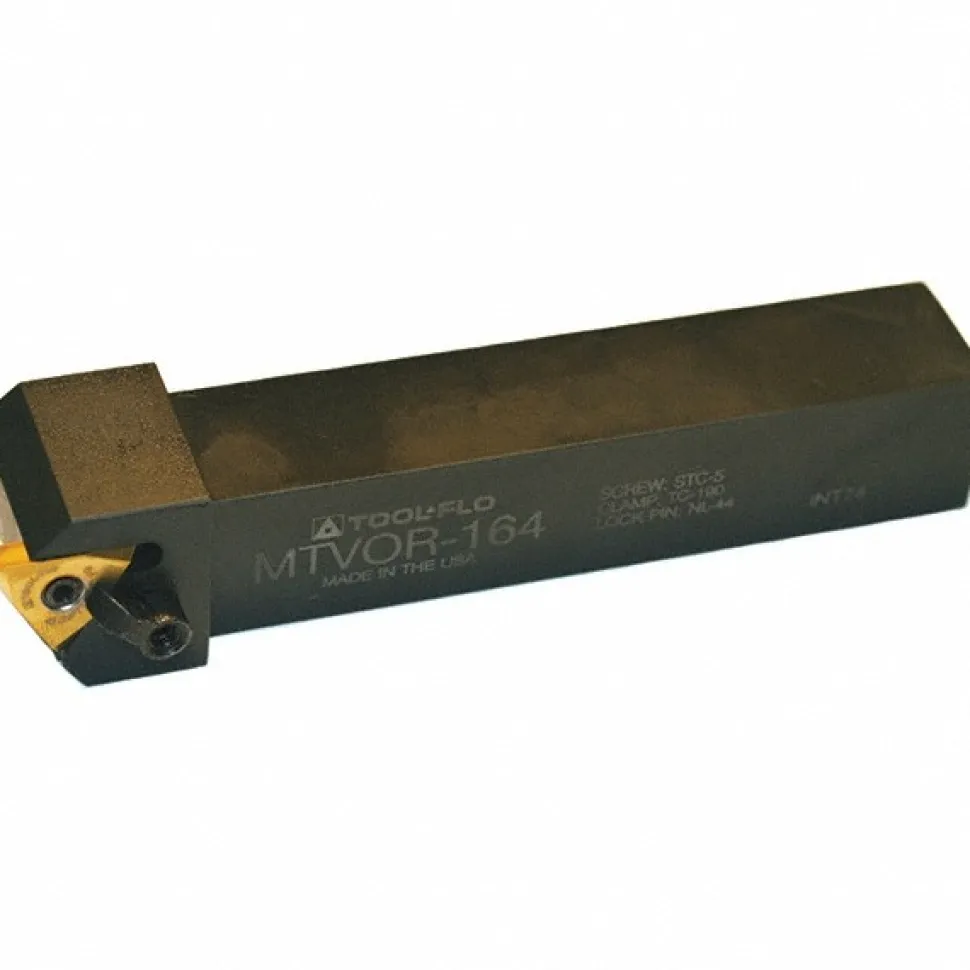

Indexable Threading Toolholder: External, Right Hand, 1 x 1″ Shank
Original price was: 135,00 $.91,99 $Current price is: 91,99 $.
Specifications
| Thread Type: External | Hand of Holder: Right Hand |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Shank Width/Diameter (Inch): 1 |
| Toolholder Style: MTVO | Insert Compatibility: T.MA/C 54 |
| Coolant Entry Style Code: 0 – Without Coolant | Insert Holding Method: Clamp & Pin |
| Shank Height (Decimal Inch): 1.0000 | Shank Height (Inch): 1 |
| Overall Length (Inch): 6 | Overall Length (Decimal Inch): 6.0000 |
| Multi-use Tool: Yes | Cutting Tool Application: Grooving; Threading |
| Head Length (Decimal Inch): 1.4300 | Maximum Depth of Cut (Decimal Inch): 0.2900 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | Insert Inscribed Circle (Decimal Inch): 0.6250 |
| UNSPSC Code: 23291800 | Coolant Through: No |
| Series: On-Edge | Country of Origin: UNITED STATES |
| Thread Type: External | |
| Hand of Holder: Right Hand | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Width/Diameter (Inch): 1 | |
| Toolholder Style: MTVO | |
| Insert Compatibility: T.MA/C 54 | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Clamp & Pin | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Height (Inch): 1 | |
| Overall Length (Inch): 6 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Grooving; Threading | |
| Head Length (Decimal Inch): 1.4300 | |
| Maximum Depth of Cut (Decimal Inch): 0.2900 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| Insert Inscribed Circle (Decimal Inch): 0.6250 | |
| UNSPSC Code: 23291800 | |
| Coolant Through: No | |
| Series: On-Edge | |
| Country of Origin: UNITED STATES |
| MSC# | 05057682 |
| Mfr# | 96001664 |
