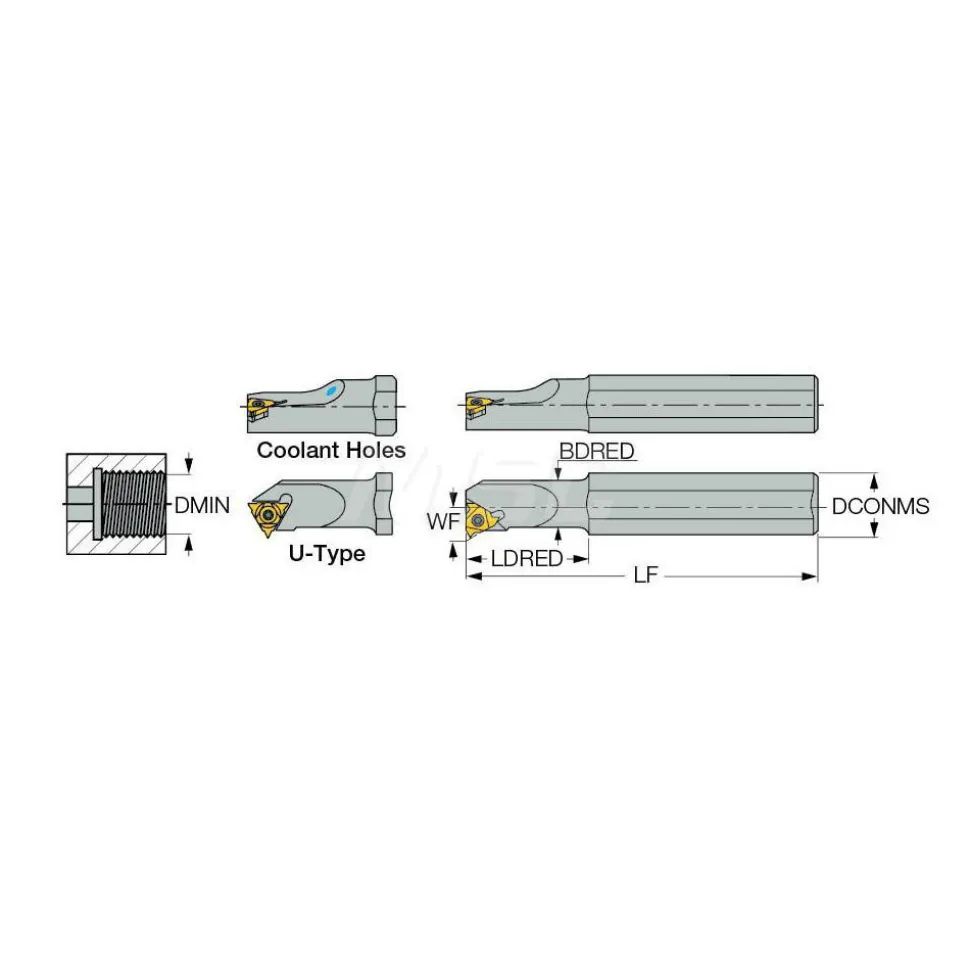

Indexable Threading Toolholder: Internal, Left Hand, 1 x 1″ Shank
138,89 $
Specifications
| Thread Type: Internal | Hand of Holder: Left Hand |
| Shank Width/Diameter (Decimal Inch): 1.0000 | Toolholder Style: SI |
| Insert Compatibility: R 22 | Coolant Entry Style Code: 0 – Without Coolant |
| Insert Holding Method: Screw | Shank Height (Decimal Inch): 1.0000 |
| Shank Length (Inch): 7 | Shank Length (Decimal Inch): 7.0000 |
| Overall Length (Inch): 8 | Overall Length (Decimal Inch): 8.0000 |
| Minimum Bore Diameter (Decimal Inch): 1.2000 | Multi-use Tool: No |
| Cutting Tool Application: Threading | Back of Bar to Cutting Edge (Decimal Inch): 1.2000 |
| Center to Cutting Edge (Decimal Inch): 0.7100 | Insert Inscribed Circle (Inch): 1/2 |
| UNSPSC Code: 23291800 | Coolant Through: No |
| Series: SIL | Country of Origin: Israel |
| Thread Type: Internal | |
| Hand of Holder: Left Hand | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Toolholder Style: SI | |
| Insert Compatibility: R 22 | |
| Coolant Entry Style Code: 0 – Without Coolant | |
| Insert Holding Method: Screw | |
| Shank Height (Decimal Inch): 1.0000 | |
| Shank Length (Inch): 7 | |
| Shank Length (Decimal Inch): 7.0000 | |
| Overall Length (Inch): 8 | |
| Overall Length (Decimal Inch): 8.0000 | |
| Minimum Bore Diameter (Decimal Inch): 1.2000 | |
| Multi-use Tool: No | |
| Cutting Tool Application: Threading | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2000 | |
| Center to Cutting Edge (Decimal Inch): 0.7100 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| UNSPSC Code: 23291800 | |
| Coolant Through: No | |
| Series: SIL | |
| Country of Origin: Israel |
| MSC# | 60873429 |
| Mfr# | 3800077 |
