Indexable Threading Toolholder: Internal, Left Hand, 14.48 x 5/8″ Shank
122,99 $

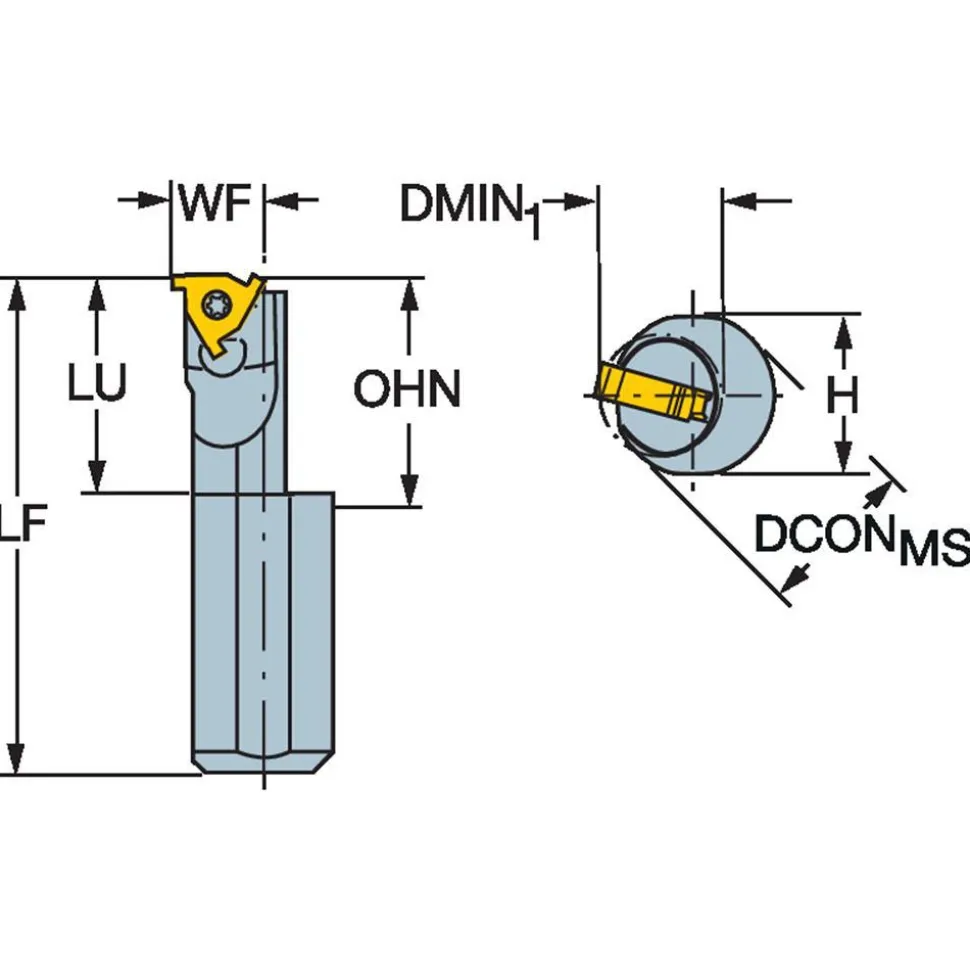

Specifications
| Thread Type: Internal | Hand of Holder: Left Hand |
| Shank Width/Diameter (Decimal Inch): 0.6250 | Shank Width/Diameter (Inch): 5/8 |
| Toolholder Style: L166.0L | Insert Compatibility: L166.0L to 11MM01 to 150; L166.0L to 11MM01 to 175; L166.0L to 11MM01 to 075; L166.0L to 11UN01 to 200; L166.0L to 11MM01 to 050; L166.0L to 11UN01 to 140; L166.0L to 11UN01 to 240; L166.0L to 11UN01 to 180; L166.0L to 11UN01 to 280; L166.0L to 11UN01 to 160; L166.0L to 11MM01 to 125; L166.0L to 11MM01 to 100; L166.0L to 11MM01 to 200 |
| Insert Holding Method: Screw | Shank Height (mm): 14.48 |
| Shank Height (Decimal Inch): 0.5700 | Shank Length (Decimal Inch): 4.1811 |
| Overall Length (Inch): 5 | Overall Length (Decimal Inch): 5.0000 |
| Minimum Bore Diameter (Decimal Inch): 0.5000 | Multi-use Tool: Yes |
| Cutting Tool Application: Threading | Head Length (Decimal Inch): 0.8189 |
| Head Length (mm): 20.80 | Maximum Depth of Cut (Decimal Inch): 1.8750 |
| Center to Cutting Edge (mm): 10.01 | Center to Cutting Edge (Decimal Inch): 0.3940 |
| Insert Inscribed Circle (Decimal Inch): 0.2500 | Insert Inscribed Circle (Inch): 1/4 |
| Neck Diameter (Decimal Inch): 0.6250 | Pitch Range: 32 to 12 |
| UNSPSC Code: 23291800 | Toolholder Material: Steel |
| Coolant Through: No | Series: T-Max U-Lock 166 |
| Country of Origin: India | |
| Thread Type: Internal | |
| Hand of Holder: Left Hand | |
| Shank Width/Diameter (Decimal Inch): 0.6250 | |
| Shank Width/Diameter (Inch): 5/8 | |
| Toolholder Style: L166.0L | |
| Insert Compatibility: L166.0L to 11MM01 to 150; L166.0L to 11MM01 to 175; L166.0L to 11MM01 to 075; L166.0L to 11UN01 to 200; L166.0L to 11MM01 to 050; L166.0L to 11UN01 to 140; L166.0L to 11UN01 to 240; L166.0L to 11UN01 to 180; L166.0L to 11UN01 to 280; L166.0L to 11UN01 to 160; L166.0L to 11MM01 to 125; L166.0L to 11MM01 to 100; L166.0L to 11MM01 to 200 | |
| Insert Holding Method: Screw | |
| Shank Height (mm): 14.48 | |
| Shank Height (Decimal Inch): 0.5700 | |
| Shank Length (Decimal Inch): 4.1811 | |
| Overall Length (Inch): 5 | |
| Overall Length (Decimal Inch): 5.0000 | |
| Minimum Bore Diameter (Decimal Inch): 0.5000 | |
| Multi-use Tool: Yes | |
| Cutting Tool Application: Threading | |
| Head Length (Decimal Inch): 0.8189 | |
| Head Length (mm): 20.80 | |
| Maximum Depth of Cut (Decimal Inch): 1.8750 | |
| Center to Cutting Edge (mm): 10.01 | |
| Center to Cutting Edge (Decimal Inch): 0.3940 | |
| Insert Inscribed Circle (Decimal Inch): 0.2500 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Neck Diameter (Decimal Inch): 0.6250 | |
| Pitch Range: 32 to 12 | |
| UNSPSC Code: 23291800 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Series: T-Max U-Lock 166 | |
| Country of Origin: India |
| MSC# | 49407760 |
| Mfr# | 5734475 |
