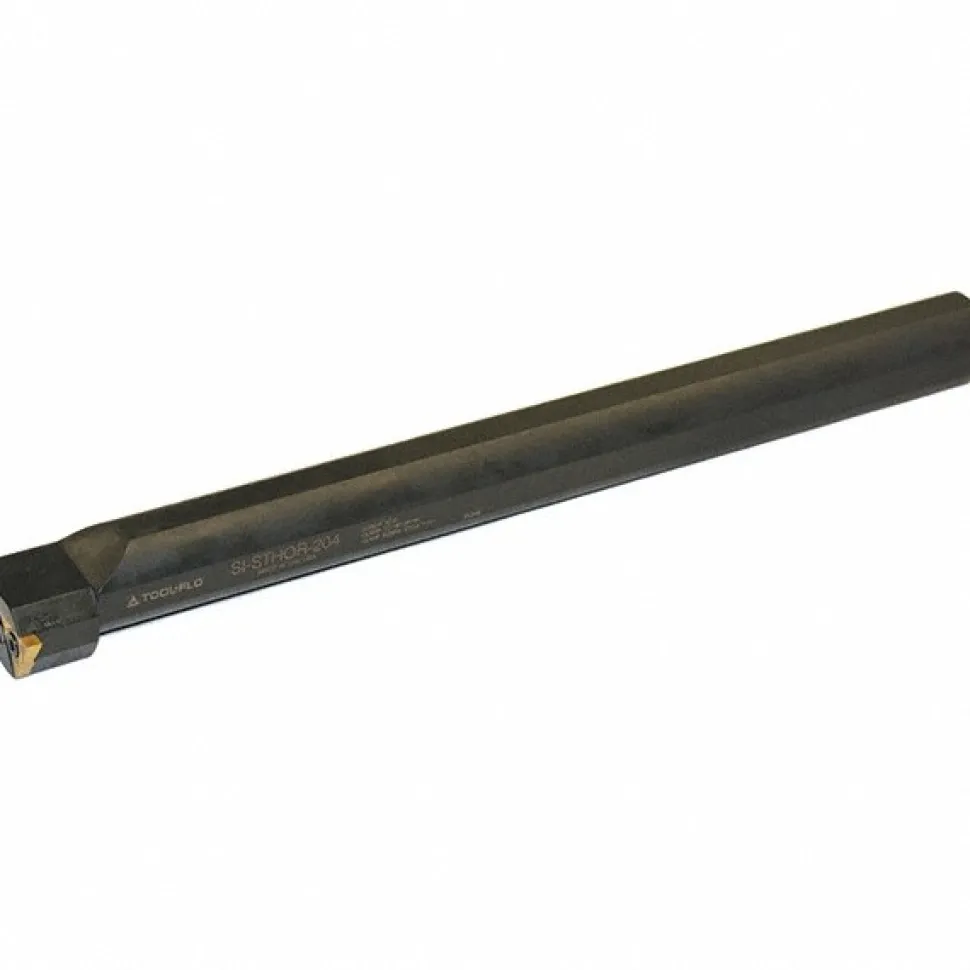

Indexable Threading Toolholder: Internal, Right Hand, 1-1/2 x 1-1/2″ Shank

128,89 $

SKU: SKUKEuymPYFjq Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Tool-Flo Brand: Tool-Flo

Description
Reviews (0)

Specifications

Thread Type: Internal	Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 1.5000	Toolholder Style: SI-STHO
Insert Compatibility: T.MC 54	Coolant Entry Style Code: 0 – Without Coolant
Insert Holding Method: Clamp & Screw	Shank Height (Decimal Inch): 1.5000
Overall Length (Inch): 14	Overall Length (Decimal Inch): 14.0000
Minimum Bore Diameter (Decimal Inch): 2.2400	Multi-use Tool: Yes
Cutting Tool Application: Grooving; Threading	Maximum Depth of Cut (Decimal Inch): 0.2200
Center to Cutting Edge (Decimal Inch): 1.0730	Insert Inscribed Circle (Decimal Inch): 0.6250
UNSPSC Code: 23291800	Coolant Through: No
Series: On-Edge	Country of Origin: UNITED STATES
Thread Type: Internal
Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 1.5000
Toolholder Style: SI-STHO
Insert Compatibility: T.MC 54
Coolant Entry Style Code: 0 – Without Coolant
Insert Holding Method: Clamp & Screw
Shank Height (Decimal Inch): 1.5000
Overall Length (Inch): 14
Overall Length (Decimal Inch): 14.0000
Minimum Bore Diameter (Decimal Inch): 2.2400
Multi-use Tool: Yes
Cutting Tool Application: Grooving; Threading
Maximum Depth of Cut (Decimal Inch): 0.2200
Center to Cutting Edge (Decimal Inch): 1.0730
Insert Inscribed Circle (Decimal Inch): 0.6250
UNSPSC Code: 23291800
Coolant Through: No
Series: On-Edge
Country of Origin: UNITED STATES
