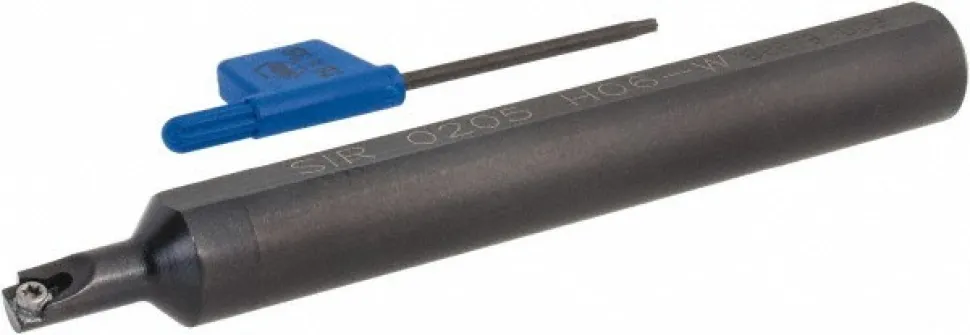

Indexable Threading Toolholder: Internal, Right Hand, 1/2 x 1/2" Shank

Indexable Threading Toolholder: Internal, Right Hand, 1/2 x 1/2″ Shank

124,89 $

SKU: SKUxeQi0tgdGO Categories: Indexable Cutting Tools, Indexable Threading, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Thread Type: Internal	Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.5000	Toolholder Style: SI
Insert Compatibility: IR/L to API; IR to MJ; IR to EL; WBGT; IR/L to RND; IR/L to 55; IR/L to STACME; IR to BUT; IR/L to BSPT; IR/L to UN; WBMT; GTMA; IR/L to API RD; GTGA; IR/L to UNJ; IR/L to NPT; IR/L to ABUT; IR/L to SAGE; IR/L to ISO; IR/L to TR; IR/L to 60; IR/L to PG; IR/L to W; IR/L to ACME; IR/L to NPTF	Coolant Entry Style Code: 0 – Without Coolant
Insert Holding Method: Screw	Shank Height (Decimal Inch): 0.5000
Shank Length (Decimal Inch): 3.8000	Overall Length (Decimal Inch): 4.0000
Minimum Bore Diameter (Decimal Inch): 0.2500	Multi-use Tool: No
Cutting Tool Application: Threading	Head Length (Decimal Inch): 0.5000
Maximum Depth of Cut (Decimal Inch): 0.5000	Center to Cutting Edge (Decimal Inch): 0.1700
Neck Diameter (Decimal Inch): 0.2000	UNSPSC Code: 23291800
Coolant Through: No	Series: IscarThread
Country of Origin: Israel
Thread Type: Internal
Hand of Holder: Right Hand
Shank Width/Diameter (Decimal Inch): 0.5000
Toolholder Style: SI
Insert Compatibility: IR/L to API; IR to MJ; IR to EL; WBGT; IR/L to RND; IR/L to 55; IR/L to STACME; IR to BUT; IR/L to BSPT; IR/L to UN; WBMT; GTMA; IR/L to API RD; GTGA; IR/L to UNJ; IR/L to NPT; IR/L to ABUT; IR/L to SAGE; IR/L to ISO; IR/L to TR; IR/L to 60; IR/L to PG; IR/L to W; IR/L to ACME; IR/L to NPTF
Coolant Entry Style Code: 0 – Without Coolant
Insert Holding Method: Screw
Shank Height (Decimal Inch): 0.5000
Shank Length (Decimal Inch): 3.8000
Overall Length (Decimal Inch): 4.0000
Minimum Bore Diameter (Decimal Inch): 0.2500
Multi-use Tool: No
Cutting Tool Application: Threading
Head Length (Decimal Inch): 0.5000
Maximum Depth of Cut (Decimal Inch): 0.5000
Center to Cutting Edge (Decimal Inch): 0.1700
Neck Diameter (Decimal Inch): 0.2000
UNSPSC Code: 23291800
Coolant Through: No
Series: IscarThread
Country of Origin: Israel
