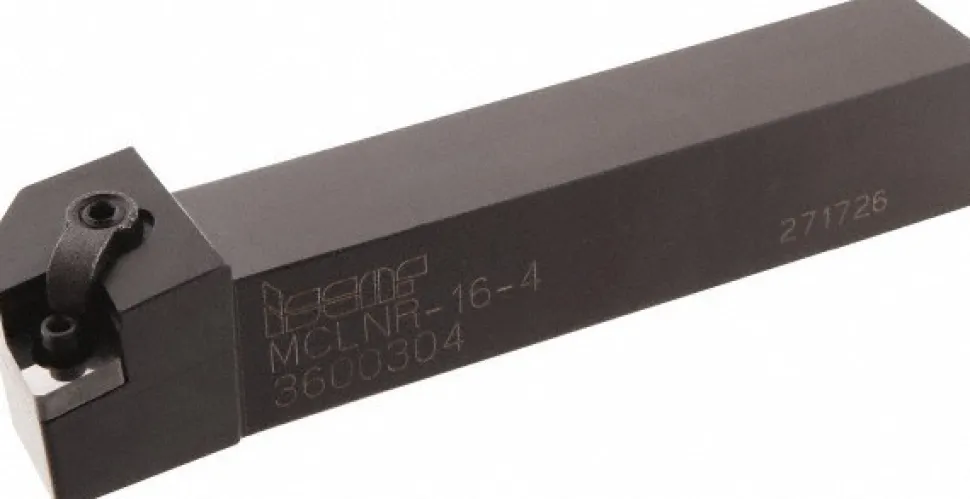

Indexable Turning Toolholder: Clamp & Pin
Original price was: 151,00 $.102,89 $Current price is: 102,89 $.
Specifications
| Toolholder Style: MCLN | Hand of Holder: Right Hand |
| Insert Compatibility: CN..43.. | Insert Holding Method: Pin; Clamp |
| Shank Width (Inch): 1 | Shank Height (Inch): 1 |
| Overall Length (Decimal Inch): 6.0000 | Shank Width (mm): 25.40 |
| Shank Height (mm): 25.40 | Coolant Through: No |
| Rake: Negative | Cutting Direction: Right Hand |
| Compatible Insert Size Code: CNMG431-GN | Rake Angle: -6 |
| Multi-use Tool: No | Shank Width (Decimal Inch): 1.0000 |
| Shank Height (Decimal Inch): 1.0000 | Series: Isoturn |
| Overall Length (Inch): 6 | Cutting Tool Application: Turning |
| Head Length (Decimal Inch): 1.1900 | Back of Bar to Cutting Edge (Decimal Inch): 1.2500 |
| Standards: ISO 13399 | Insert Inscribed Circle (Decimal Inch): 0.5000 |
| Insert Inscribed Circle (Inch): 1/2 | UNSPSC Code: 23153308 |
| Country of Origin: UNITED STATES | |
| Toolholder Style: MCLN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: CN..43.. | |
| Insert Holding Method: Pin; Clamp | |
| Shank Width (Inch): 1 | |
| Shank Height (Inch): 1 | |
| Overall Length (Decimal Inch): 6.0000 | |
| Shank Width (mm): 25.40 | |
| Shank Height (mm): 25.40 | |
| Coolant Through: No | |
| Rake: Negative | |
| Cutting Direction: Right Hand | |
| Compatible Insert Size Code: CNMG431-GN | |
| Rake Angle: -6 | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 1.0000 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Isoturn | |
| Overall Length (Inch): 6 | |
| Cutting Tool Application: Turning | |
| Head Length (Decimal Inch): 1.1900 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.2500 | |
| Standards: ISO 13399 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| UNSPSC Code: 23153308 | |
| Country of Origin: UNITED STATES |
| MSC# | 60920626 |
| Mfr# | 3600304 |
| Big Book# | 832 |
