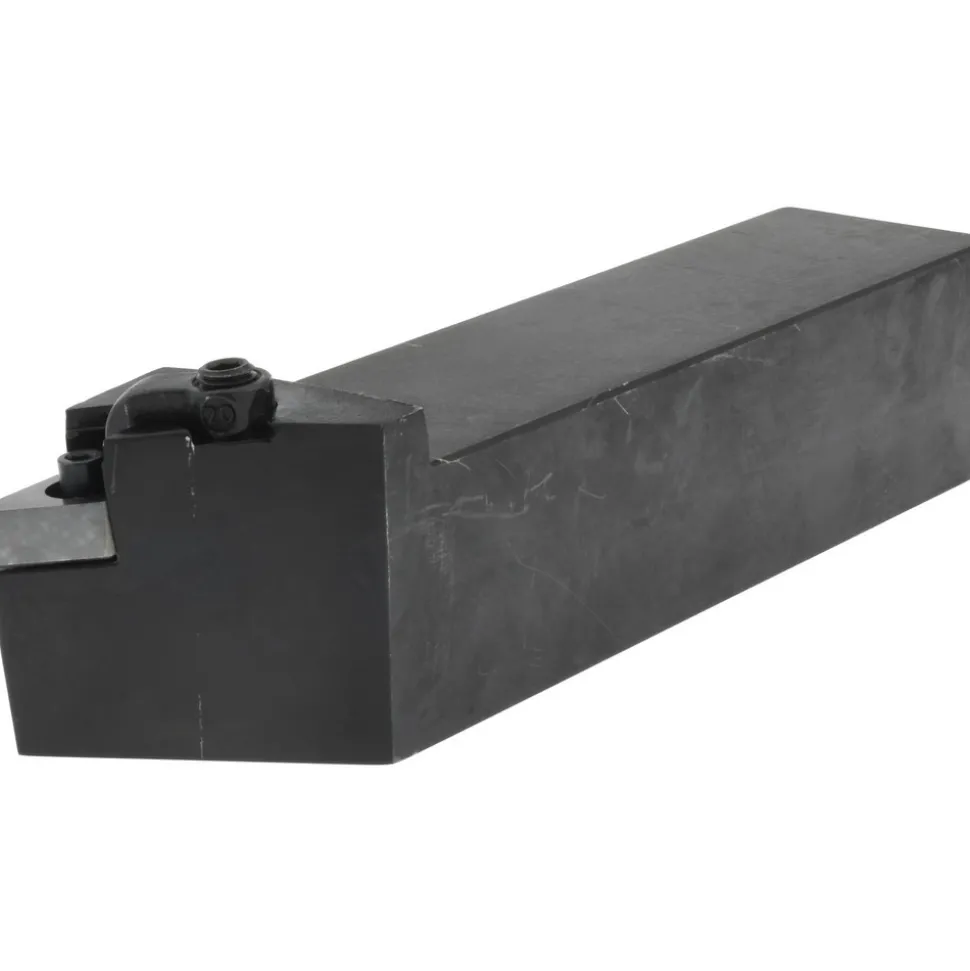

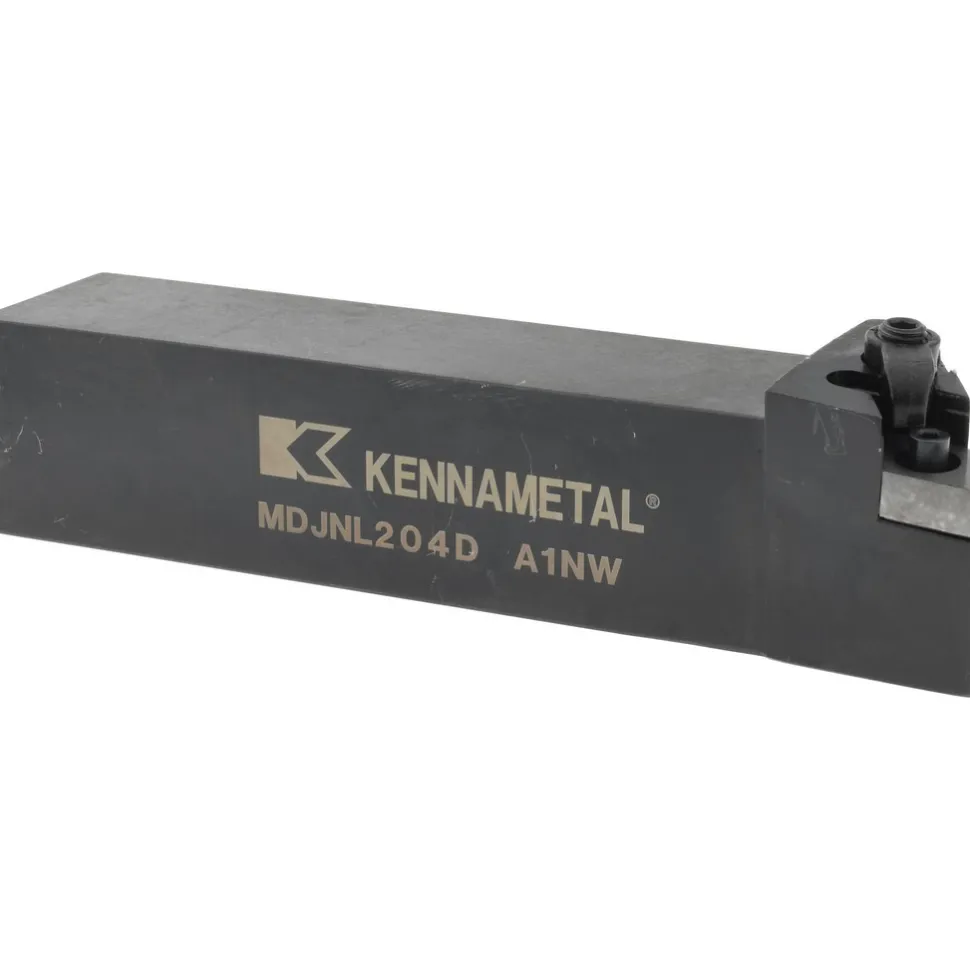

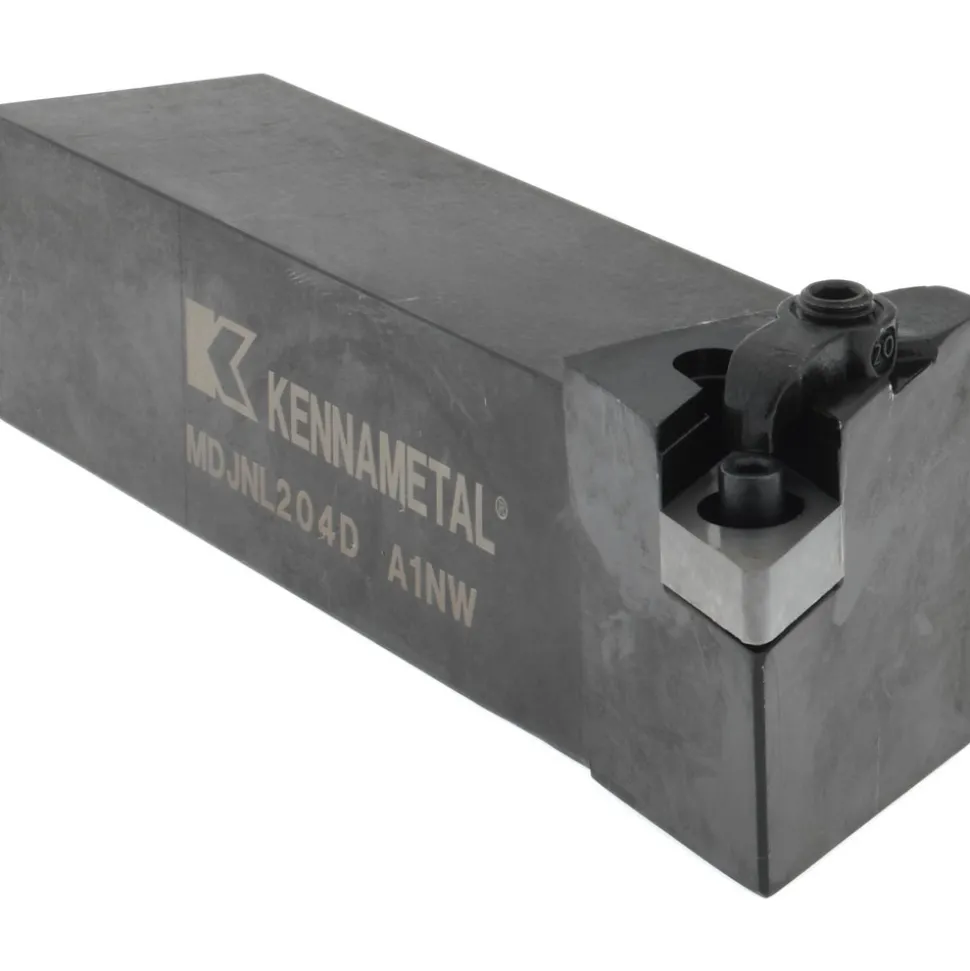

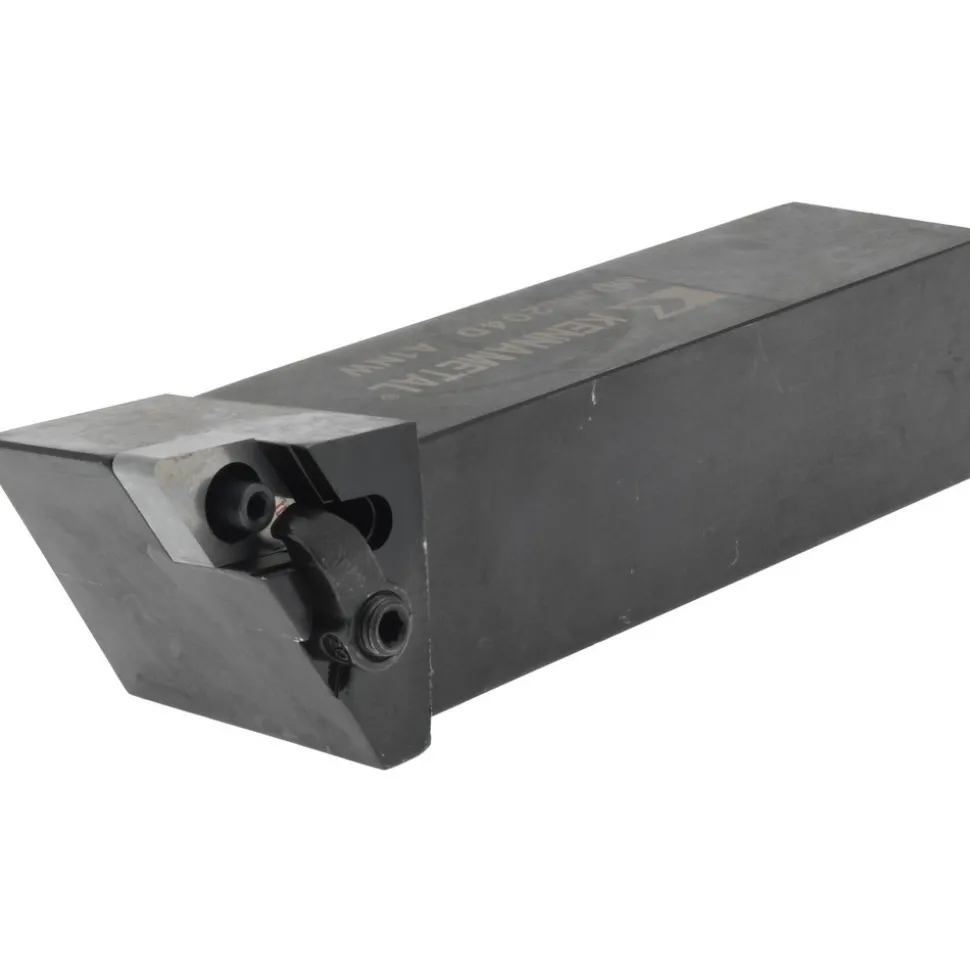

Indexable Turning Toolholder: Clamp & Screw

Original price was: 231,00 $.Current price is: 120,89 $.

Specifications

Toolholder Style: MDJN	Hand of Holder: Left Hand
Insert Compatibility: DN..43.	Insert Holding Method: Screw; Clamp
Shank Width (Inch): 1-1/4	Shank Height (Inch): 1-1/4
Overall Length (Decimal Inch): 6.0000	Shank Height (mm): 31.75
Coolant Through: No	Rake: Negative
Multi-use Tool: No	Shank Width (Decimal Inch): 1.2500
Shank Height (Decimal Inch): 1.2500	Series: Kenloc
Overall Length (Inch): 6	Head Length (Decimal Inch): 1.2400
Head Length (mm): 31.50	Back of Bar to Cutting Edge (Decimal Inch): 1.5000
Back of Bar to Cutting Edge (mm): 38.10	Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2	Toolholder Material: Steel
Complete Insert Compatibility: DN.. 432	UNSPSC Code: 23153308
Country of Origin: UNITED STATES
Toolholder Style: MDJN
Hand of Holder: Left Hand
Insert Compatibility: DN..43.
Insert Holding Method: Screw; Clamp
Shank Width (Inch): 1-1/4
Shank Height (Inch): 1-1/4
Overall Length (Decimal Inch): 6.0000
Shank Height (mm): 31.75
Coolant Through: No
Rake: Negative
Multi-use Tool: No
Shank Width (Decimal Inch): 1.2500
Shank Height (Decimal Inch): 1.2500
Series: Kenloc
Overall Length (Inch): 6
Head Length (Decimal Inch): 1.2400
Head Length (mm): 31.50
Back of Bar to Cutting Edge (Decimal Inch): 1.5000
Back of Bar to Cutting Edge (mm): 38.10
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2
Toolholder Material: Steel
Complete Insert Compatibility: DN.. 432
UNSPSC Code: 23153308
Country of Origin: UNITED STATES
