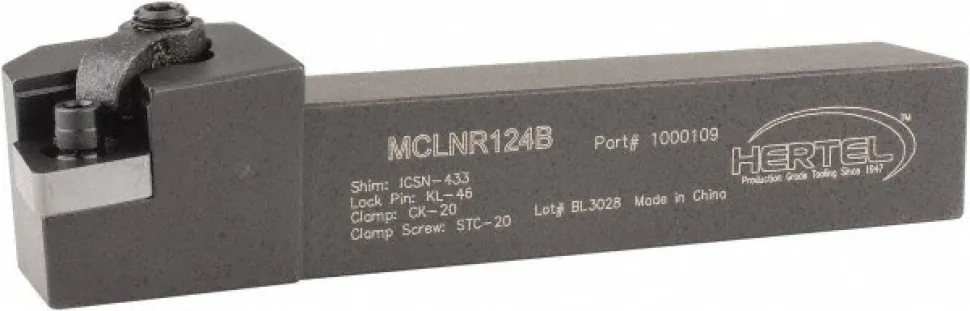

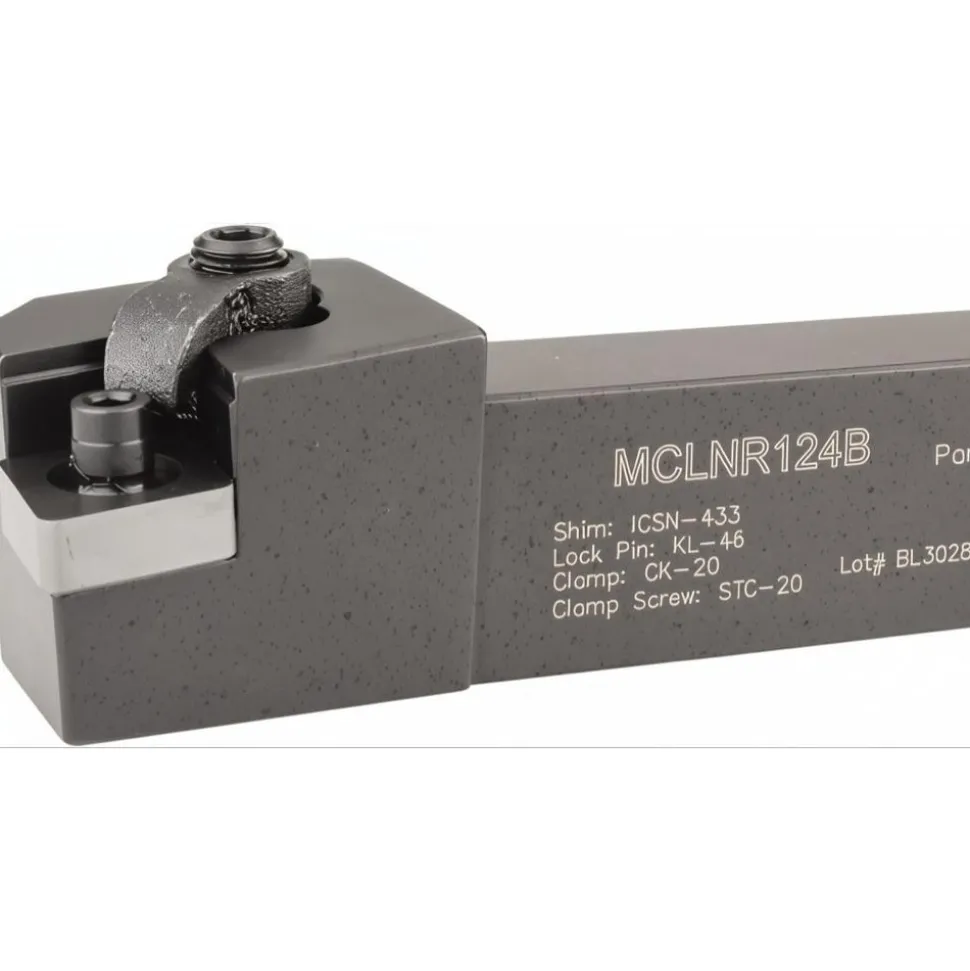

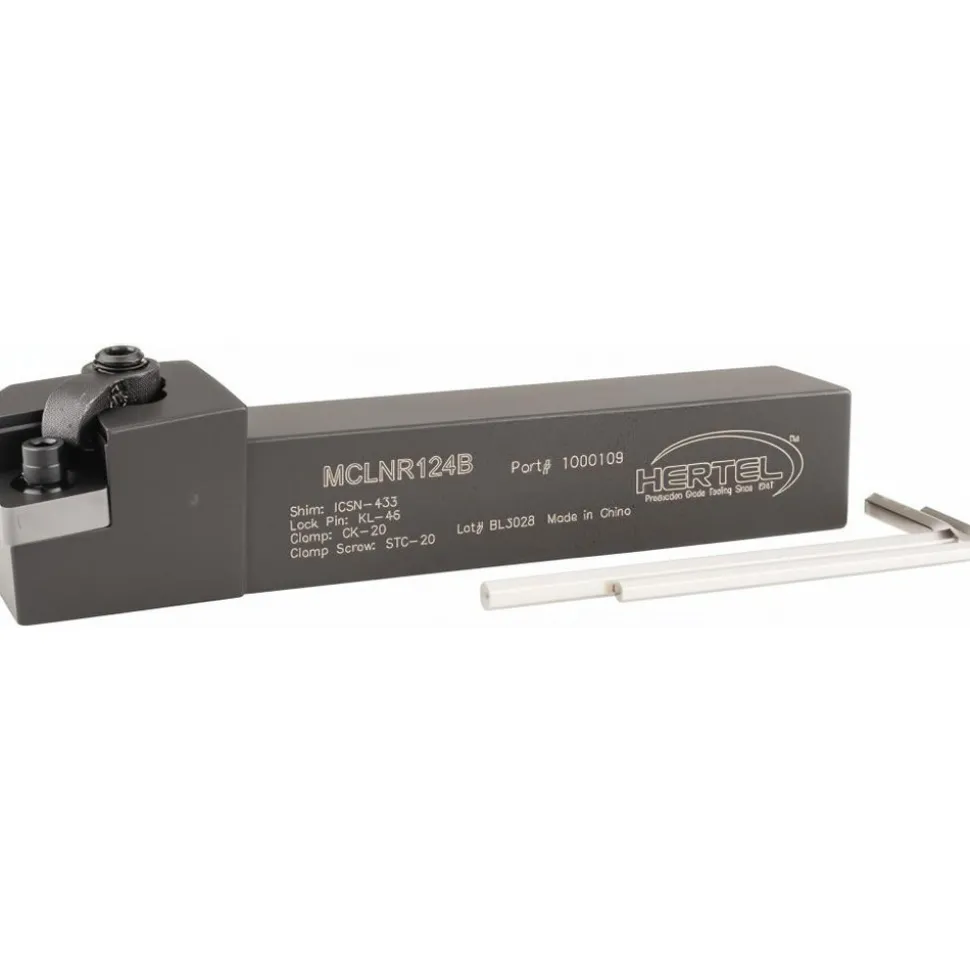

Indexable Turning Toolholder: MCLNR & L124B, Clamp & Screw
Original price was: 204,00 $.130,89 $Current price is: 130,89 $.
Specifications
| Toolholder Style: MCLN | Hand of Holder: Right Hand |
| Insert Compatibility: CN..43. | Insert Holding Method: Screw; Clamp |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Coolant Through: No |
| Rake: Negative | Multi-use Tool: No |
| Shank Width (Decimal Inch): 0.7500 | Shank Height (Decimal Inch): 0.7500 |
| Series: Multi-Option | Overall Length (Inch): 4-1/2 |
| Head Length (Decimal Inch): 1.2000 | Back of Bar to Cutting Edge (Inch): 1 |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | Insert Inscribed Circle (Decimal Inch): 0.3750 |
| Insert Inscribed Circle (Inch): 3/8 | Toolholder Material: Steel |
| Complete Insert Compatibility: CN.. 322 | UNSPSC Code: 23153308 |
| Manufacturers Catalog Number: MCLNR; L124B | Country of Origin: VARIOUS |
| Toolholder Style: MCLN | |
| Hand of Holder: Right Hand | |
| Insert Compatibility: CN..43. | |
| Insert Holding Method: Screw; Clamp | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Coolant Through: No | |
| Rake: Negative | |
| Multi-use Tool: No | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: Multi-Option | |
| Overall Length (Inch): 4-1/2 | |
| Head Length (Decimal Inch): 1.2000 | |
| Back of Bar to Cutting Edge (Inch): 1 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Insert Inscribed Circle (Decimal Inch): 0.3750 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Toolholder Material: Steel | |
| Complete Insert Compatibility: CN.. 322 | |
| UNSPSC Code: 23153308 | |
| Manufacturers Catalog Number: MCLNR; L124B | |
| Country of Origin: VARIOUS |
| MSC# | 05697446 |
| Mfr# | 1000109 |
| Big Book# | 832 |
