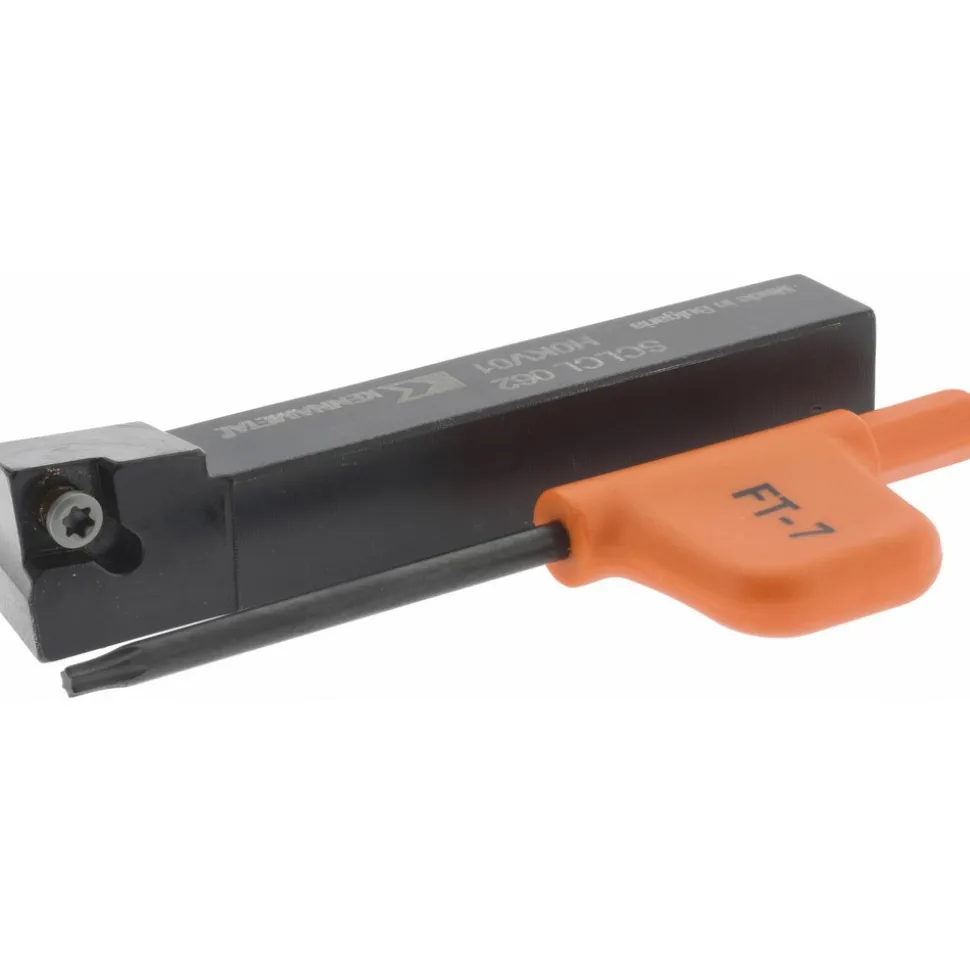

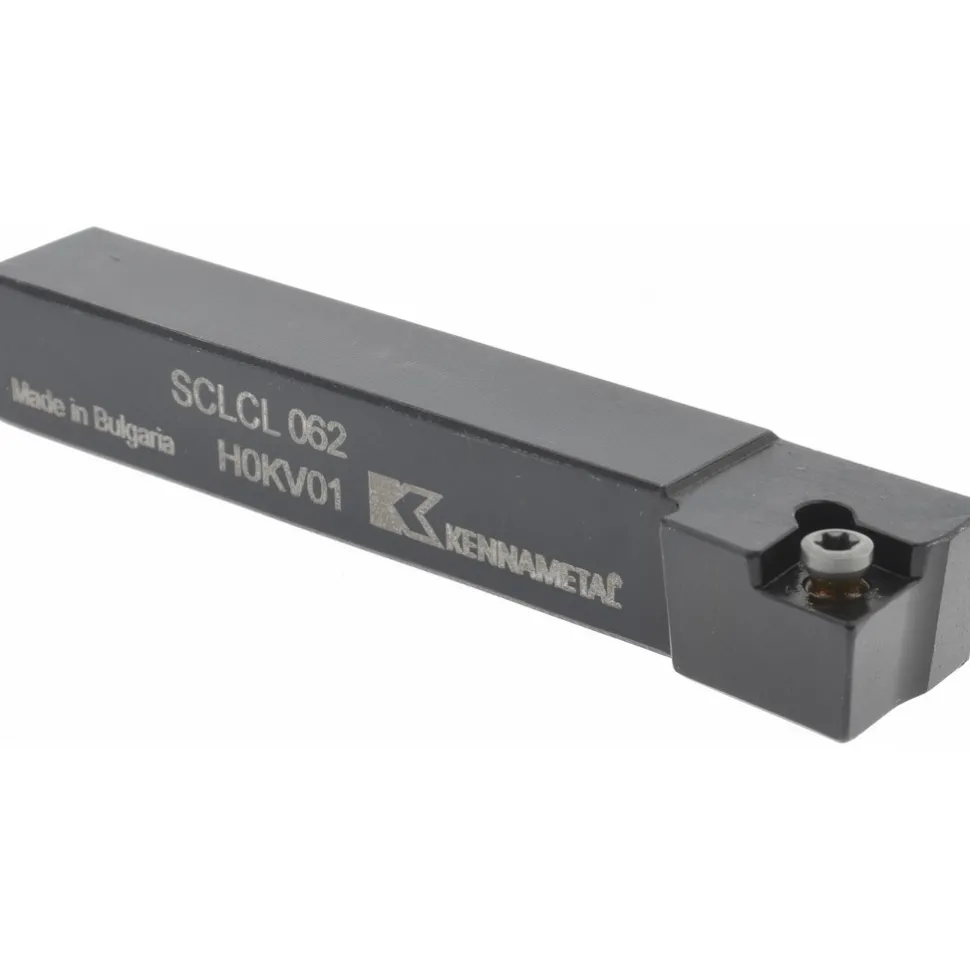

Indexable Turning Toolholder: Screw

73,99 $

Specifications

Toolholder Style: SCLC	Hand of Holder: Left Hand
Insert Compatibility: CC..21.5.	Insert Holding Method: Screw
Shank Width (Inch): 3/8	Shank Height (Inch): 3/8
Overall Length (Decimal Inch): 2.5000	Shank Height (mm): 9.53
Coolant Through: No	Rake: Neutral
Rake Angle: 0	Multi-use Tool: No
Shank Width (Decimal Inch): 0.3750	Shank Height (Decimal Inch): 0.3800
Series: Screw-On	Overall Length (Inch): 2-1/2
Head Length (Decimal Inch): 0.5000	Back of Bar to Cutting Edge (Inch): 1/2
Back of Bar to Cutting Edge (Decimal Inch): 0.5000	Insert Inscribed Circle (Decimal Inch): 0.2500
Insert Inscribed Circle (Inch): 1/4	Toolholder Material: Steel
Complete Insert Compatibility: CC.. 2151	Coating Classification: Kennametal
UNSPSC Code: 23153308	Country of Origin: Bulgaria
Toolholder Style: SCLC
Hand of Holder: Left Hand
Insert Compatibility: CC..21.5.
Insert Holding Method: Screw
Shank Width (Inch): 3/8
Shank Height (Inch): 3/8
Overall Length (Decimal Inch): 2.5000
Shank Height (mm): 9.53
Coolant Through: No
Rake: Neutral
Rake Angle: 0
Multi-use Tool: No
Shank Width (Decimal Inch): 0.3750
Shank Height (Decimal Inch): 0.3800
Series: Screw-On
Overall Length (Inch): 2-1/2
Head Length (Decimal Inch): 0.5000
Back of Bar to Cutting Edge (Inch): 1/2
Back of Bar to Cutting Edge (Decimal Inch): 0.5000
Insert Inscribed Circle (Decimal Inch): 0.2500
Insert Inscribed Circle (Inch): 1/4
Toolholder Material: Steel
Complete Insert Compatibility: CC.. 2151
Coating Classification: Kennametal
UNSPSC Code: 23153308
Country of Origin: Bulgaria
