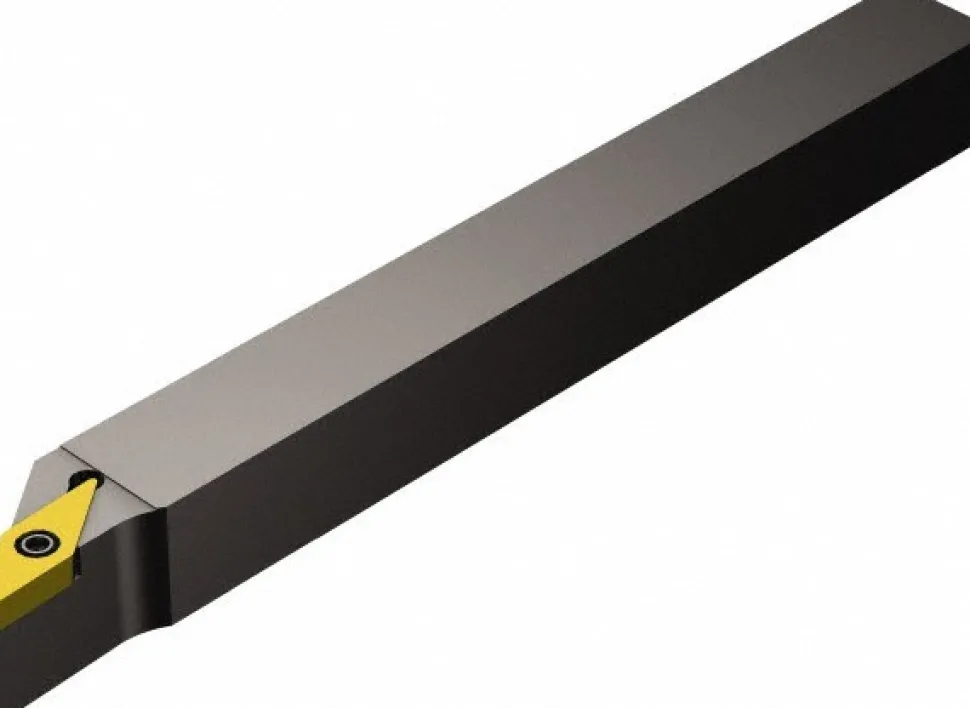

Indexable Turning Toolholder: Screw

128,89 $

SKU: SKUv6JfD9TDl3 Categories: Indexable Cutting Tools, Indexable Turning & Boring, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

Toolholder Style: SVJBR	Hand of Holder: Right Hand
Insert Compatibility: VBMT 332	Insert Holding Method: Screw
Shank Width (Inch): 1/2	Shank Height (Inch): 1/2
Overall Length (Decimal Inch): 5.0000	Shank Width (mm): 12.70
Shank Height (mm): 12.70	Rake: Neutral
Rake Angle: 0	Multi-use Tool: Yes
Shank Width (Decimal Inch): 0.5000	Shank Height (Decimal Inch): 0.5000
Series: CoroTurn® 107	Overall Length (Inch): 5
Cutting Tool Application: Facing	Head Length (Decimal Inch): 1.6100
Head Length (mm): 40.89	Back of Bar to Cutting Edge (Inch): 5
Back of Bar to Cutting Edge (Decimal Inch): 5.0000	Back of Bar to Cutting Edge (mm): 127.00
Insert Inscribed Circle (Decimal Inch): 0.3750	Insert Inscribed Circle (Inch): 3/8
Insert Width (Inch): 3/8	Insert Width (Decimal Inch): 0.3750
Toolholder Material: Steel	UNSPSC Code: 23153308
Country of Origin: India
Toolholder Style: SVJBR
Hand of Holder: Right Hand
Insert Compatibility: VBMT 332

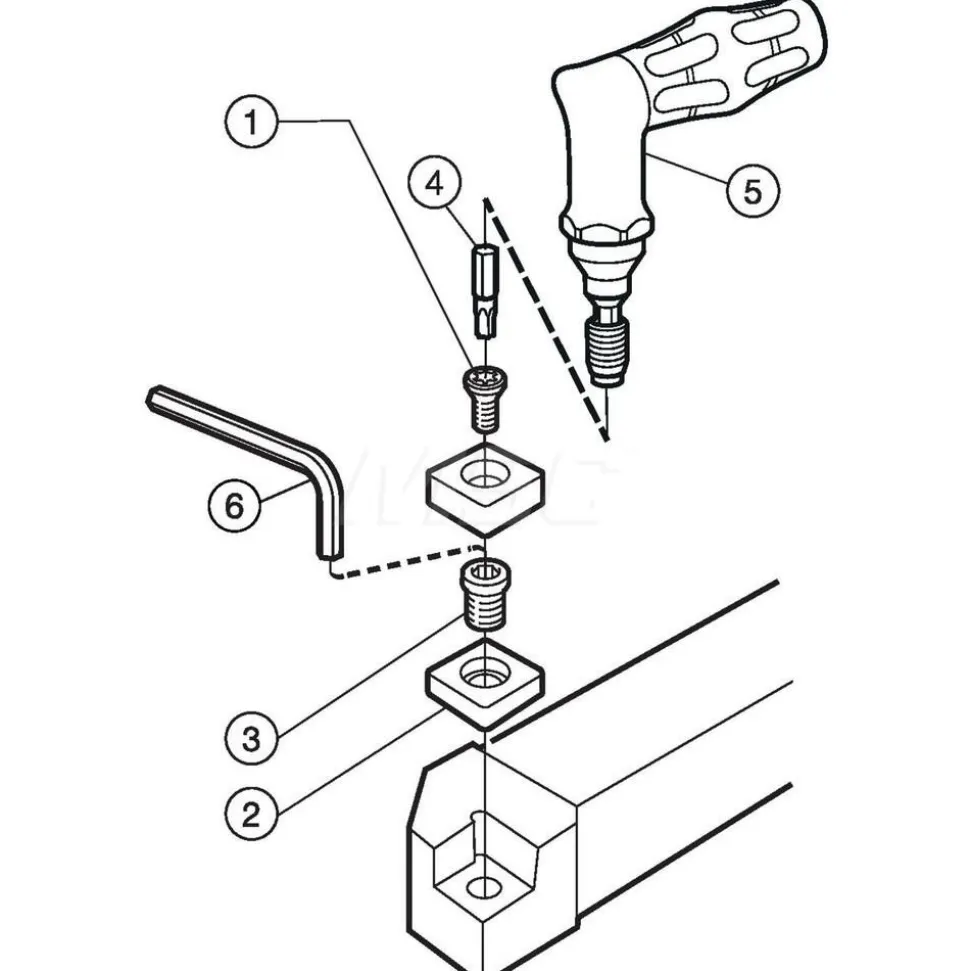

Insert Holding Method: Screw
Shank Width (Inch): 1/2
Shank Height (Inch): 1/2
Overall Length (Decimal Inch): 5.0000
Shank Width (mm): 12.70
Shank Height (mm): 12.70
Rake: Neutral
Rake Angle: 0
Multi-use Tool: Yes
Shank Width (Decimal Inch): 0.5000
Shank Height (Decimal Inch): 0.5000
Series: CoroTurn® 107
Overall Length (Inch): 5

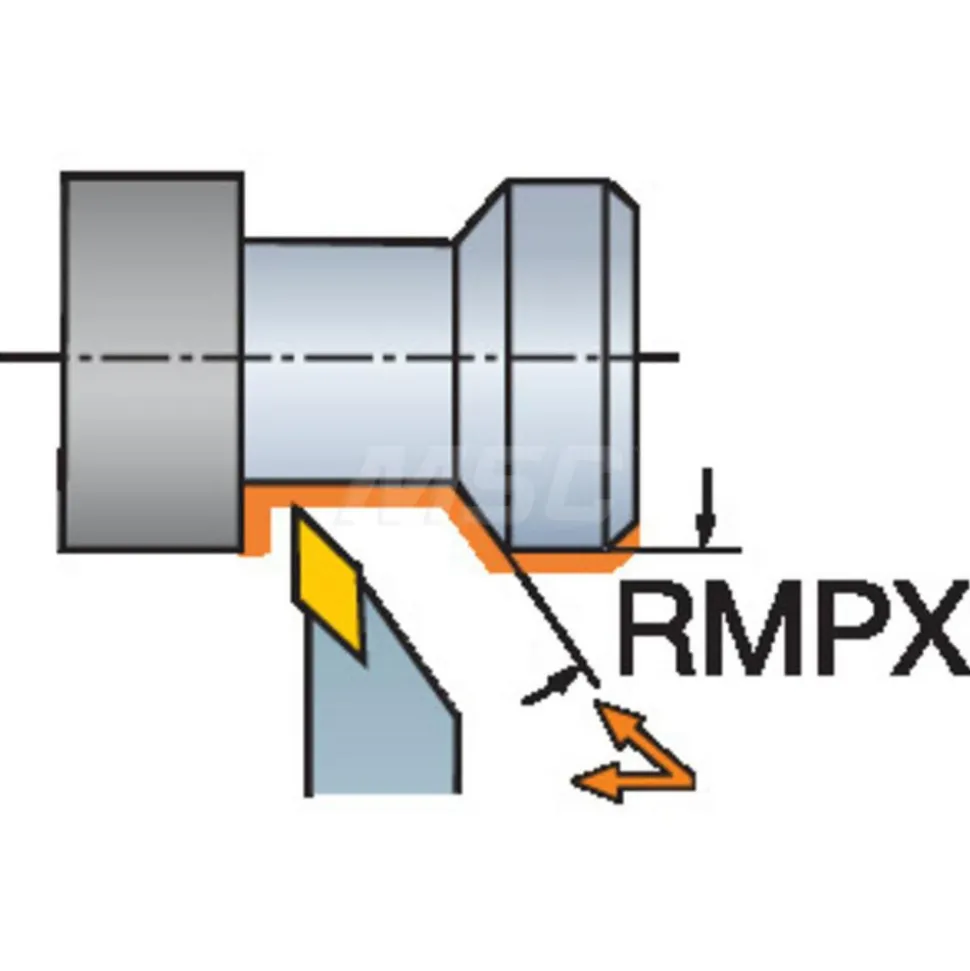

Cutting Tool Application: Facing
Head Length (Decimal Inch): 1.6100
Head Length (mm): 40.89
Back of Bar to Cutting Edge (Inch): 5
Back of Bar to Cutting Edge (Decimal Inch): 5.0000
Back of Bar to Cutting Edge (mm): 127.00
Insert Inscribed Circle (Decimal Inch): 0.3750
Insert Inscribed Circle (Inch): 3/8
Insert Width (Inch): 3/8
Insert Width (Decimal Inch): 0.3750
Toolholder Material: Steel
UNSPSC Code: 23153308
Country of Origin: India
