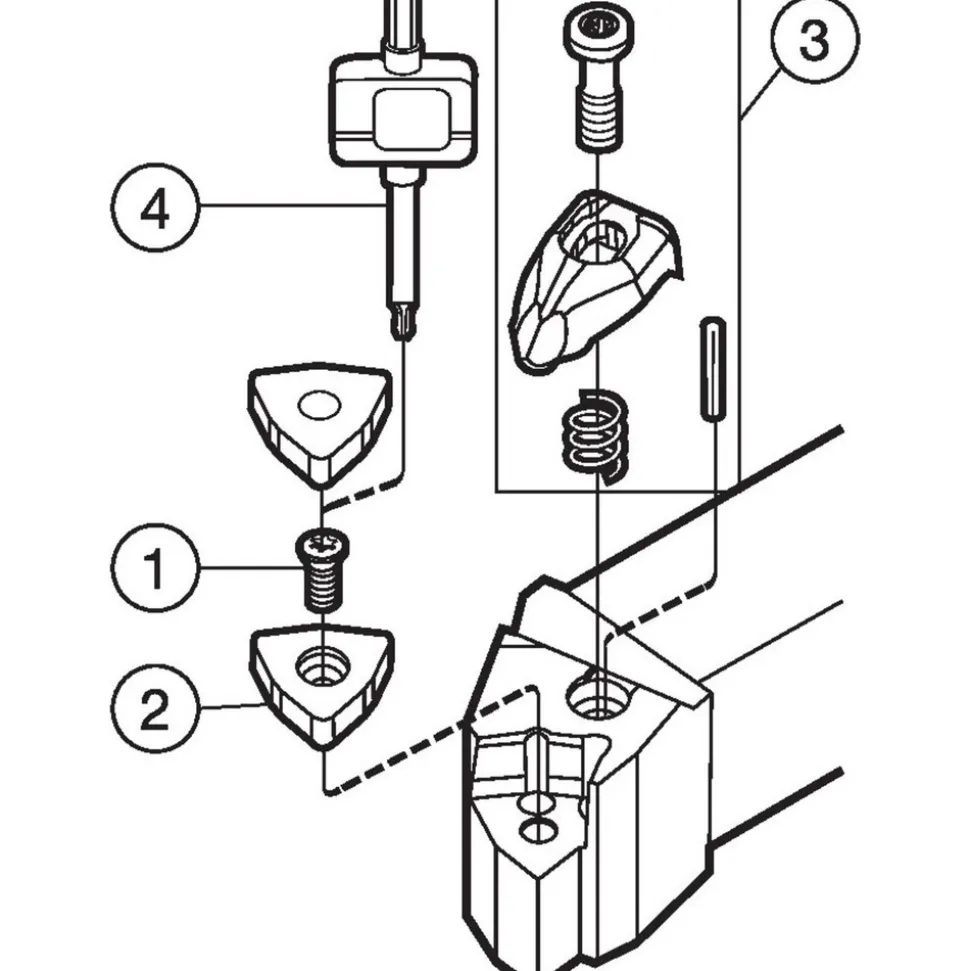

Indexable Turning Toolholder: Wedge

130,99 $

SKU: SKUWKjpj4Yny2 Categories: Indexable Cutting Tools, Indexable Turning & Boring, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

Toolholder Style: DVTNR	Hand of Holder: Right Hand
Insert Compatibility: VNMG 332	Insert Holding Method: Wedge
Shank Width (Inch): 1	Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000	Shank Width (mm): 25.40
Shank Height (mm): 25.40	Rake: Negative
Rake Angle: -4	Multi-use Tool: Yes
Shank Width (Decimal Inch): 1.0000	Shank Height (Decimal Inch): 1.0000
Series: T-Max® P	Overall Length (Inch): 6
Cutting Tool Application: Facing	Head Length (Decimal Inch): 1.5400
Head Length (mm): 39.12	Back of Bar to Cutting Edge (Inch): 6
Back of Bar to Cutting Edge (Decimal Inch): 6.0000	Back of Bar to Cutting Edge (mm): 152.40
Insert Inscribed Circle (Decimal Inch): 0.3750	Insert Inscribed Circle (Inch): 3/8
Insert Width (Inch): 3/8	Insert Width (Decimal Inch): 0.3750
Toolholder Material: Steel	UNSPSC Code: 23153308
Country of Origin: VARIOUS
Toolholder Style: DVTNR
Hand of Holder: Right Hand
Insert Compatibility: VNMG 332
Insert Holding Method: Wedge
Shank Width (Inch): 1
Shank Height (Inch): 1
Overall Length (Decimal Inch): 6.0000
Shank Width (mm): 25.40
Shank Height (mm): 25.40
Rake: Negative
Rake Angle: -4
Multi-use Tool: Yes
Shank Width (Decimal Inch): 1.0000
Shank Height (Decimal Inch): 1.0000
Series: T-Max® P
Overall Length (Inch): 6
Cutting Tool Application: Facing
Head Length (Decimal Inch): 1.5400
Head Length (mm): 39.12
Back of Bar to Cutting Edge (Inch): 6
Back of Bar to Cutting Edge (Decimal Inch): 6.0000
Back of Bar to Cutting Edge (mm): 152.40
Insert Inscribed Circle (Decimal Inch): 0.3750
Insert Inscribed Circle (Inch): 3/8
Insert Width (Inch): 3/8
Insert Width (Decimal Inch): 0.3750
Toolholder Material: Steel
UNSPSC Code: 23153308
Country of Origin: VARIOUS
