Indexable Turning Toolholder: Wedge

115,99 $

SKU: SKUGOe90qg6Rb Categories: Indexable Cutting Tools, Indexable Turning & Boring, Shop All Products Tag: Sandvik Coromant Brand: Sandvik Coromant

Description
Reviews (0)

Specifications

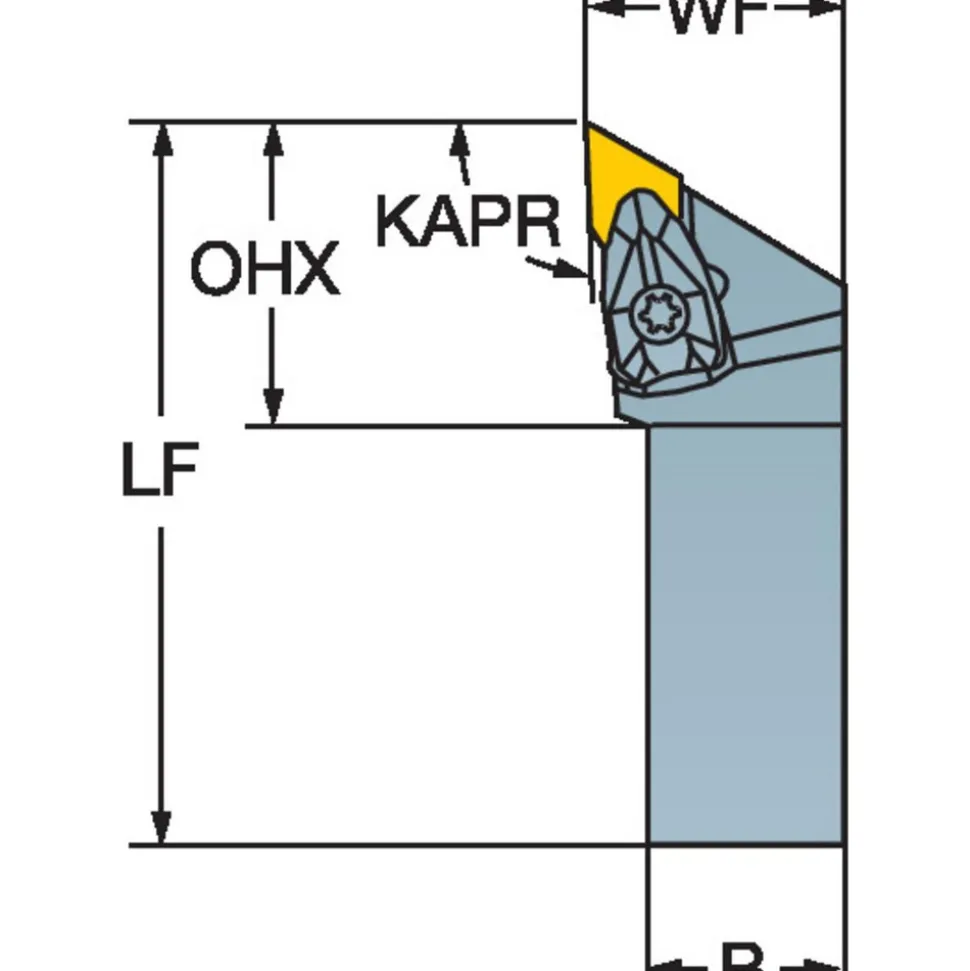

Toolholder Style: DDJNR	Hand of Holder: Right Hand
Insert Compatibility: DNMG 432	Insert Holding Method: Wedge
Shank Width (Inch): 3/4	Shank Height (Inch): 3/4
Overall Length (Decimal Inch): 4.5000	Shank Width (mm): 19.05
Shank Height (mm): 19.05	Rake: Negative
Rake Angle: -6	Multi-use Tool: Yes
Shank Width (Decimal Inch): 0.7500	Shank Height (Decimal Inch): 0.7500
Series: T-Max® P	Overall Length (Inch): 4-1/2

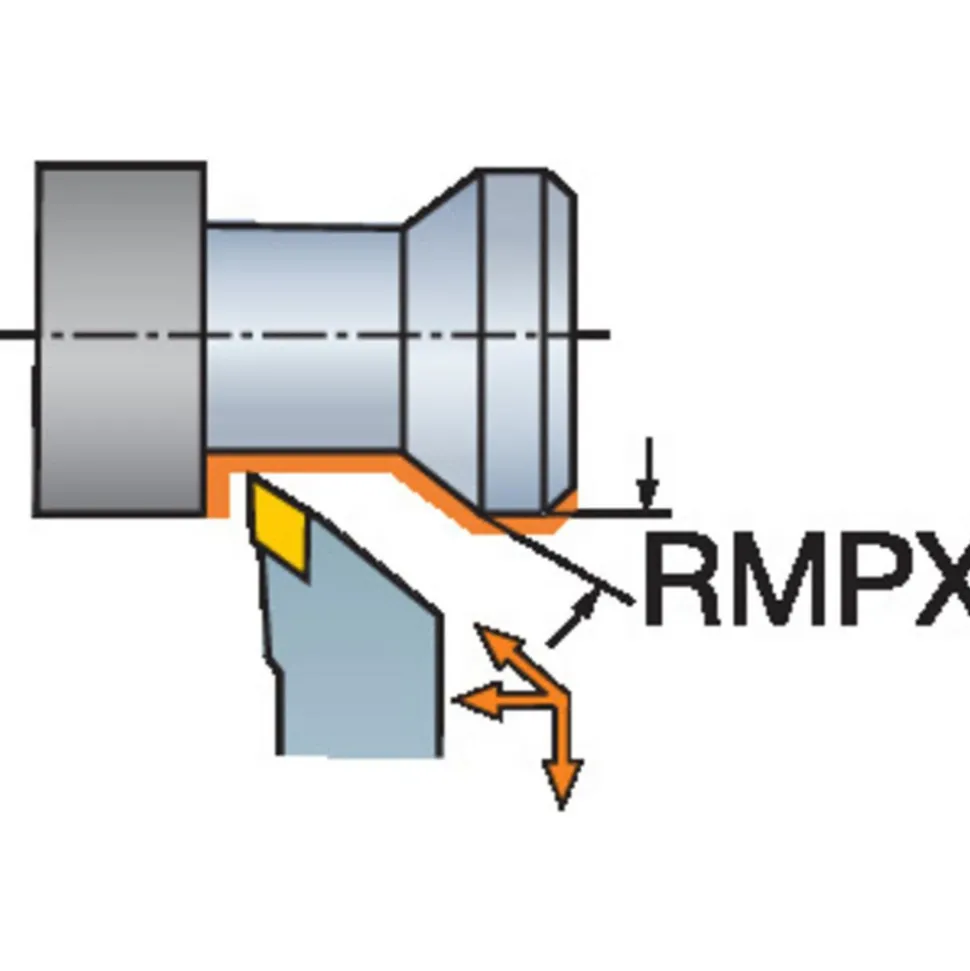

Cutting Tool Application: Facing	Head Length (Decimal Inch): 1.4500
Head Length (mm): 36.83	Back of Bar to Cutting Edge (Inch): 4-1/2
Back of Bar to Cutting Edge (Decimal Inch): 4.5000	Back of Bar to Cutting Edge (mm): 114.30
Insert Inscribed Circle (Decimal Inch): 0.5000	Insert Inscribed Circle (Inch): 1/2
Insert Width (Inch): 1/2	Insert Width (Decimal Inch): 0.5000
Toolholder Material: Steel	UNSPSC Code: 23153308
Country of Origin: India
Toolholder Style: DDJNR
Hand of Holder: Right Hand
Insert Compatibility: DNMG 432
Insert Holding Method: Wedge
Shank Width (Inch): 3/4
Shank Height (Inch): 3/4
Overall Length (Decimal Inch): 4.5000
Shank Width (mm): 19.05
Shank Height (mm): 19.05
Rake: Negative
Rake Angle: -6
Multi-use Tool: Yes
Shank Width (Decimal Inch): 0.7500
Shank Height (Decimal Inch): 0.7500
Series: T-Max® P
Overall Length (Inch): 4-1/2
Cutting Tool Application: Facing
Head Length (Decimal Inch): 1.4500
Head Length (mm): 36.83
Back of Bar to Cutting Edge (Inch): 4-1/2
Back of Bar to Cutting Edge (Decimal Inch): 4.5000
Back of Bar to Cutting Edge (mm): 114.30
Insert Inscribed Circle (Decimal Inch): 0.5000
Insert Inscribed Circle (Inch): 1/2
Insert Width (Inch): 1/2
Insert Width (Decimal Inch): 0.5000
Toolholder Material: Steel
UNSPSC Code: 23153308
Country of Origin: India
