Indexable Turning Toolholder: Wedge
Original price was: 172,00 $.115,99 $Current price is: 115,99 $.

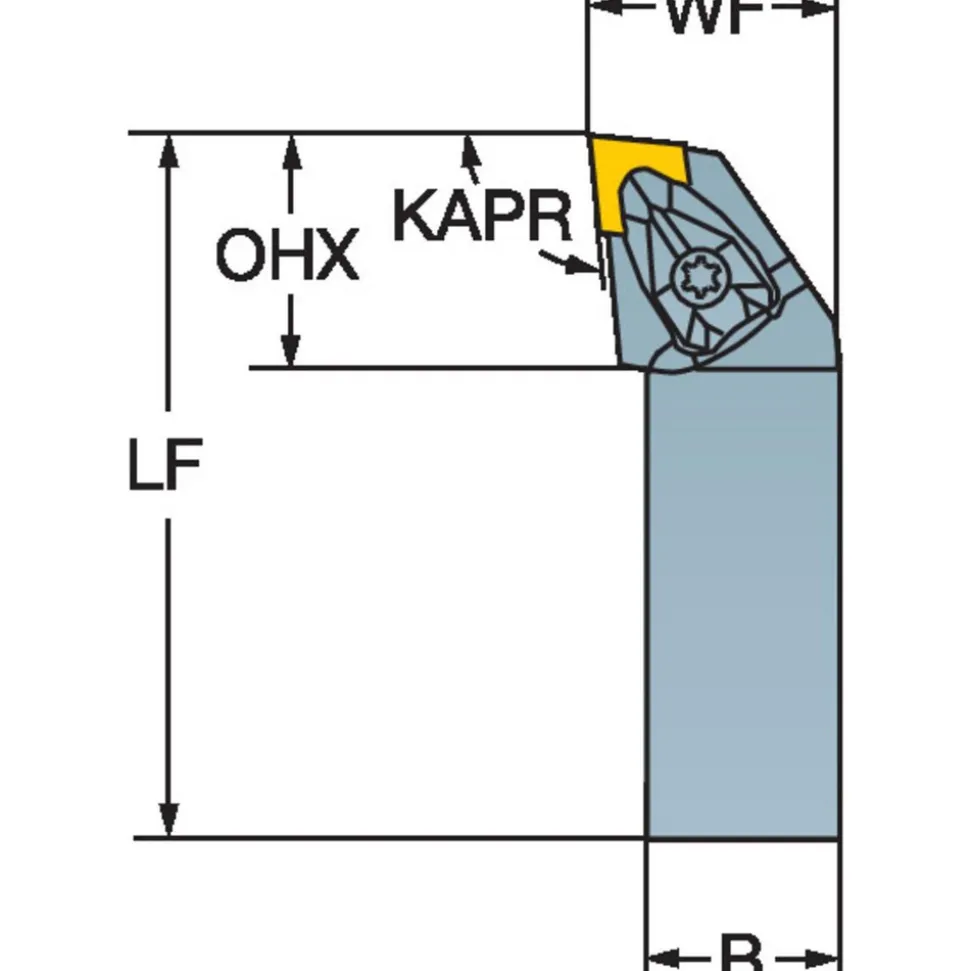

Specifications
| Toolholder Style: DCLNR | Hand of Holder: Left Hand |

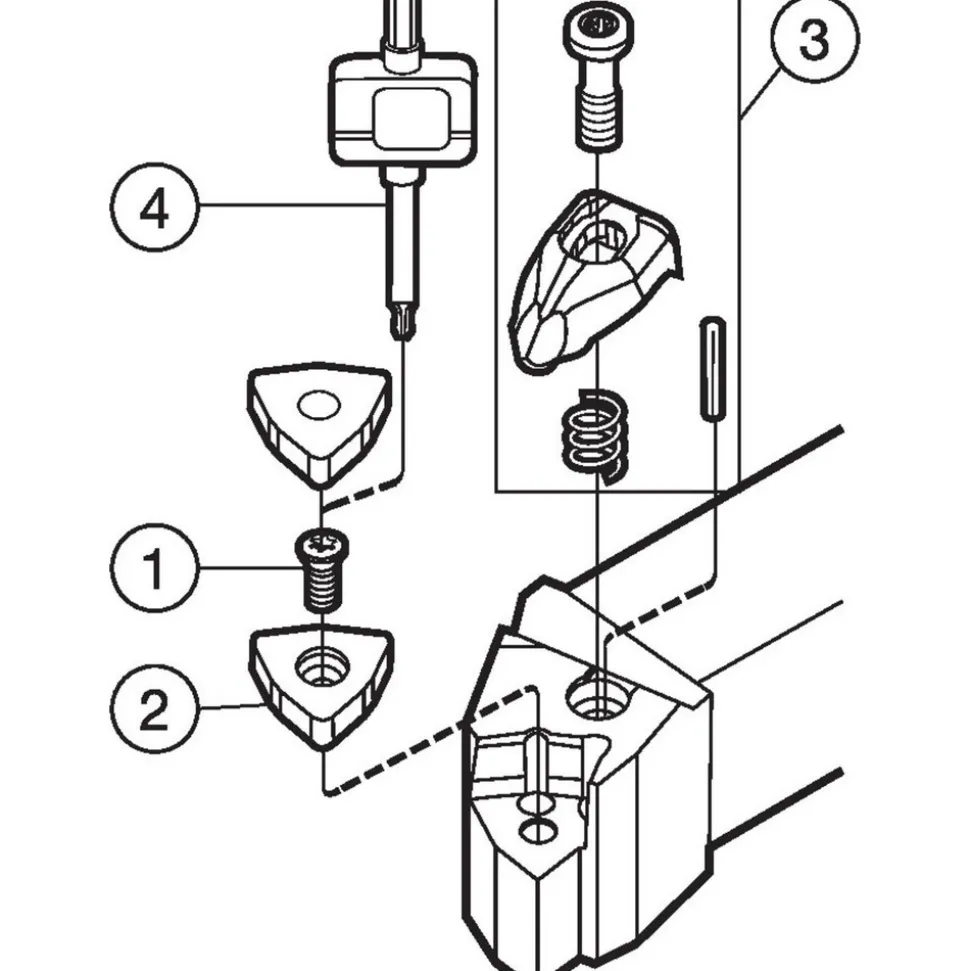

| Insert Compatibility: CNMG 432 | Insert Holding Method: Wedge |
| Shank Width (Inch): 3/4 | Shank Height (Inch): 3/4 |
| Overall Length (Decimal Inch): 4.5000 | Shank Width (mm): 19.05 |
| Shank Height (mm): 19.05 | Rake: Negative |
| Rake Angle: -6 | Multi-use Tool: Yes |
| Shank Width (Decimal Inch): 0.7500 | Shank Height (Decimal Inch): 0.7500 |
| Series: T-Max® P | Overall Length (Inch): 4-1/2 |

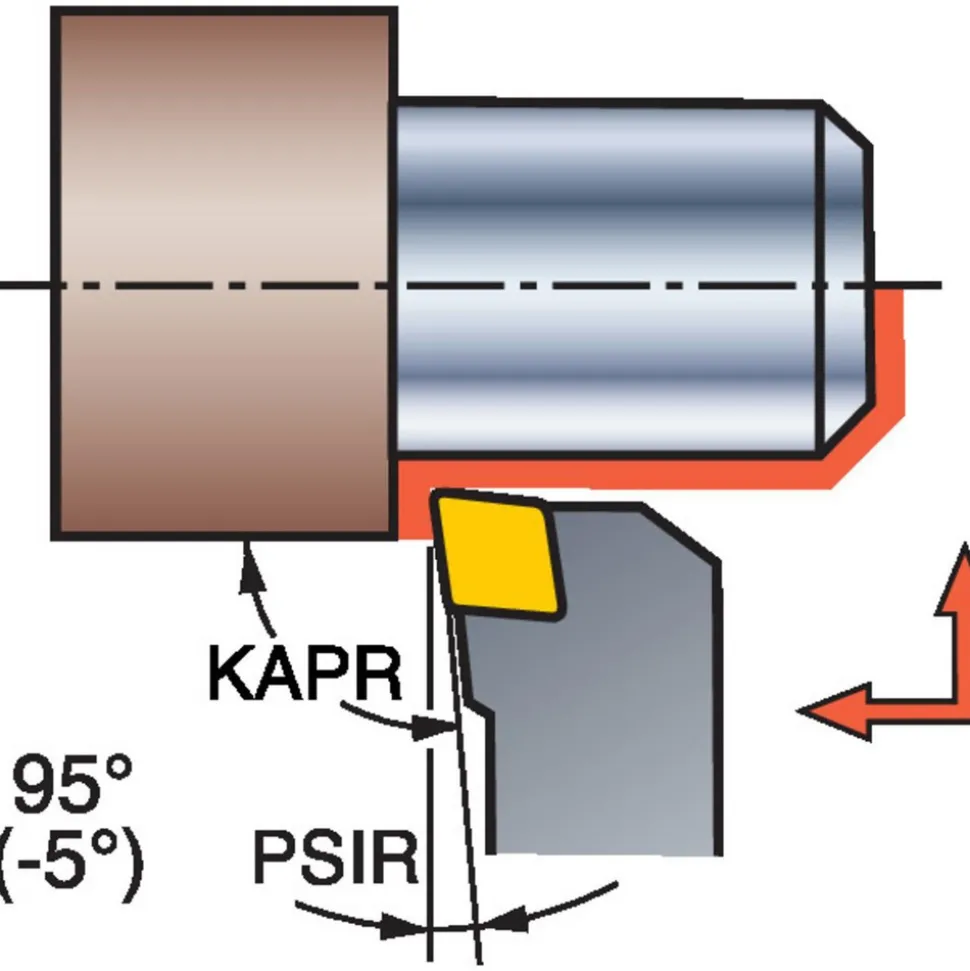

| Cutting Tool Application: Facing | Head Length (Decimal Inch): 1.2598 |
| Head Length (mm): 32.00 | Back of Bar to Cutting Edge (Inch): 4-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch): 4.5000 | Back of Bar to Cutting Edge (mm): 114.30 |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | Insert Inscribed Circle (Inch): 1/2 |
| Insert Width (Inch): 1/2 | Insert Width (Decimal Inch): 0.5000 |
| Toolholder Material: Steel | UNSPSC Code: 23153308 |
| Country of Origin: India | |
| Toolholder Style: DCLNR | |
| Hand of Holder: Left Hand | |
| Insert Compatibility: CNMG 432 | |
| Insert Holding Method: Wedge | |
| Shank Width (Inch): 3/4 | |
| Shank Height (Inch): 3/4 | |
| Overall Length (Decimal Inch): 4.5000 | |
| Shank Width (mm): 19.05 | |
| Shank Height (mm): 19.05 | |
| Rake: Negative | |
| Rake Angle: -6 | |
| Multi-use Tool: Yes | |
| Shank Width (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Series: T-Max® P | |
| Overall Length (Inch): 4-1/2 | |
| Cutting Tool Application: Facing | |
| Head Length (Decimal Inch): 1.2598 | |
| Head Length (mm): 32.00 | |
| Back of Bar to Cutting Edge (Inch): 4-1/2 | |
| Back of Bar to Cutting Edge (Decimal Inch): 4.5000 | |
| Back of Bar to Cutting Edge (mm): 114.30 | |
| Insert Inscribed Circle (Decimal Inch): 0.5000 | |
| Insert Inscribed Circle (Inch): 1/2 | |
| Insert Width (Inch): 1/2 | |
| Insert Width (Decimal Inch): 0.5000 | |
| Toolholder Material: Steel | |
| UNSPSC Code: 23153308 | |
| Country of Origin: India |
| MSC# | 51138428 |
| Mfr# | 5730591 |
