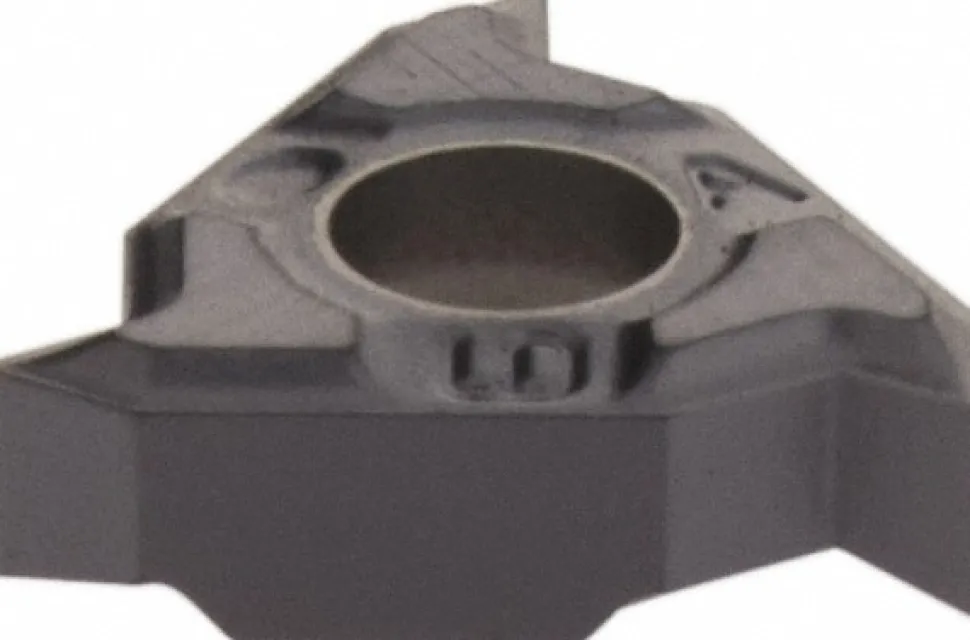

Laydown Threading Insert: 08IRM A 60 IC908, Carbide

25,99 $

Specifications

Insert Style: 08IR	Insert Size Code: 08
Insert Material: Carbide	Manufacturer Grade: IC908
Threads Per Inch: 48-16	Thread Type: Internal
Pitch (mm): 0.50-1.50	Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand	Chipbreaker: M
Series: ISCARTHREAD	Coating Process: PVD
Inscribed Circle (mm): 4.76	Inscribed Circle (Inch): 3/16
Corner Radius (mm): 0.05	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N	Iso Code: ISO 13399
Standards: ISO 13399	Thickness (Decimal Inch – 4 Decimals): 0.0790
Coating/Finish: TiAlN	UNSPSC Code: 23291804
Country of Origin: Israel
Insert Style: 08IR
Insert Size Code: 08
Insert Material: Carbide
Manufacturer Grade: IC908
Threads Per Inch: 48-16
Thread Type: Internal
Pitch (mm): 0.50-1.50
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Chipbreaker: M
Series: ISCARTHREAD
Coating Process: PVD
Inscribed Circle (mm): 4.76
Inscribed Circle (Inch): 3/16
Corner Radius (mm): 0.05
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
Iso Code: ISO 13399
Standards: ISO 13399
Thickness (Decimal Inch – 4 Decimals): 0.0790
Coating/Finish: TiAlN
UNSPSC Code: 23291804
Country of Origin: Israel
