Sale!

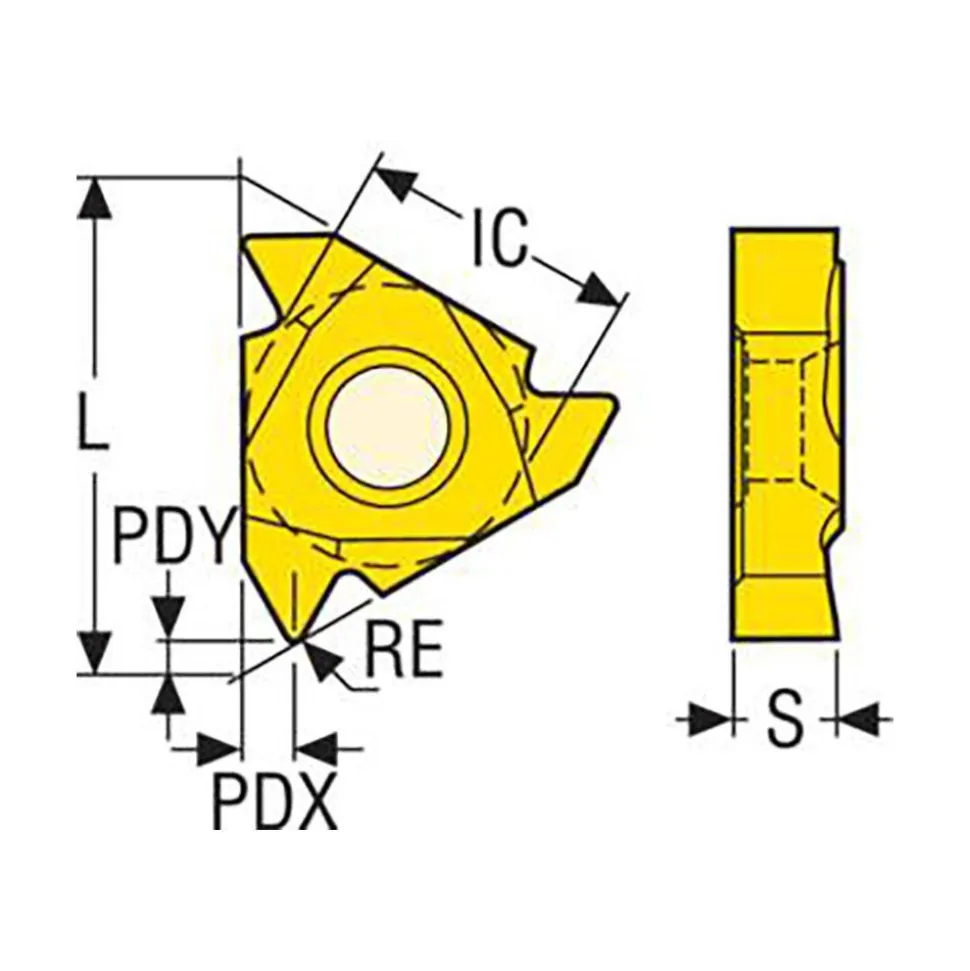

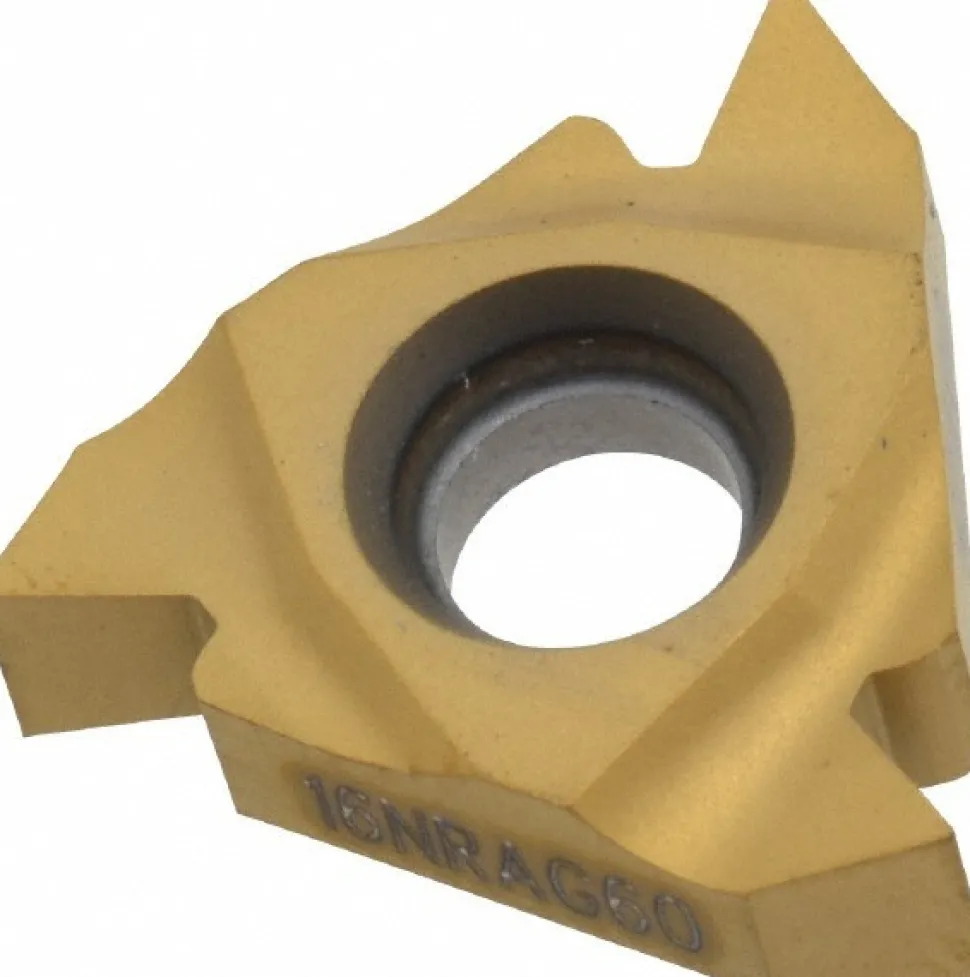

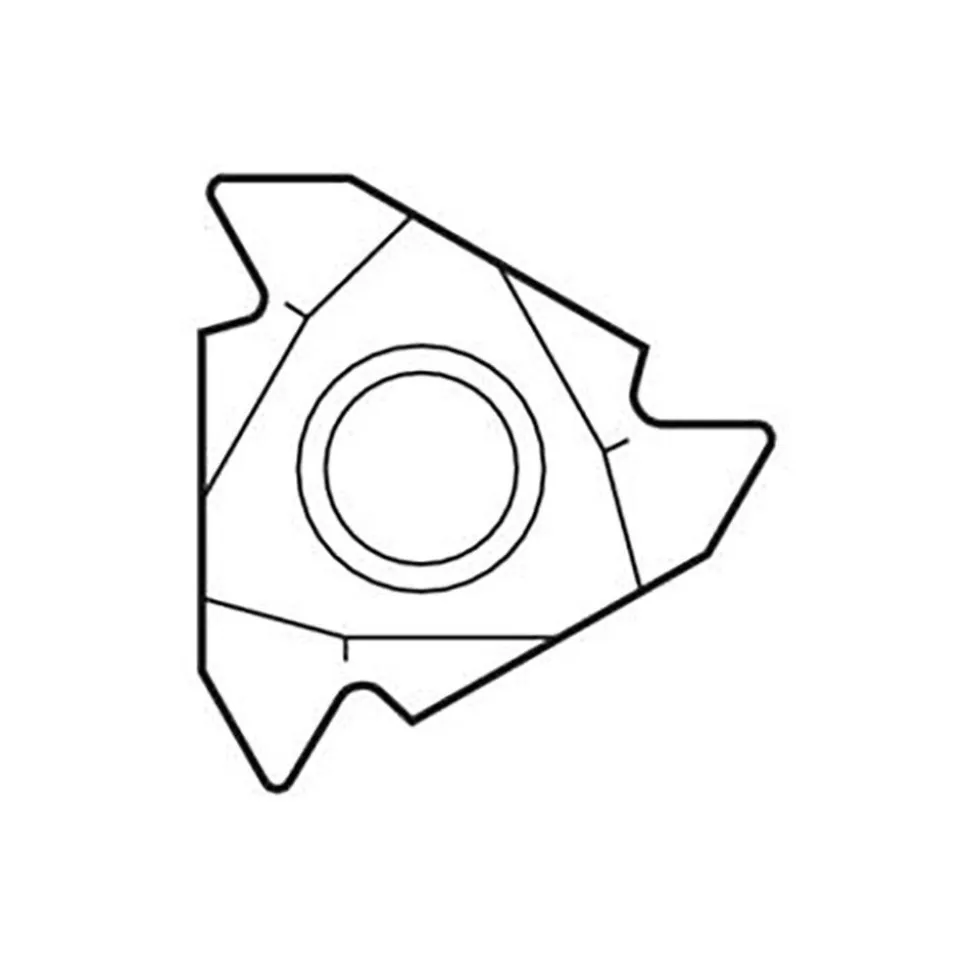

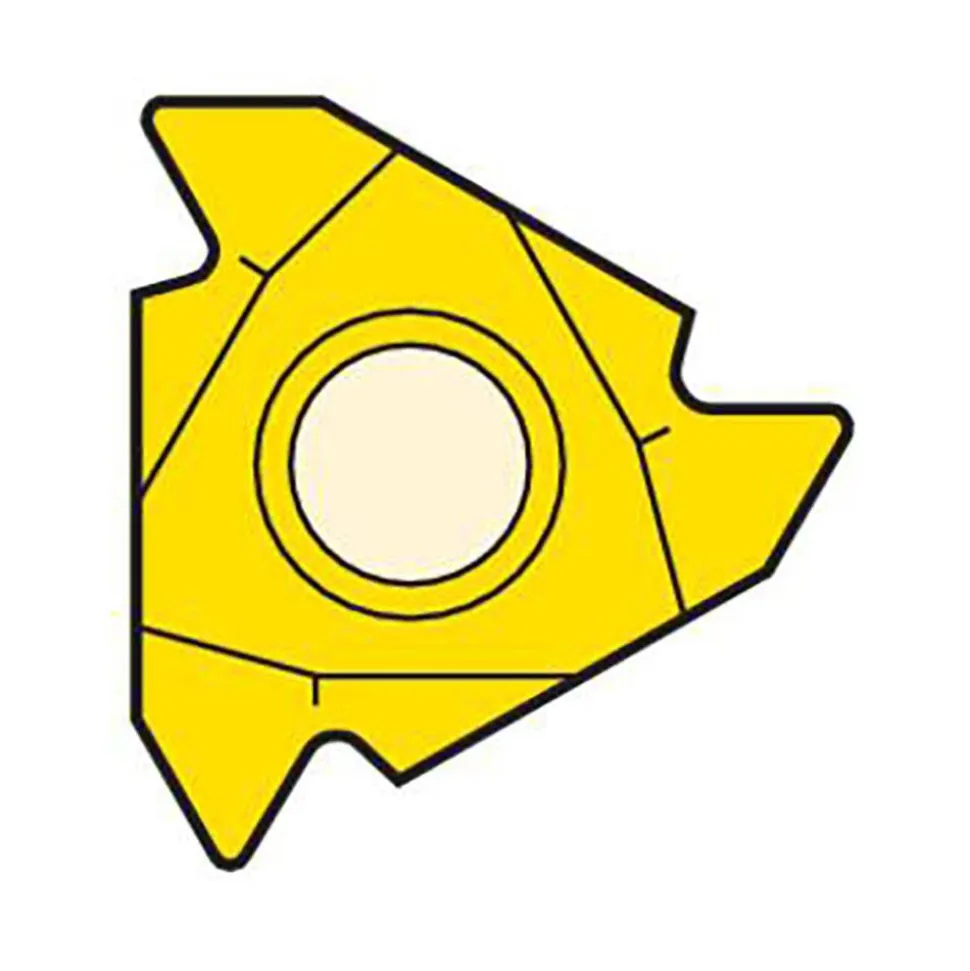

Laydown Threading Insert: 16NRAG60 CP500, Carbide

Original price was: 45,00 $.Current price is: 32,99 $.

Specifications

Insert Style: 16NR	Insert Material: Carbide
Manufacturer Grade: CP500	Threads Per Inch: 48-8
Thread Type: Internal	Pitch (mm): 0.50-3.00
Thread Standard: Partial Profile 60 Degree	Insert Hand: Right Hand
Included Angle: 60.00	Series: Snap-Tap
Coating Process: PVD	Inscribed Circle (Inch): 3/8
Corner Radius (Decimal Inch): 0.0030	Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; K; M	Standards: ISO
Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.043	Face of Insert to Tip Centerline (Decimal Inch): 0.059
Thickness (Decimal Inch – 4 Decimals): 0.1366	UNSPSC Code: 23291804
Country of Origin: India
Insert Style: 16NR
Insert Material: Carbide
Manufacturer Grade: CP500
Threads Per Inch: 48-8
Thread Type: Internal
Pitch (mm): 0.50-3.00
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Included Angle: 60.00
Series: Snap-Tap
Coating Process: PVD
Inscribed Circle (Inch): 3/8
Corner Radius (Decimal Inch): 0.0030
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; K; M
Standards: ISO
Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.043
Face of Insert to Tip Centerline (Decimal Inch): 0.059
Thickness (Decimal Inch – 4 Decimals): 0.1366
UNSPSC Code: 23291804
Country of Origin: India
