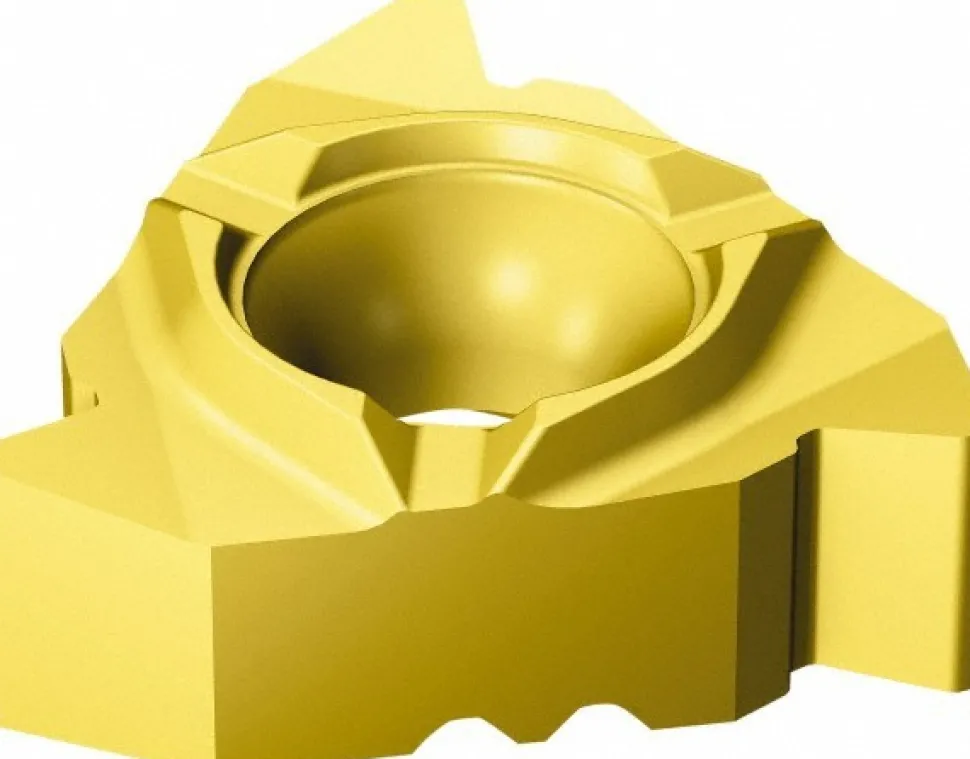

Laydown Threading Insert: 266LL16VM01A002M 1135, Carbide
33,89 $
Specifications
| Insert Style: 266 | Insert Size Code: 16 |
| Insert Material: Carbide | Manufacturer Grade: 1135 |
| Threads Per Inch: 8-16 | Thread Type: Internal |
| Pitch (mm): 1.50-3.00 | Thread Standard: 60 Deg V |
| Insert Hand: Left Hand | Thickness (Inch): 5/32 |
| Thickness (mm): 3.97 | Included Angle: 60.00 |
| Chipbreaker: A | Series: CoroThread 266 |

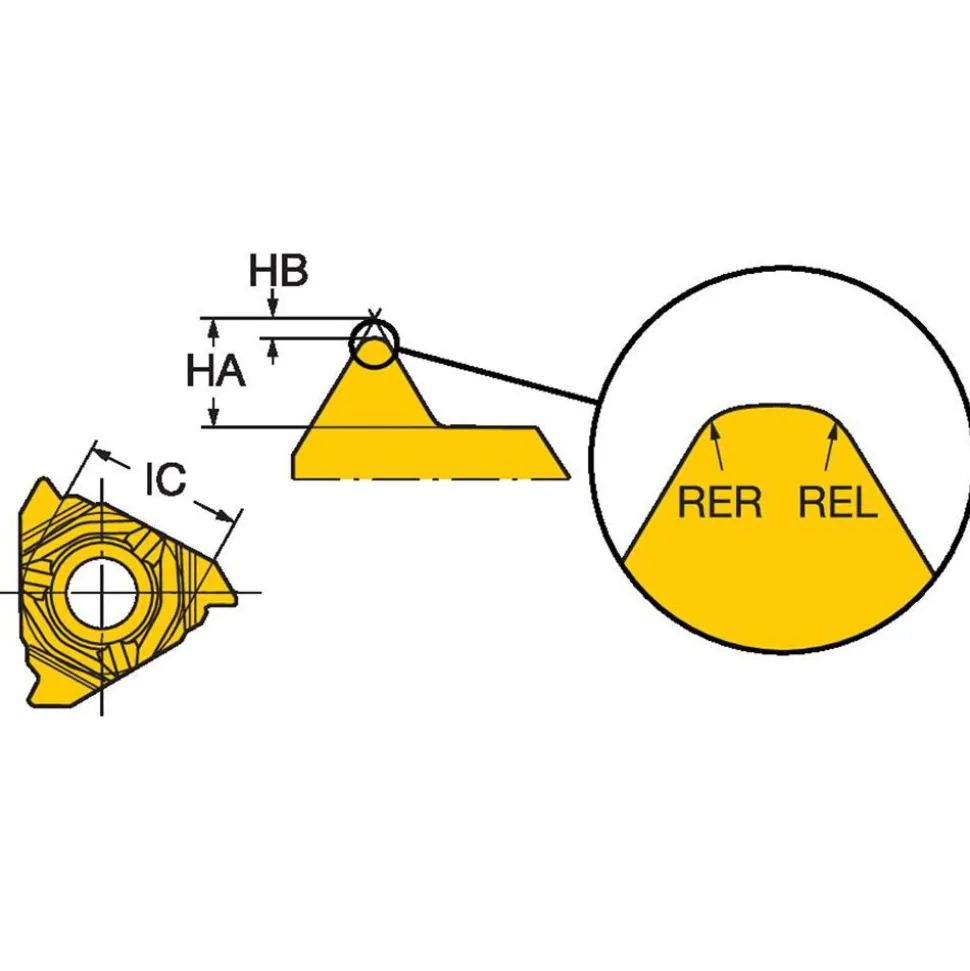

| Coating Process: PVD | Inscribed Circle (mm): 9.53 |
| Inscribed Circle (Inch): 3/8 | Corner Radius (Decimal Inch): 0.0035 |
| Corner Radius (mm): 0.09 | Hole Diameter (mm): 4.40 |
| Hole Diameter (Decimal Inch): 0.1732 | Number of Teeth Per Side: 1 |
| Manufacturers Catalog Number: 266LL-16VM01A002M 1135 | Thickness (Decimal Inch – 4 Decimals): 0.1563 |
| Coating/Finish: TiCrAlN; TiN | UNSPSC Code: 23291804 |
| Country of Origin: VARIOUS | |
| Insert Style: 266 | |
| Insert Size Code: 16 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 1135 | |
| Threads Per Inch: 8-16 | |
| Thread Type: Internal | |
| Pitch (mm): 1.50-3.00 | |

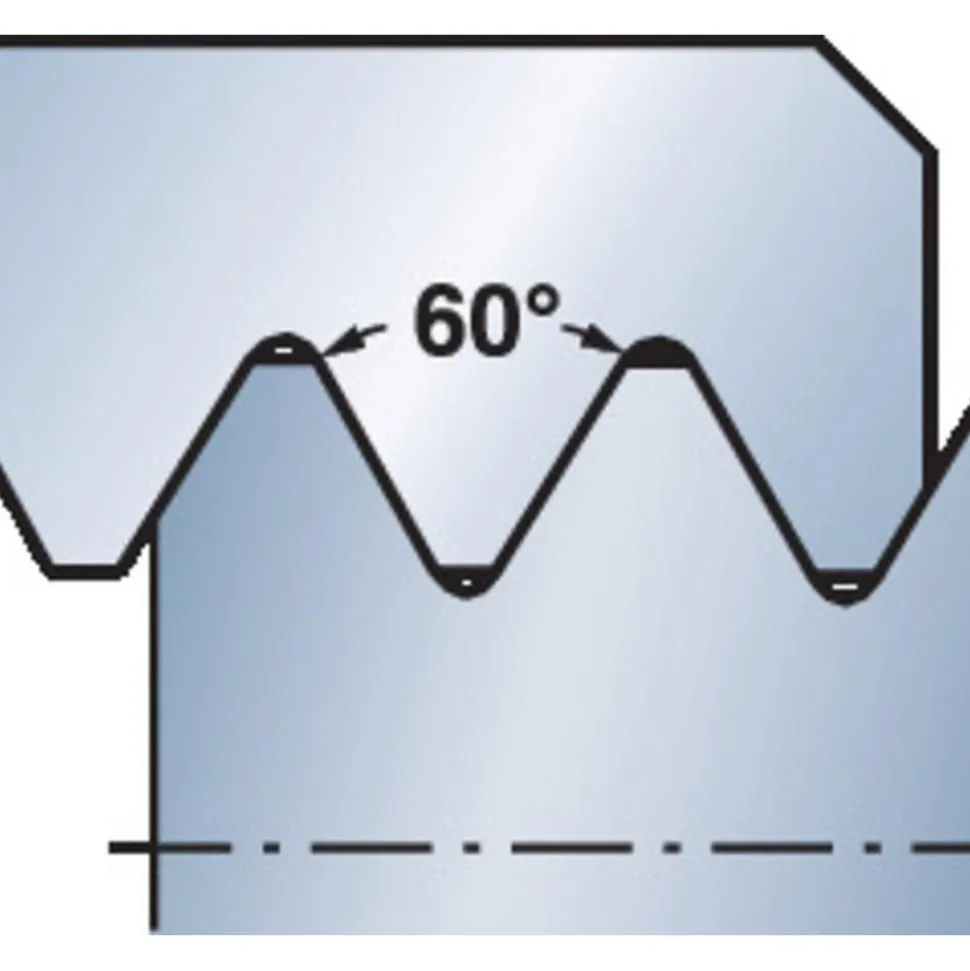

| Thread Standard: 60 Deg V | |
| Insert Hand: Left Hand | |
| Thickness (Inch): 5/32 | |
| Thickness (mm): 3.97 | |
| Included Angle: 60.00 | |
| Chipbreaker: A | |
| Series: CoroThread 266 | |
| Coating Process: PVD | |
| Inscribed Circle (mm): 9.53 | |
| Inscribed Circle (Inch): 3/8 | |
| Corner Radius (Decimal Inch): 0.0035 | |
| Corner Radius (mm): 0.09 | |
| Hole Diameter (mm): 4.40 | |
| Hole Diameter (Decimal Inch): 0.1732 | |
| Number of Teeth Per Side: 1 | |
| Manufacturers Catalog Number: 266LL-16VM01A002M 1135 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1563 | |
| Coating/Finish: TiCrAlN; TiN | |
| UNSPSC Code: 23291804 | |
| Country of Origin: VARIOUS |
| MSC# | 31787211 |
| Mfr# | 5857542 |
