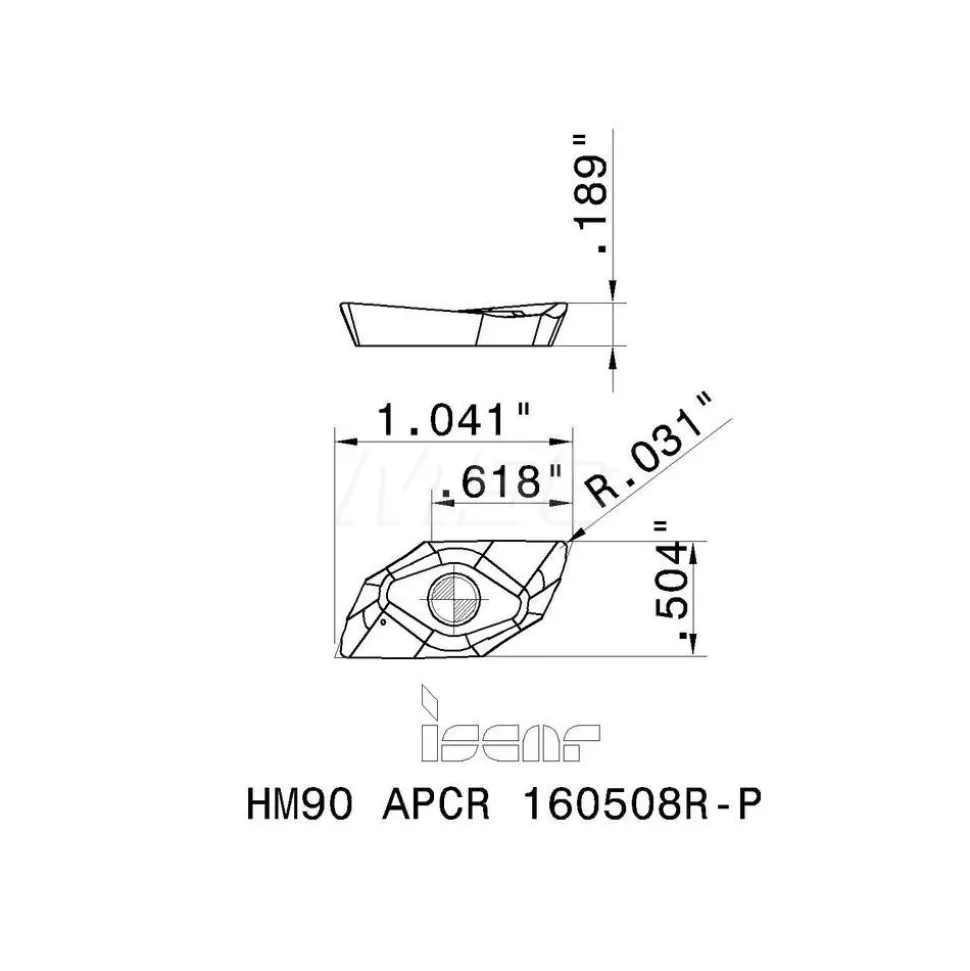

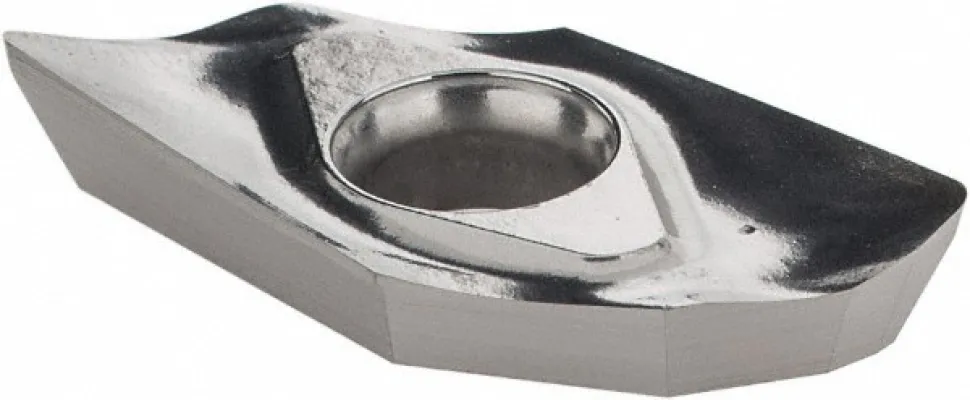

Milling Inserts: Insert Style: APCR; Insert Size: 16; Insert Material: Solid Carbide; Insert Shape: Parallelogram

Milling Inserts: Insert Style: APCR; Insert Size: 16; Insert Material: Solid Carbide; Insert Shape: Parallelogram

33,89 $

SKU: SKUuYUMNBz5tW Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

Insert Style: APCR	Insert Size: 16
Insert Material: Solid Carbide	Insert Shape: Parallelogram
Manufacturer Grade: IC28	Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80	Number Of Cutting Edges: 2
Thickness (Decimal Inch – 4 Decimals): 0.1890	Coating/Finish: Bright/Uncoated
Relief Angle: 11.000	Insert Size Code: 160508
Material Grade: C5; C6	Inscribed Circle (Decimal Inch): 0.5040
Thickness Range (Decimal Inch): 0.1850 to 0.2000	Corner Radius (Inch): 1/32
Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100	Length Range (Decimal Inch): 1.0000+
Insert Hand: Right Hand	Maximum Depth of Cut (mm): 15.50
Maximum Depth of Cut (Decimal Inch): 0.6102	Series: HELIALU
Coating Process: Uncoated	Cutting Edge Effective Length (Decimal Inch): 0.6180
Rake: Positive	Primary Workpiece Material: Non-Ferrous Metal
Primary Workpiece Material Code: N	Ansi Code: HM90 APCR 160508R-P IC28
Iso Code: HM90 APCR 160508R-P	Standards: ISO 13399; ANSI
Cutting Edge Style: Honed	Manufacturers Catalog Number: HM90 APCR 160508R-P IC28
Cutter Series Compatibility: HM90-16	Chip Breaker: P
UNSPSC Code: 23291601	Material Application: Non-Ferrous Metal
Insert Holding Method: Screw	Coating Classification: Uncoated
Single or Double Sided Insert: Single	Included Angle Degree: 85
Width (Decimal Inch – 4 Decimals): 0.5040	Multi-Use Tool: Yes
Length (Decimal Inch – 4 Decimals): 1.0040	Country of Origin: Israel
Insert Style: APCR
Insert Size: 16
Insert Material: Solid Carbide
Insert Shape: Parallelogram
Manufacturer Grade: IC28
Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80
Number Of Cutting Edges: 2
Thickness (Decimal Inch – 4 Decimals): 0.1890
Coating/Finish: Bright/Uncoated
Relief Angle: 11.000
Insert Size Code: 160508
Material Grade: C5; C6
Inscribed Circle (Decimal Inch): 0.5040
Thickness Range (Decimal Inch): 0.1850 to 0.2000
Corner Radius (Inch): 1/32
Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100
Length Range (Decimal Inch): 1.0000+
Insert Hand: Right Hand
Maximum Depth of Cut (mm): 15.50
Maximum Depth of Cut (Decimal Inch): 0.6102
Series: HELIALU
Coating Process: Uncoated
Cutting Edge Effective Length (Decimal Inch): 0.6180
Rake: Positive
Primary Workpiece Material: Non-Ferrous Metal
Primary Workpiece Material Code: N
Ansi Code: HM90 APCR 160508R-P IC28
Iso Code: HM90 APCR 160508R-P
Standards: ISO 13399; ANSI
Cutting Edge Style: Honed
Manufacturers Catalog Number: HM90 APCR 160508R-P IC28
Cutter Series Compatibility: HM90-16
Chip Breaker: P
UNSPSC Code: 23291601
Material Application: Non-Ferrous Metal
Insert Holding Method: Screw
Coating Classification: Uncoated
Single or Double Sided Insert: Single
Included Angle Degree: 85
Width (Decimal Inch – 4 Decimals): 0.5040
Multi-Use Tool: Yes
Length (Decimal Inch – 4 Decimals): 1.0040
Country of Origin: Israel
