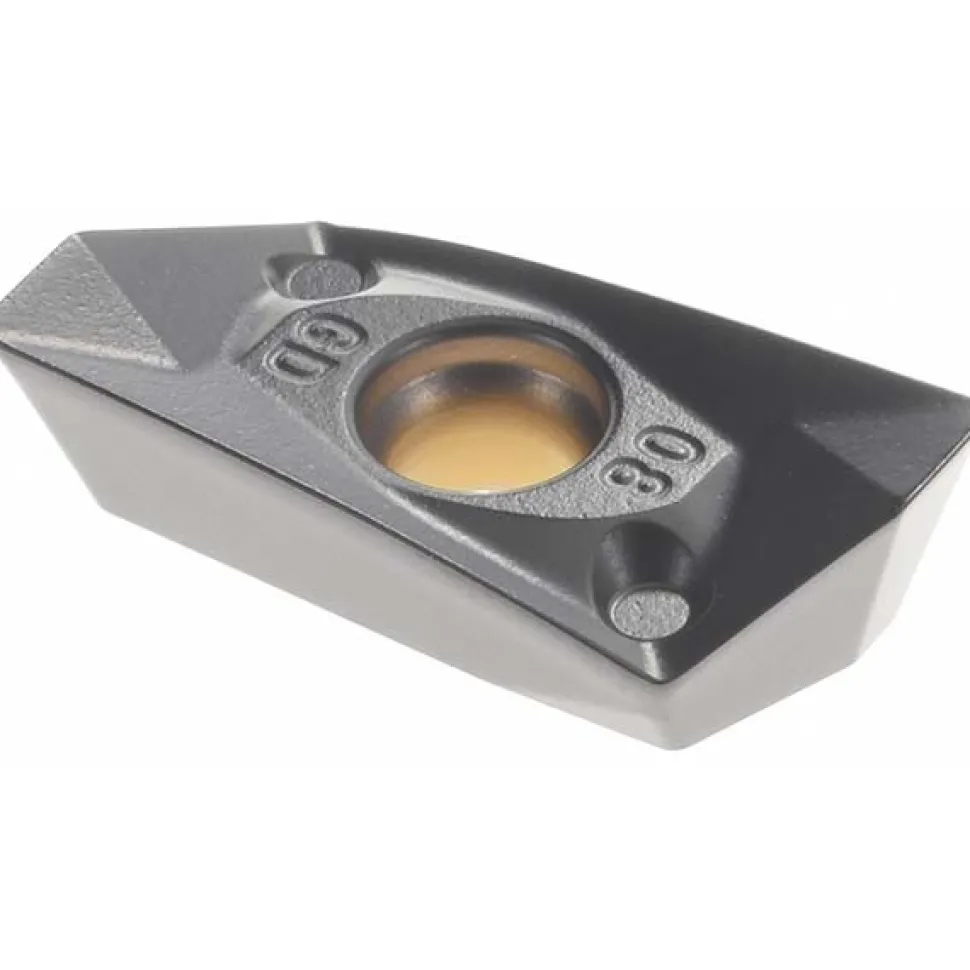

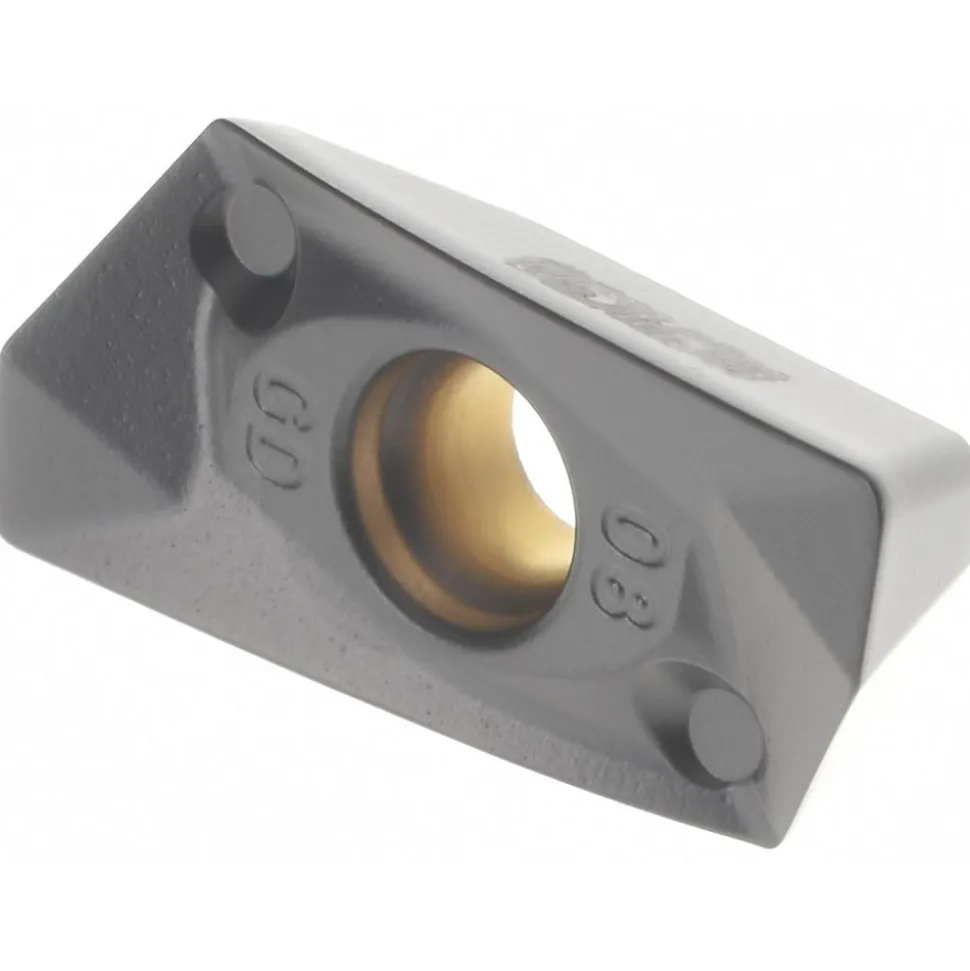

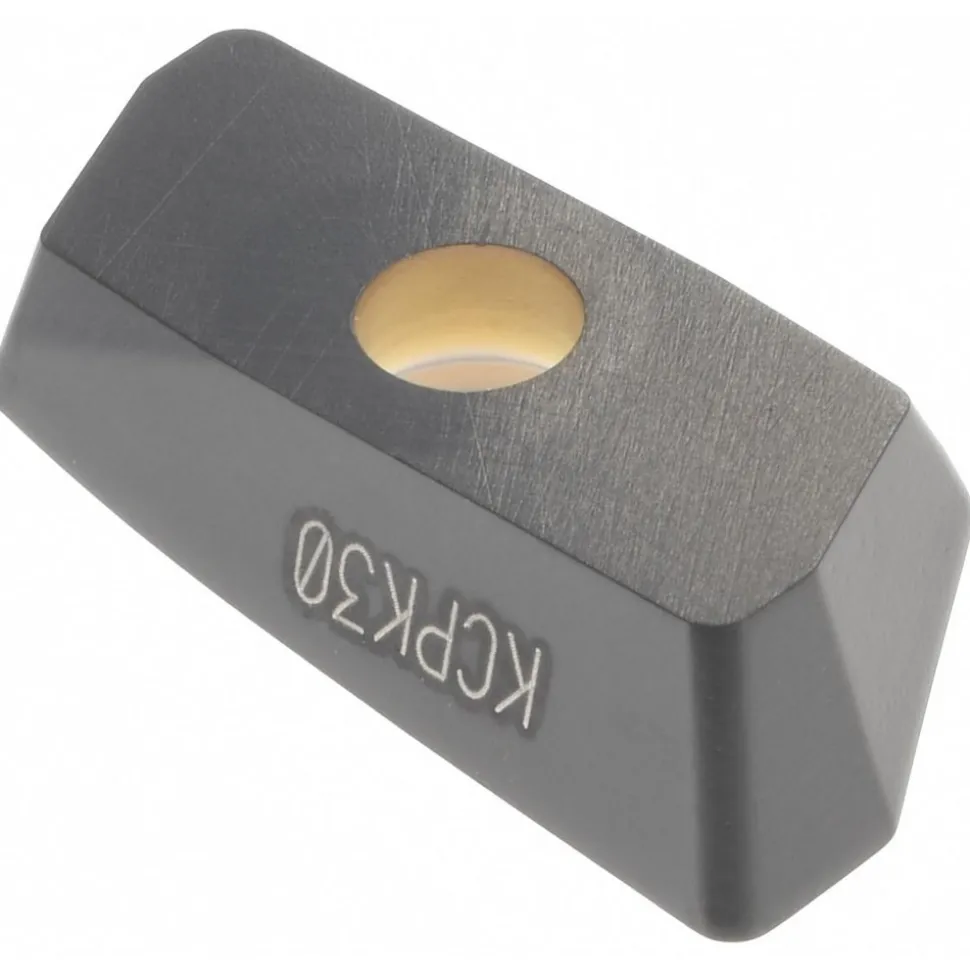

Milling Inserts: Insert Style: EDPT; Insert Size: 14; Insert Material: Solid Carbide; Insert Shape: Parallelogram
24,89 $
Specifications
| Insert Style: EDPT | Insert Size: 14 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: KCPK30 | Corner Radius (Decimal Inch): 0.0310 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.1770 | Coating/Finish: TiCN; TiN; Al2O3 |
| Relief Angle: 15.000 | Insert Size Code: 1408 |
| Material Grade: C5; C6; C1 | Length (Inch): 11/16 |
| Inscribed Circle (Decimal Inch): 0.6295 | Thickness Range (Decimal Inch): 0.1750 to 0.1850 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.6000 to 0.7000 |
| Length Range (Decimal Inch): 0.6500 to 0.7000 | Insert Hand: Right Hand |
| Series: EDPT | Coating Process: CVD |
| Hole Diameter (mm): 0.13 | Hole Diameter (Decimal Inch): 0.1339 |
| Rake: Positive | Primary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; K; M | Ansi Code: EP1408SGD |
| Iso Code: EDPT140408PDSRGD | Standards: ISO; ANSI |
| Cutting Edge Style: Honed; Chamfered | Manufacturers Catalog Number: EDPT140408PDSRGD |
| Cutter Series Compatibility: Mill 1-14 | Chip Breaker: GD |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method: Screw | Coating Classification: CVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 70 |
| Width (Decimal Inch – 4 Decimals): 0.6295 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.6879 | Country of Origin: Germany |
| Insert Style: EDPT | |
| Insert Size: 14 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: KCPK30 | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1770 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Relief Angle: 15.000 | |
| Insert Size Code: 1408 | |
| Material Grade: C5; C6; C1 | |
| Length (Inch): 11/16 | |
| Inscribed Circle (Decimal Inch): 0.6295 | |
| Thickness Range (Decimal Inch): 0.1750 to 0.1850 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.6000 to 0.7000 | |
| Length Range (Decimal Inch): 0.6500 to 0.7000 | |
| Insert Hand: Right Hand | |
| Series: EDPT | |
| Coating Process: CVD | |
| Hole Diameter (mm): 0.13 | |
| Hole Diameter (Decimal Inch): 0.1339 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; K; M | |
| Ansi Code: EP1408SGD | |
| Iso Code: EDPT140408PDSRGD | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed; Chamfered | |
| Manufacturers Catalog Number: EDPT140408PDSRGD | |
| Cutter Series Compatibility: Mill 1-14 | |
| Chip Breaker: GD | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: CVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 70 | |
| Width (Decimal Inch – 4 Decimals): 0.6295 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.6879 | |
| Country of Origin: Germany |
| MSC# | 01655208 |
| Mfr# | 2980531 |
| Big Book# | 704 |
