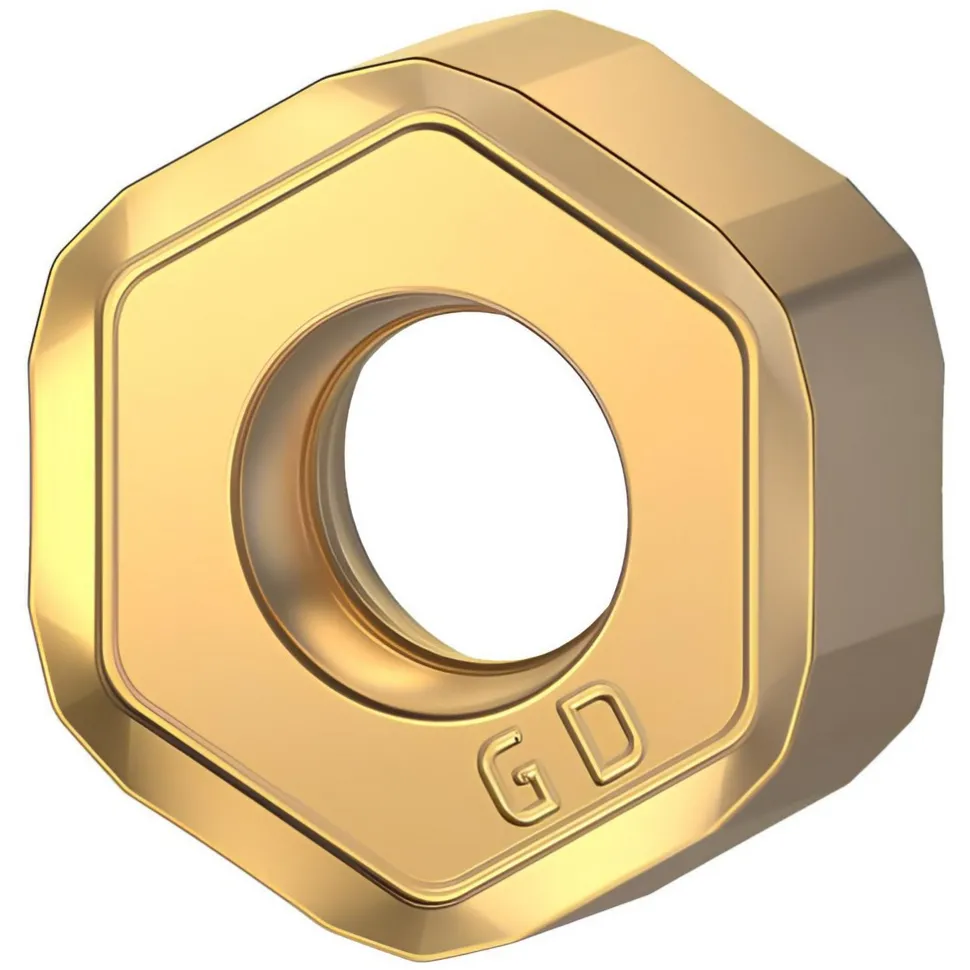

Milling Inserts: Insert Style: HNPJ; Insert Size: 4; Insert Material: Solid Carbide; Insert Shape: Hexagon
23,99 $
Specifications
| Insert Style: HNPJ | Insert Size: 4 |
| Insert Material: Solid Carbide | Insert Shape: Hexagon |
| Manufacturer Grade: KC725M | Corner Radius (Decimal Inch): 0.0394 |
| Corner Radius (mm): 1.00 | Number Of Cutting Edges: 12 |
| Thickness (Decimal Inch – 4 Decimals): 0.1750 | Coating/Finish: TiAlN |
| Relief Angle: 0.000 | Insert Size Code: 43 |
| Material Grade: C5; C6; C7 | Inscribed Circle (Decimal Inch): 0.4724 |
| Inscribed Circle (mm): 12.00 | Thickness Range (Decimal Inch): 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | Length Range (Decimal Inch): 0.4500 to 0.5000 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.4331 |
| Series: Dodeka Series | Coating Process: PVD |
| Hole Diameter (mm): 0.20 | Hole Diameter (Decimal Inch): 0.1969 |
| Rake: Positive | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Ansi Code: HNPJ43ANSNGD |
| Iso Code: HNPJ0604ANSNGD | Standards: ISO; ANSI |
| Rake Angle: 15.000 | Cutting Edge Style: Honed T-Land |
| Manufacturers Catalog Number: HNPJ0604ANSNGD | Cutter Series Compatibility: Dodeka |
| Chip Breaker: GD | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: PVD | Single or Double Sided Insert: Double |
| Included Angle Degree: 120 | Width (Decimal Inch – 4 Decimals): 0.4724 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.4724 |
| Country of Origin: UNITED STATES | |
| Insert Style: HNPJ | |
| Insert Size: 4 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Hexagon | |
| Manufacturer Grade: KC725M | |
| Corner Radius (Decimal Inch): 0.0394 | |
| Corner Radius (mm): 1.00 | |
| Number Of Cutting Edges: 12 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1750 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 0.000 | |
| Insert Size Code: 43 | |
| Material Grade: C5; C6; C7 | |
| Inscribed Circle (Decimal Inch): 0.4724 | |
| Inscribed Circle (mm): 12.00 | |
| Thickness Range (Decimal Inch): 0.1750 to 0.1850 | |
| Inscribed Circle Range (Decimal Inch): 0.4000 to 0.5000 | |
| Length Range (Decimal Inch): 0.4500 to 0.5000 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.4331 | |
| Series: Dodeka Series | |
| Coating Process: PVD | |
| Hole Diameter (mm): 0.20 | |
| Hole Diameter (Decimal Inch): 0.1969 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: HNPJ43ANSNGD | |
| Iso Code: HNPJ0604ANSNGD | |
| Standards: ISO; ANSI | |
| Rake Angle: 15.000 | |
| Cutting Edge Style: Honed T-Land | |
| Manufacturers Catalog Number: HNPJ0604ANSNGD | |
| Cutter Series Compatibility: Dodeka | |
| Chip Breaker: GD | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Double | |
| Included Angle Degree: 120 | |
| Width (Decimal Inch – 4 Decimals): 0.4724 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.4724 | |
| Country of Origin: UNITED STATES |
| MSC# | 89643449 |
| Mfr# | 4119701 |
| Big Book# | 705 |
