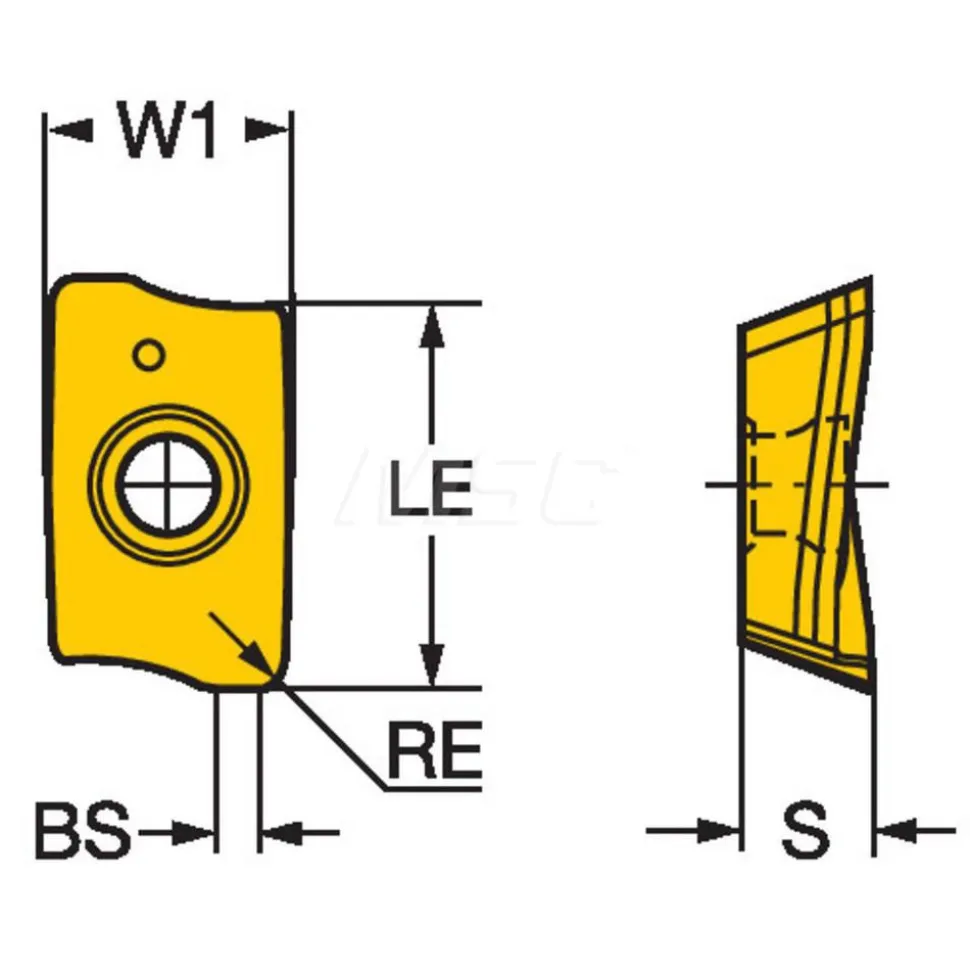

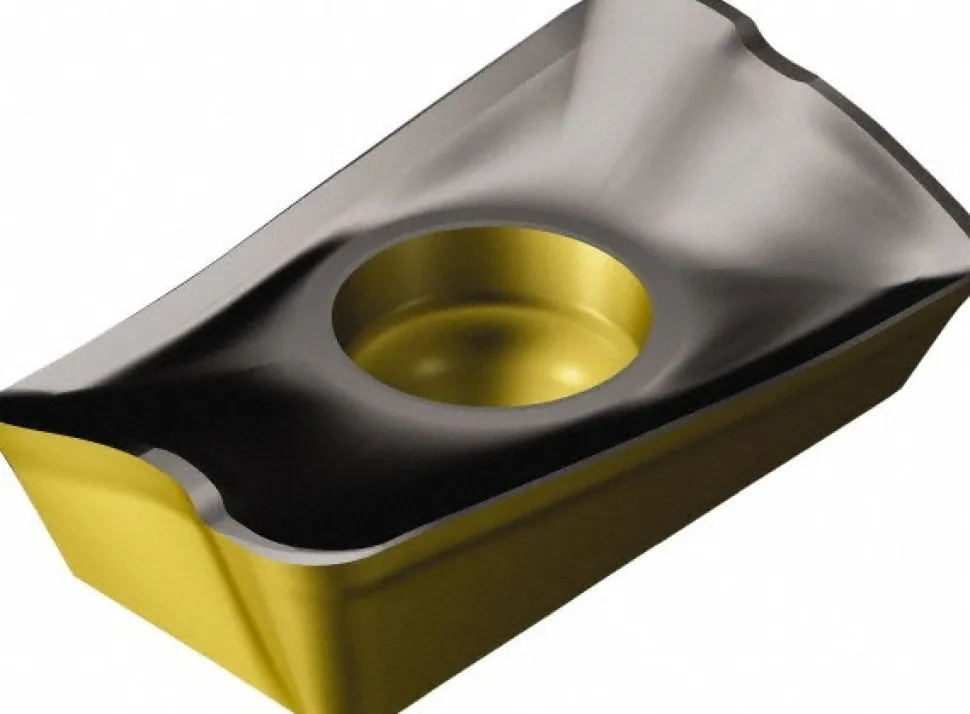

Milling Inserts: Insert Style: R390; Insert Size: 17; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 34,00 $.24,89 $Current price is: 24,89 $.
Specifications
| Insert Style: R390 | Insert Size: 17 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: 4340 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | Coating/Finish: TiCN; TiN; Al2O3 |
| Insert Size Code: 170408 | Material Grade: K40; M40; P40 |
| Thickness (Inch): 3/16 | Inscribed Circle (Decimal Inch): 0.3780 |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | Corner Radius (Inch): 1/32 |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | Length Range (Decimal Inch): 0.6000 to 0.6500 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.6299 |
| Series: R390 | Coating Process: CVD |
| Hole Diameter (Decimal Inch): 0.1614 | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Steel | Primary Workpiece Material Code: P; K; M |
| Ansi Code: R390-17 04 08M-PH 4340 | Iso Code: R390-17 04 08M-PH 4340 |
| Standards: ISO; ANSI | Rake Angle: 10.000 |
| Cutting Edge Style: Corner Rounded | Manufacturers Catalog Number: R390-17 04 08M-PH 4340 |
| Cutter Series Compatibility: R390 | Chip Breaker: PH |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Cast Iron; Steel |
| Insert Holding Method: Screw | Coating Classification: CVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.3780 | Width (mm – 2 Decimals): 9.60 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.6181 |
| Country of Origin: India | |
| Insert Style: R390 | |
| Insert Size: 17 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: 4340 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1875 | |
| Coating/Finish: TiCN; TiN; Al2O3 | |
| Insert Size Code: 170408 | |
| Material Grade: K40; M40; P40 | |
| Thickness (Inch): 3/16 | |
| Inscribed Circle (Decimal Inch): 0.3780 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | |
| Length Range (Decimal Inch): 0.6000 to 0.6500 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.6299 | |
| Series: R390 | |
| Coating Process: CVD | |
| Hole Diameter (Decimal Inch): 0.1614 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Steel | |
| Primary Workpiece Material Code: P; K; M | |
| Ansi Code: R390-17 04 08M-PH 4340 | |
| Iso Code: R390-17 04 08M-PH 4340 | |
| Standards: ISO; ANSI | |
| Rake Angle: 10.000 | |
| Cutting Edge Style: Corner Rounded | |
| Manufacturers Catalog Number: R390-17 04 08M-PH 4340 | |
| Cutter Series Compatibility: R390 | |
| Chip Breaker: PH | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Cast Iron; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: CVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.3780 | |
| Width (mm – 2 Decimals): 9.60 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.6181 | |
| Country of Origin: India |
| MSC# | 66863879 |
| Mfr# | 7564378 |
