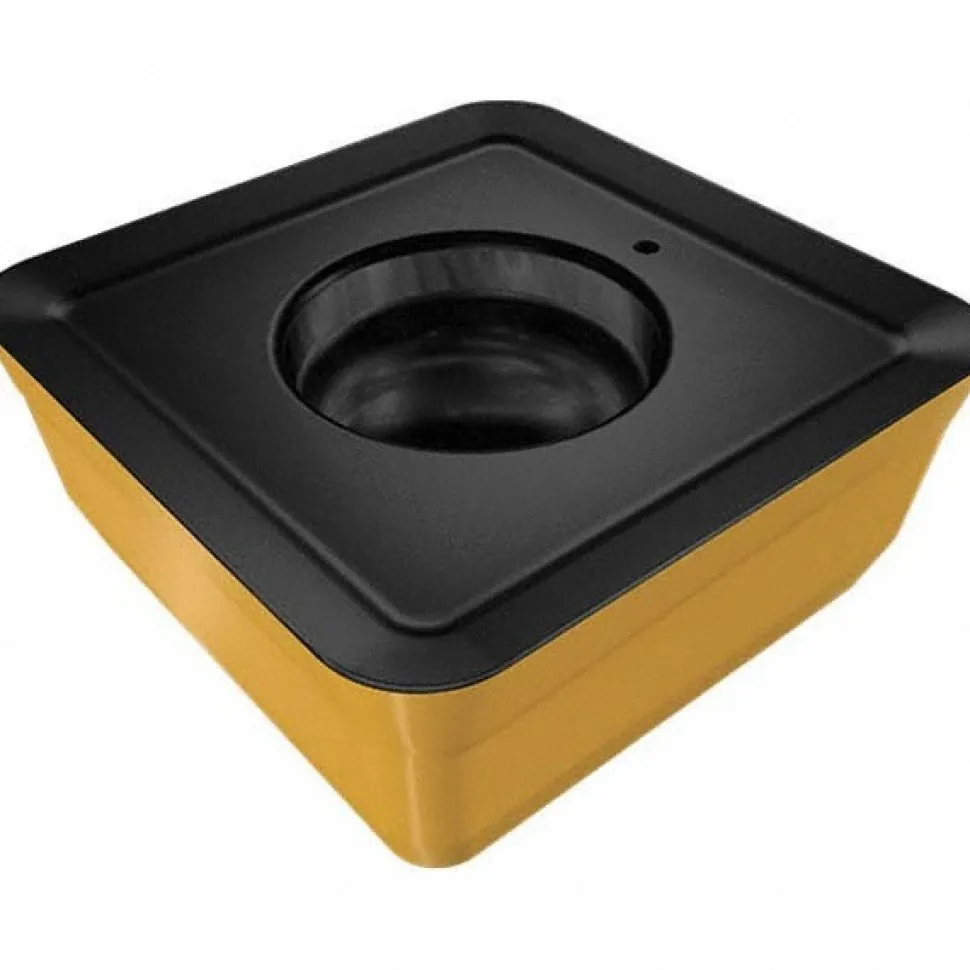

Milling Inserts: Insert Style: SOMT; Insert Size: 09; Insert Material: Solid Carbide; Insert Shape: Square
Original price was: 37,00 $.27,99 $Current price is: 27,99 $.
Specifications
| Insert Style: SOMT | Insert Size: 09 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: IC882 | Corner Radius (Decimal Inch): 0.0472 |
| Corner Radius (mm): 1.20 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch – 4 Decimals): 0.1500 | Thickness (mm): 3.80 |
| Coating/Finish: TiSiN; TiAlSiN; AlTiN | Insert Size Code: 090412 |
| Inscribed Circle (Decimal Inch): 0.3350 | Thickness Range (Decimal Inch): 0.1250 to 0.1500 |
| Corner Radius (Inch): 3/64 | Length Range (Decimal Inch): 0.3200 to 0.4000 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.0390 |
| Series: MILL4FEED | Coating Process: PVD |
| Cutting Edge Effective Length (Decimal Inch): 0.2874 | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | Primary Workpiece Material Code: S; M |
| Secondary Workpiece Material Code: S | Ansi Code: FFQ4 SOMT 090412HP IC882 |
| Iso Code: FFQ4 SOMT 090412HP | Standards: ISO 13399; ANSI |
| Cutting Edge Style: Continuous | Manufacturers Catalog Number: FFQ4 SOMT 090412HP IC882 |
| Cutter Series Compatibility: FFQ4 | Chip Breaker: HP |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Superalloys & Titanium |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Length (mm): 8.60 | Width (Decimal Inch – 4 Decimals): 0.3346 |
| Width (mm – 2 Decimals): 8.50 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.3346 | Country of Origin: Israel |
| Insert Style: SOMT | |
| Insert Size: 09 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: IC882 | |
| Corner Radius (Decimal Inch): 0.0472 | |
| Corner Radius (mm): 1.20 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1500 | |
| Thickness (mm): 3.80 | |
| Coating/Finish: TiSiN; TiAlSiN; AlTiN | |
| Insert Size Code: 090412 | |
| Inscribed Circle (Decimal Inch): 0.3350 | |
| Thickness Range (Decimal Inch): 0.1250 to 0.1500 | |
| Corner Radius (Inch): 3/64 | |
| Length Range (Decimal Inch): 0.3200 to 0.4000 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.0390 | |
| Series: MILL4FEED | |
| Coating Process: PVD | |
| Cutting Edge Effective Length (Decimal Inch): 0.2874 | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium | |
| Primary Workpiece Material Code: S; M | |
| Secondary Workpiece Material Code: S | |
| Ansi Code: FFQ4 SOMT 090412HP IC882 | |
| Iso Code: FFQ4 SOMT 090412HP | |
| Standards: ISO 13399; ANSI | |
| Cutting Edge Style: Continuous | |
| Manufacturers Catalog Number: FFQ4 SOMT 090412HP IC882 | |
| Cutter Series Compatibility: FFQ4 | |
| Chip Breaker: HP | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Length (mm): 8.60 | |
| Width (Decimal Inch – 4 Decimals): 0.3346 | |
| Width (mm – 2 Decimals): 8.50 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.3346 | |
| Country of Origin: Israel |
| MSC# | 38929576 |
| Mfr# | 3315782 |
