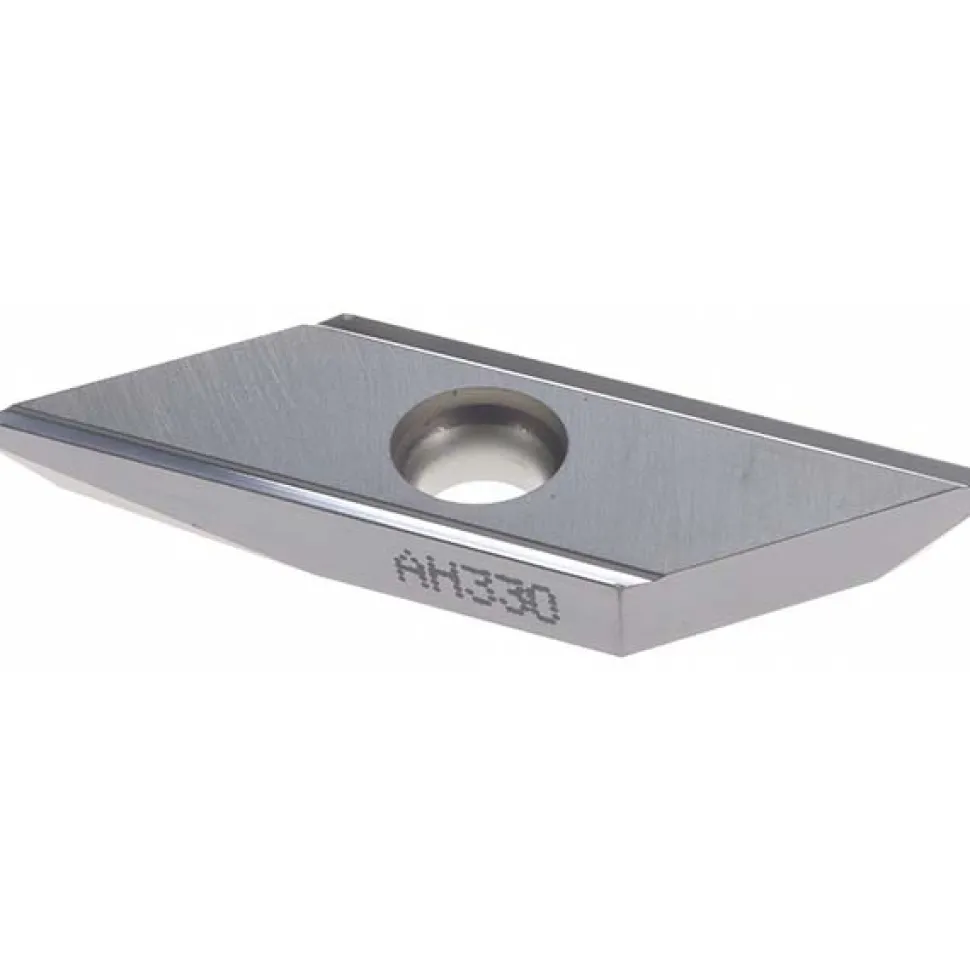

Milling Inserts: Insert Style: XCET; Insert Size: 31; Insert Material: Solid Carbide; Insert Shape: Parallelogram
Original price was: 136,00 $.95,89 $Current price is: 95,89 $.
Specifications
| Insert Style: XCET | Insert Size: 31 |
| Insert Material: Solid Carbide | Insert Shape: Parallelogram |
| Manufacturer Grade: AH330 | Corner Radius (Decimal Inch): 0.0157 |
| Corner Radius (mm): 0.40 | Number Of Cutting Edges: 2 |
| Thickness (Decimal Inch – 4 Decimals): 0.1770 | Thickness (mm): 4.50 |
| Coating/Finish: TiAlN | Relief Angle: 7.000 |
| Insert Size Code: 310404 | Material Grade: P15; P30 |
| Width (Inch): 1/2 | Inscribed Circle (Decimal Inch): 0.5000 |
| Inscribed Circle (Inch): 1/2 | Thickness Range (Decimal Inch): 0.1750 to 0.1850 |
| Corner Radius (Inch): 1/64 | Inscribed Circle Range (Decimal Inch): 0.5000 to 0.6000 |
| Length Range (Decimal Inch): 1.0000+ | Insert Hand: Right Hand |
| Series: XCET | Coating Process: PVD |
| Rake: Positive | Primary Workpiece Material: Steel |
| Primary Workpiece Material Code: P | Ansi Code: XCET310404ER AH330 |
| Iso Code: XCET310404ER AH330 | Standards: ISO |
| Cutting Edge Style: Honed | Manufacturers Catalog Number: XCET310404ER |
| Cutter Series Compatibility: ECC31 | Chip Breaker: Common |
| UNSPSC Code: 23291601 | Material Application: Steel |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 45 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Width (mm – 2 Decimals): 12.70 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 1.1161 |
| Country of Origin: Japan | |
| Insert Style: XCET | |
| Insert Size: 31 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Parallelogram | |
| Manufacturer Grade: AH330 | |
| Corner Radius (Decimal Inch): 0.0157 | |
| Corner Radius (mm): 0.40 | |
| Number Of Cutting Edges: 2 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1770 | |
| Thickness (mm): 4.50 | |
| Coating/Finish: TiAlN | |
| Relief Angle: 7.000 | |
| Insert Size Code: 310404 | |
| Material Grade: P15; P30 | |
| Width (Inch): 1/2 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Thickness Range (Decimal Inch): 0.1750 to 0.1850 | |
| Corner Radius (Inch): 1/64 | |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.6000 | |
| Length Range (Decimal Inch): 1.0000+ | |
| Insert Hand: Right Hand | |
| Series: XCET | |
| Coating Process: PVD | |
| Rake: Positive | |
| Primary Workpiece Material: Steel | |
| Primary Workpiece Material Code: P | |
| Ansi Code: XCET310404ER AH330 | |
| Iso Code: XCET310404ER AH330 | |
| Standards: ISO | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: XCET310404ER | |
| Cutter Series Compatibility: ECC31 | |
| Chip Breaker: Common | |
| UNSPSC Code: 23291601 | |
| Material Application: Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 45 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Width (mm – 2 Decimals): 12.70 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 1.1161 | |
| Country of Origin: Japan |
| MSC# | 01685890 |
| Mfr# | 6811536 |
| Big Book# | 725 |
