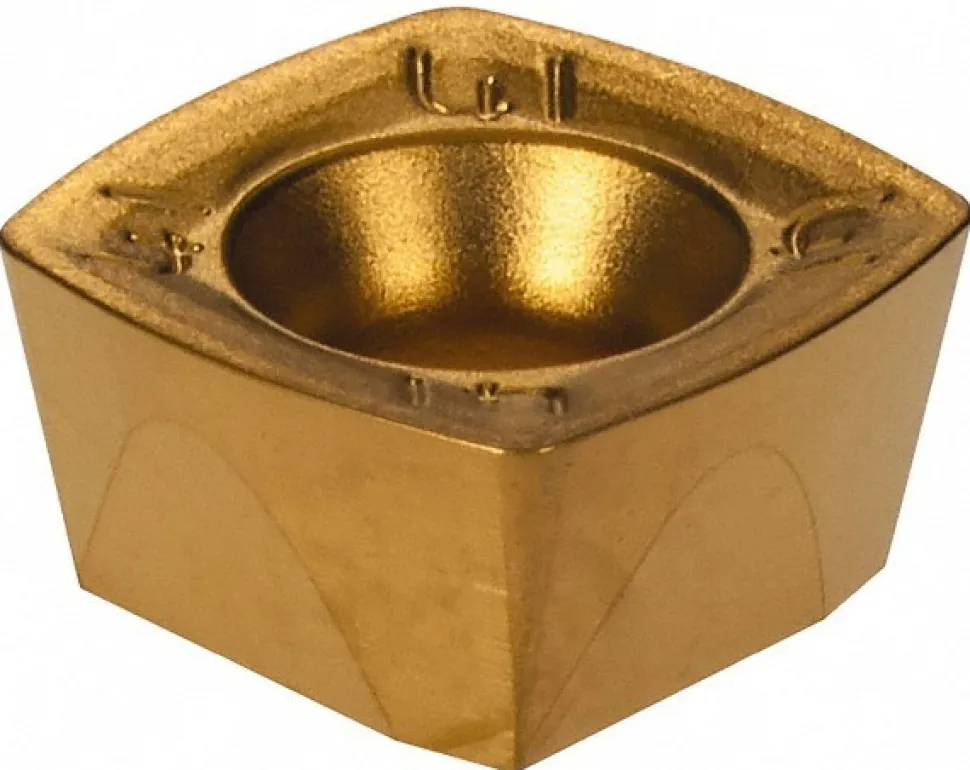

Milling Inserts: Insert Style: XDLT; Insert Size: 09; Insert Material: Solid Carbide; Insert Shape: Square
Original price was: 44,00 $.32,89 $Current price is: 32,89 $.
Specifications
| Insert Style: XDLT | Insert Size: 09 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: X500 | Corner Radius (Decimal Inch): 0.0310 |
| Number Of Cutting Edges: 4 | Thickness (Decimal Inch – 4 Decimals): 0.1870 |
| Coating/Finish: TiN; TiC | Relief Angle: 15.000 |
| Insert Size Code: 090408 | Width (Inch): 3/8 |
| Length (Inch): 3/8 | Inscribed Circle (Decimal Inch): 0.3750 |
| Inscribed Circle (Inch): 3/8 | Thickness Range (Decimal Inch): 0.1850 to 0.2000 |
| Corner Radius (Inch): 1/32 | Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 |
| Length Range (Decimal Inch): 0.3200 to 0.4000 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.3379 | Series: XDLT |
| Coating Process: CVD | Rake: Positive |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; M |
| Ansi Code: XDLT090408ERD41 | Iso Code: XDLT090408ERD41 |
| Standards: ISO; ANSI | Cutting Edge Style: Honed |
| Manufacturers Catalog Number: XDLT090408ERD41 | Cutter Series Compatibility: 7792VXD09 |
| Chip Breaker: D41 | UNSPSC Code: 23291601 |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | Insert Holding Method: Screw |
| Coating Classification: CVD | Single or Double Sided Insert: Single |
| Included Angle Degree: 90 | Width (Decimal Inch – 4 Decimals): 0.3750 |
| Multi-Use Tool: Yes | Length (Decimal Inch – 4 Decimals): 0.3750 |
| Country of Origin: UNITED STATES | |
| Insert Style: XDLT | |
| Insert Size: 09 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: X500 | |
| Corner Radius (Decimal Inch): 0.0310 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1870 | |
| Coating/Finish: TiN; TiC | |
| Relief Angle: 15.000 | |
| Insert Size Code: 090408 | |
| Width (Inch): 3/8 | |
| Length (Inch): 3/8 | |
| Inscribed Circle (Decimal Inch): 0.3750 | |
| Inscribed Circle (Inch): 3/8 | |
| Thickness Range (Decimal Inch): 0.1850 to 0.2000 | |
| Corner Radius (Inch): 1/32 | |
| Inscribed Circle Range (Decimal Inch): 0.3500 to 0.4000 | |
| Length Range (Decimal Inch): 0.3200 to 0.4000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.3379 | |
| Series: XDLT | |
| Coating Process: CVD | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: XDLT090408ERD41 | |
| Iso Code: XDLT090408ERD41 | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: XDLT090408ERD41 | |
| Cutter Series Compatibility: 7792VXD09 | |
| Chip Breaker: D41 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: CVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.3750 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.3750 | |
| Country of Origin: UNITED STATES |
| MSC# | 52472636 |
| Mfr# | 5654896 |
