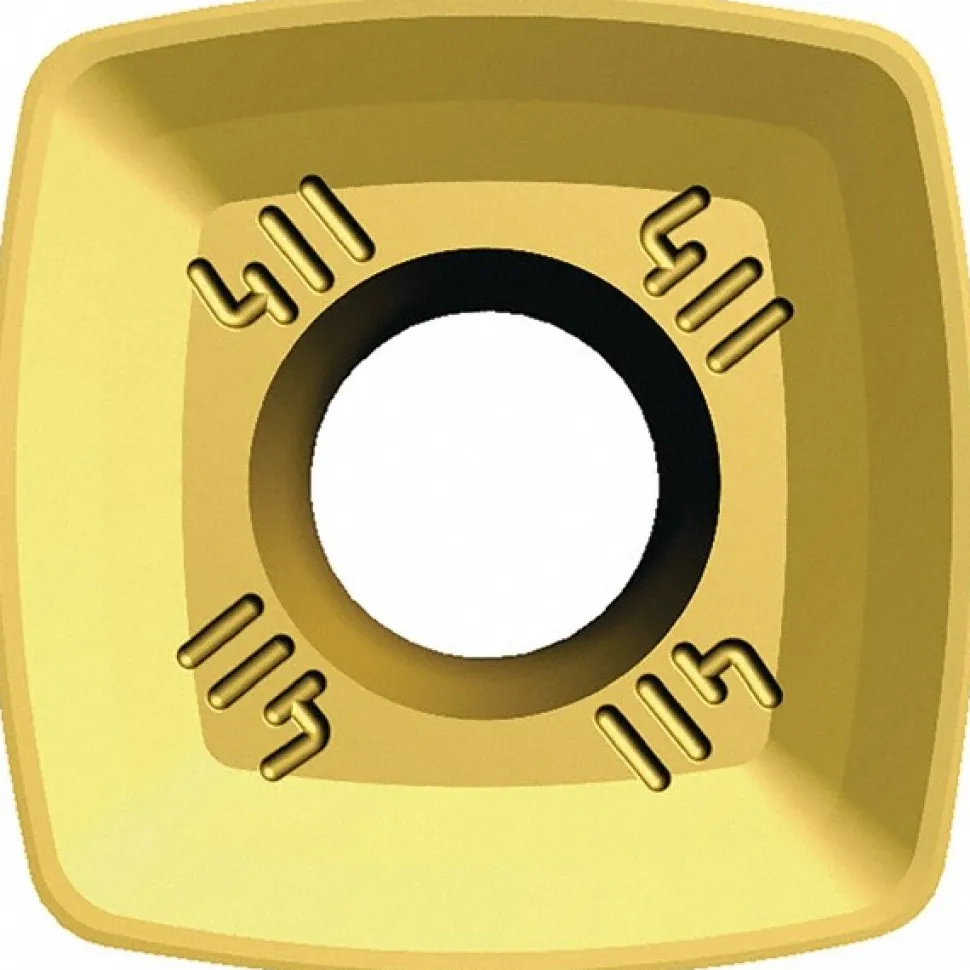

Milling Inserts: Insert Style: XDLT; Insert Size: 12; Insert Material: Solid Carbide; Insert Shape: Square
37,99 $
Specifications
| Insert Style: XDLT | Insert Size: 12 |
| Insert Material: Solid Carbide | Insert Shape: Square |
| Manufacturer Grade: KCSM40 | Corner Radius (Decimal Inch): 0.0470 |
| Corner Radius (mm): 1.19 | Number Of Cutting Edges: 4 |
| Thickness (Decimal Inch – 4 Decimals): 0.2190 | Thickness (mm): 5.56 |
| Coating/Finish: TiN; TiAlN | Relief Angle: 15.000 |
| Insert Size Code: 120512 | Width (Inch): 1/2 |
| Length (Inch): 1/2 | Thickness (Inch): 7/32 |
| Inscribed Circle (Decimal Inch): 0.5000 | Inscribed Circle (Inch): 1/2 |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | Corner Radius (Inch): 3/64 |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | Length Range (Decimal Inch): 0.5000 to 0.6000 |
| Insert Hand: Right Hand | Maximum Depth of Cut (Decimal Inch): 0.3260 |
| Series: XDLT | Coating Process: PVD |
| Rake: Positive | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Ansi Code: XDLT120512ERD411 |
| Iso Code: XDLT120512ERD411 | Standards: ISO; ANSI |
| Cutting Edge Style: Honed | Manufacturers Catalog Number: XDLT120512ERD411 |
| Cutter Series Compatibility: 7792VXD12 | Chip Breaker: D411 |
| UNSPSC Code: 23291601 | Material Application: Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method: Screw | Coating Classification: PVD |
| Single or Double Sided Insert: Single | Included Angle Degree: 90 |
| Width (Decimal Inch – 4 Decimals): 0.5000 | Multi-Use Tool: Yes |
| Length (Decimal Inch – 4 Decimals): 0.5000 | Country of Origin: UNITED STATES |
| Insert Style: XDLT | |
| Insert Size: 12 | |
| Insert Material: Solid Carbide | |
| Insert Shape: Square | |
| Manufacturer Grade: KCSM40 | |
| Corner Radius (Decimal Inch): 0.0470 | |
| Corner Radius (mm): 1.19 | |
| Number Of Cutting Edges: 4 | |
| Thickness (Decimal Inch – 4 Decimals): 0.2190 | |
| Thickness (mm): 5.56 | |
| Coating/Finish: TiN; TiAlN | |
| Relief Angle: 15.000 | |
| Insert Size Code: 120512 | |
| Width (Inch): 1/2 | |
| Length (Inch): 1/2 | |
| Thickness (Inch): 7/32 | |
| Inscribed Circle (Decimal Inch): 0.5000 | |
| Inscribed Circle (Inch): 1/2 | |
| Thickness Range (Decimal Inch): 0.2000 to 0.2200 | |
| Corner Radius (Inch): 3/64 | |
| Inscribed Circle Range (Decimal Inch): 0.5000 to 0.5100 | |
| Length Range (Decimal Inch): 0.5000 to 0.6000 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.3260 | |
| Series: XDLT | |
| Coating Process: PVD | |
| Rake: Positive | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Ansi Code: XDLT120512ERD411 | |
| Iso Code: XDLT120512ERD411 | |
| Standards: ISO; ANSI | |
| Cutting Edge Style: Honed | |
| Manufacturers Catalog Number: XDLT120512ERD411 | |
| Cutter Series Compatibility: 7792VXD12 | |
| Chip Breaker: D411 | |
| UNSPSC Code: 23291601 | |
| Material Application: Stainless Steel; Superalloys & Titanium; Steel | |
| Insert Holding Method: Screw | |
| Coating Classification: PVD | |
| Single or Double Sided Insert: Single | |
| Included Angle Degree: 90 | |
| Width (Decimal Inch – 4 Decimals): 0.5000 | |
| Multi-Use Tool: Yes | |
| Length (Decimal Inch – 4 Decimals): 0.5000 | |
| Country of Origin: UNITED STATES |
| MSC# | 47388392 |
| Mfr# | 6441068 |
