Sale!

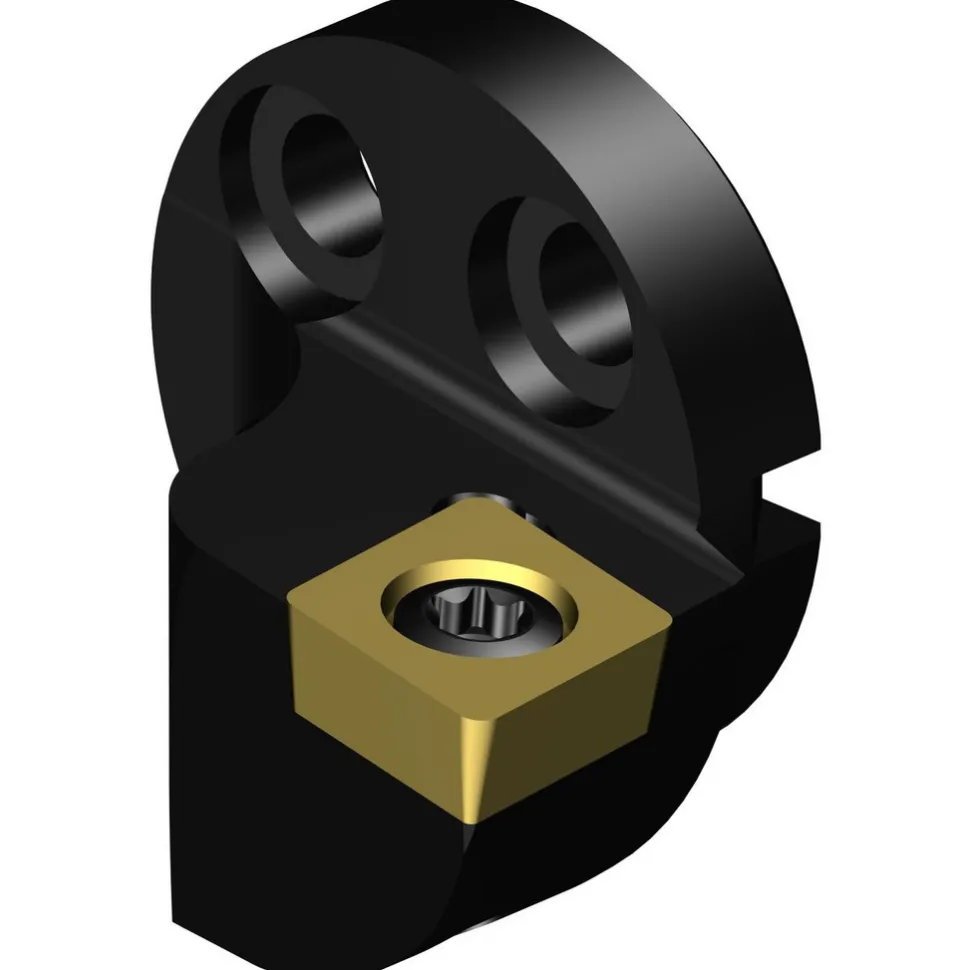

Modular Turning & Profiling Head: 20.00 mm, Internal, Right Hand
Original price was: 492,00 $.140,99 $Current price is: 140,99 $.
Specifications
| System Size: 25 | Cutting Direction: Right Hand |
| Compatible Insert Style: CCMT 09T308 | Internal or External: Internal |
| Insert Holding Method: Screw; Clamp | Center to Cutting Edge (mm): 17.00 |
| Center to Cutting Edge (Decimal Inch): 0.6693 | Series: CoroTurn 107 |
| Neck Diameter (mm): 25.00 | Neck Diameter (Decimal Inch): 0.9843 |
| Axial Rake Angle: 0.00 | Radial Rake Angle (Degrees): -6 |
| Head Connection Size: 25 | Complete Insert Compatibility: CCMT 09T308 |
| Coolant Through: Yes | Head Length Projection (Decimal Inch): 0.7874 |
| Head Length Projection (mm): 20.00 | Maximum Hole Depth (Decimal Inch): 0.7874 |
| Maximum Hole Depth (mm): 20.00 | Minimum Hole Diameter (Decimal Inch): 1.2598 |
| Minimum Hole Diameter (mm): 32.00 | UNSPSC Code: 23242100 |
| Country of Origin: India | |
| System Size: 25 | |
| Cutting Direction: Right Hand | |
| Compatible Insert Style: CCMT 09T308 | |
| Internal or External: Internal | |
| Insert Holding Method: Screw; Clamp | |
| Center to Cutting Edge (mm): 17.00 | |
| Center to Cutting Edge (Decimal Inch): 0.6693 | |
| Series: CoroTurn 107 | |
| Neck Diameter (mm): 25.00 | |
| Neck Diameter (Decimal Inch): 0.9843 | |
| Axial Rake Angle: 0.00 | |
| Radial Rake Angle (Degrees): -6 | |
| Head Connection Size: 25 | |
| Complete Insert Compatibility: CCMT 09T308 | |
| Coolant Through: Yes | |
| Head Length Projection (Decimal Inch): 0.7874 | |
| Head Length Projection (mm): 20.00 | |
| Maximum Hole Depth (Decimal Inch): 0.7874 | |
| Maximum Hole Depth (mm): 20.00 | |
| Minimum Hole Diameter (Decimal Inch): 1.2598 | |
| Minimum Hole Diameter (mm): 32.00 | |
| UNSPSC Code: 23242100 | |
| Country of Origin: India |
| MSC# | 45071578 |
| Mfr# | 5764333 |
