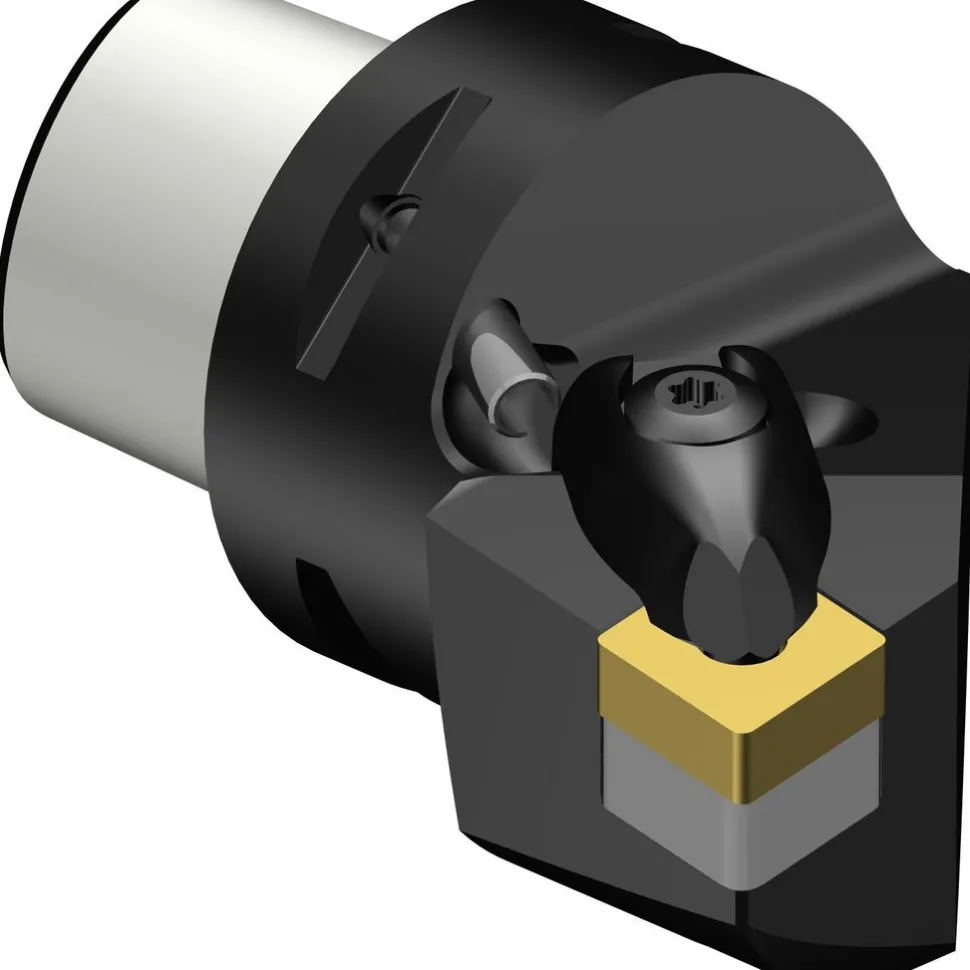

Modular Turning & Profiling Head: C4, 50.00 mm, Internal, Right Hand
Original price was: 399,00 $.140,99 $Current price is: 140,99 $.
Specifications
| System Size: C4 | Cutting Direction: Right Hand |
| Compatible Insert Style: CNMG 120408 | Internal or External: Internal |

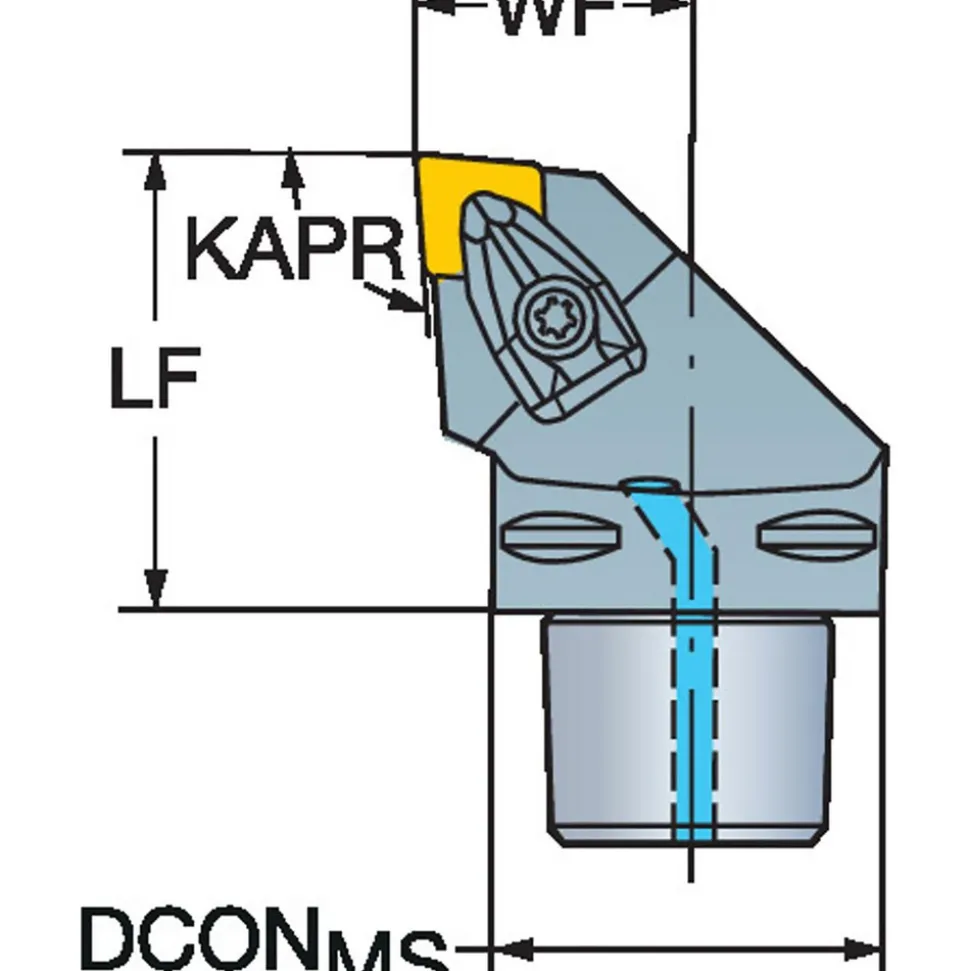

| Insert Holding Method: Wedge | Center to Cutting Edge (mm): 27.00 |
| Center to Cutting Edge (Decimal Inch): 1.0630 | Series: T-Max P |
| Neck Diameter (mm): 40.00 | Neck Diameter (Decimal Inch): 1.5748 |
| Axial Rake Angle: -6.00 | Radial Rake Angle (Degrees): -6 |
| Head Connection Size: C4 | Complete Insert Compatibility: CNMG 120408 |
| Coolant Through: Yes | Head Length Projection (Decimal Inch): 1.9685 |
| Head Length Projection (mm): 50.00 | Maximum Hole Depth (Decimal Inch): 1.9685 |

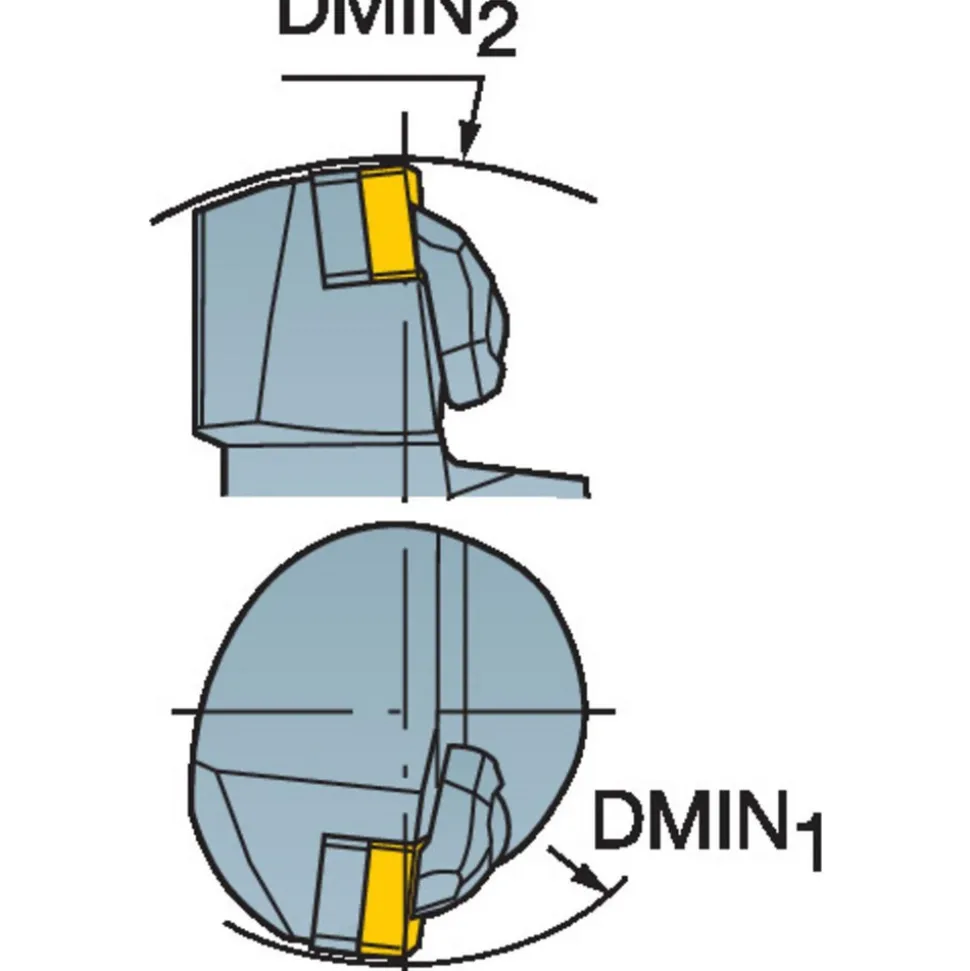

| Maximum Hole Depth (mm): 50.00 | Minimum Hole Diameter (Decimal Inch): 4.3307 |
| Minimum Hole Diameter (mm): 110.00 | UNSPSC Code: 23242100 |
| Country of Origin: Sweden | |
| System Size: C4 | |
| Cutting Direction: Right Hand | |
| Compatible Insert Style: CNMG 120408 | |
| Internal or External: Internal | |
| Insert Holding Method: Wedge | |
| Center to Cutting Edge (mm): 27.00 | |
| Center to Cutting Edge (Decimal Inch): 1.0630 | |
| Series: T-Max P | |
| Neck Diameter (mm): 40.00 | |
| Neck Diameter (Decimal Inch): 1.5748 | |
| Axial Rake Angle: -6.00 | |
| Radial Rake Angle (Degrees): -6 | |
| Head Connection Size: C4 | |
| Complete Insert Compatibility: CNMG 120408 | |
| Coolant Through: Yes | |
| Head Length Projection (Decimal Inch): 1.9685 | |
| Head Length Projection (mm): 50.00 | |
| Maximum Hole Depth (Decimal Inch): 1.9685 | |
| Maximum Hole Depth (mm): 50.00 | |
| Minimum Hole Diameter (Decimal Inch): 4.3307 | |
| Minimum Hole Diameter (mm): 110.00 | |
| UNSPSC Code: 23242100 | |
| Country of Origin: Sweden |
| MSC# | 47185350 |
| Mfr# | 5727532 |
