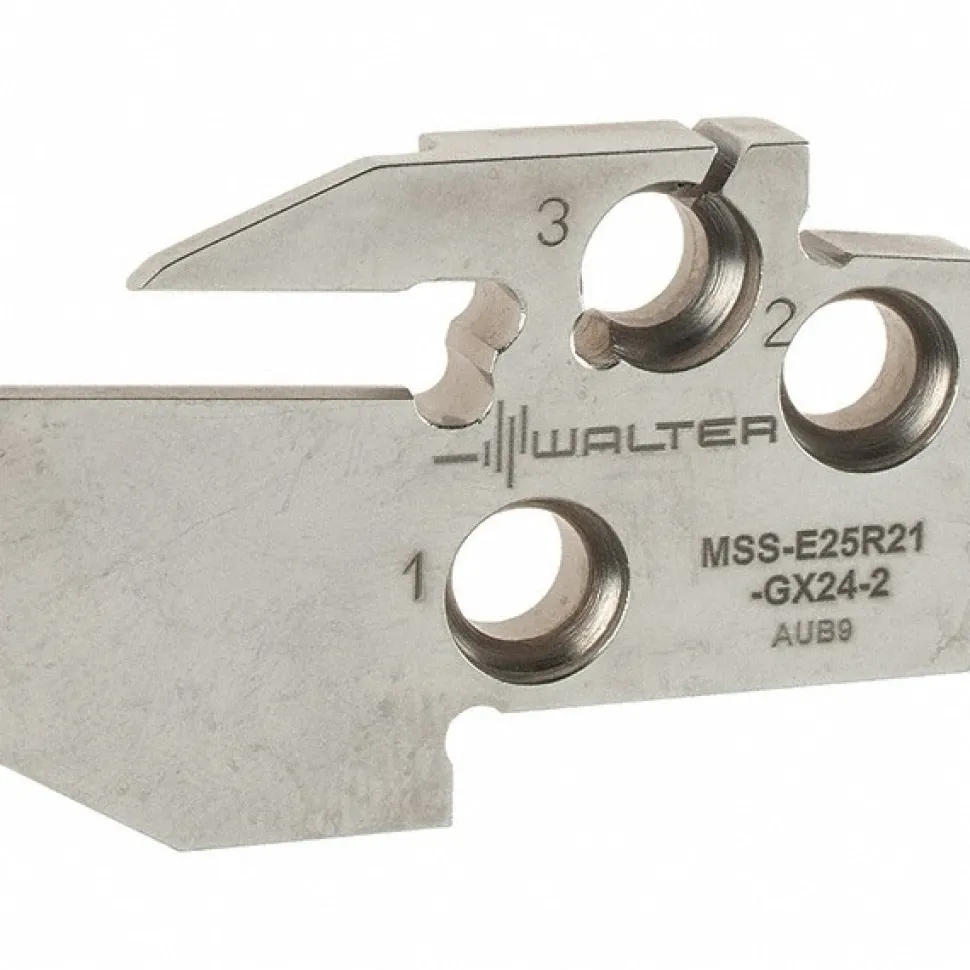

MSS-E Single End Right Hand Indexable Cutoff Blade
113,99 $
Specifications
| End Type: Single | Cutting Direction: Right Hand |
| Hand: Right Hand | Blade Style: MSS-E |
| Compatible Insert Style: GXF; GXE | Insert Holding Method: Screw |
| Maximum Workpiece Diameter (Decimal Inch): 3.1100 | Tool Block Style: NCBE 25-1616 R/L-GX 24-2-21 |
| Insert Style: GX24-2.. | Cutting Tool Application: Grooving |
| Standards: ISO | Maximum Depth of Cut (Decimal Inch): 0.8270 |
| Cutting Height (Decimal Inch): 1.0000 | Minimum Insert Width (Decimal Inch): 0.1180 |
| Insert Corner Radius (Decimal Inch): 0.0630 | Complete Insert Compatibility: GX24-2E300N030-GD3; GX24-2E300N150-RD4; GX24-2E300N03-UF4; GX24-2E300N02-CF6; GX24-2E300N03-UD6; GX24-2E300N030-UA4; GX24-2E300N020-CE4; GX24-2E300N030-UF4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N15-RD4; GX24-2E300N03-GD3; GX24-2E300N03-GD6 |
| Complete Tool Block/Toolholder Style Compatibility: NCBE 25-1616 R/L-GX 24-2-21 | Insert Width: 0.1180 |
| UNSPSC Code: 23241600 | Country of Origin: Germany |
| End Type: Single | |
| Cutting Direction: Right Hand | |
| Hand: Right Hand | |
| Blade Style: MSS-E | |
| Compatible Insert Style: GXF; GXE | |
| Insert Holding Method: Screw | |
| Maximum Workpiece Diameter (Decimal Inch): 3.1100 | |
| Tool Block Style: NCBE 25-1616 R/L-GX 24-2-21 | |
| Insert Style: GX24-2.. | |
| Cutting Tool Application: Grooving | |
| Standards: ISO | |
| Maximum Depth of Cut (Decimal Inch): 0.8270 | |
| Cutting Height (Decimal Inch): 1.0000 | |
| Minimum Insert Width (Decimal Inch): 0.1180 | |
| Insert Corner Radius (Decimal Inch): 0.0630 | |
| Complete Insert Compatibility: GX24-2E300N030-GD3; GX24-2E300N150-RD4; GX24-2E300N03-UF4; GX24-2E300N02-CF6; GX24-2E300N03-UD6; GX24-2E300N030-UA4; GX24-2E300N020-CE4; GX24-2E300N030-UF4; GX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N15-RD4; GX24-2E300N03-GD3; GX24-2E300N03-GD6 | |
| Complete Tool Block/Toolholder Style Compatibility: NCBE 25-1616 R/L-GX 24-2-21 | |
| Insert Width: 0.1180 | |
| UNSPSC Code: 23241600 | |
| Country of Origin: Germany |
| MSC# | 83877704 |
| Mfr# | 5009597 |
