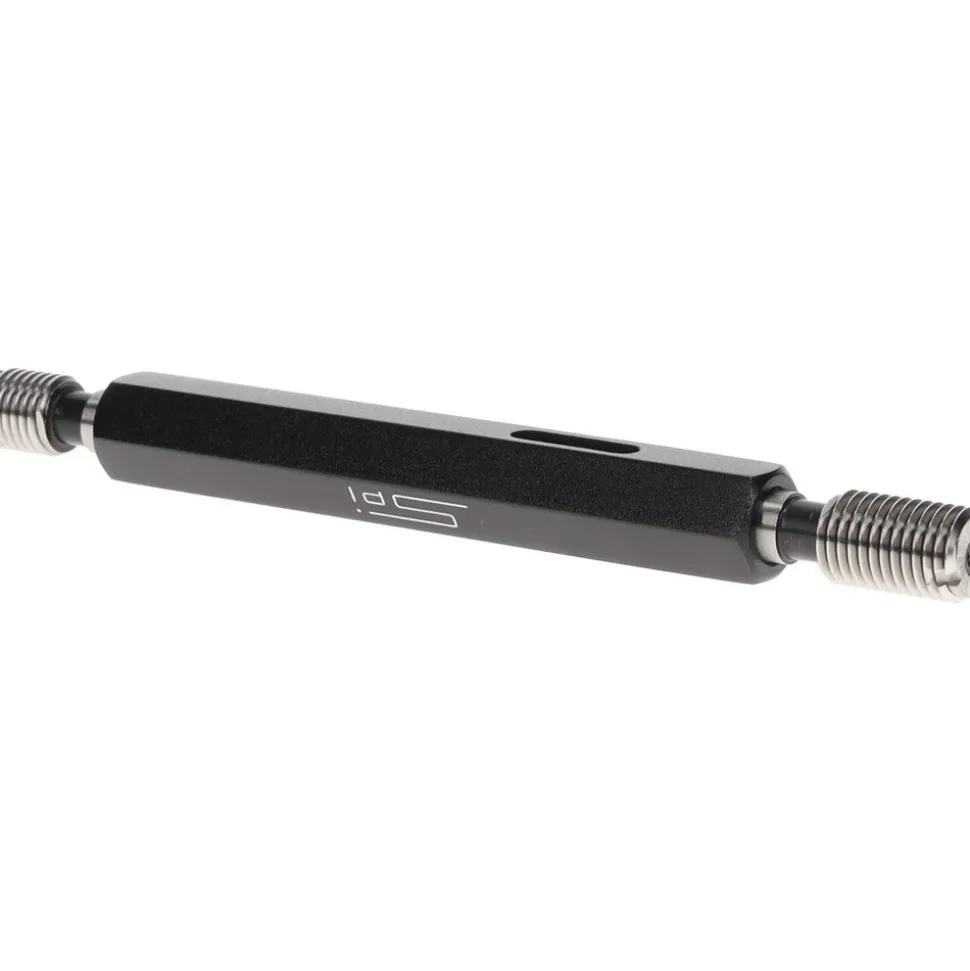

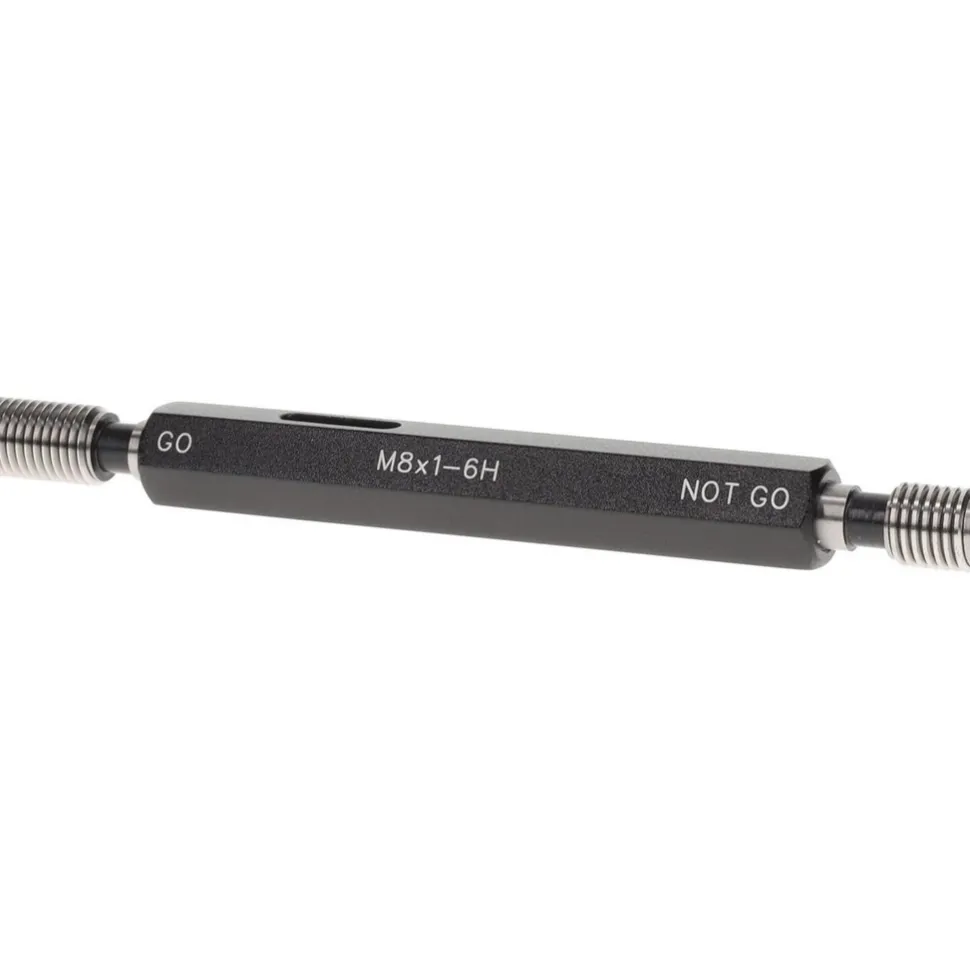

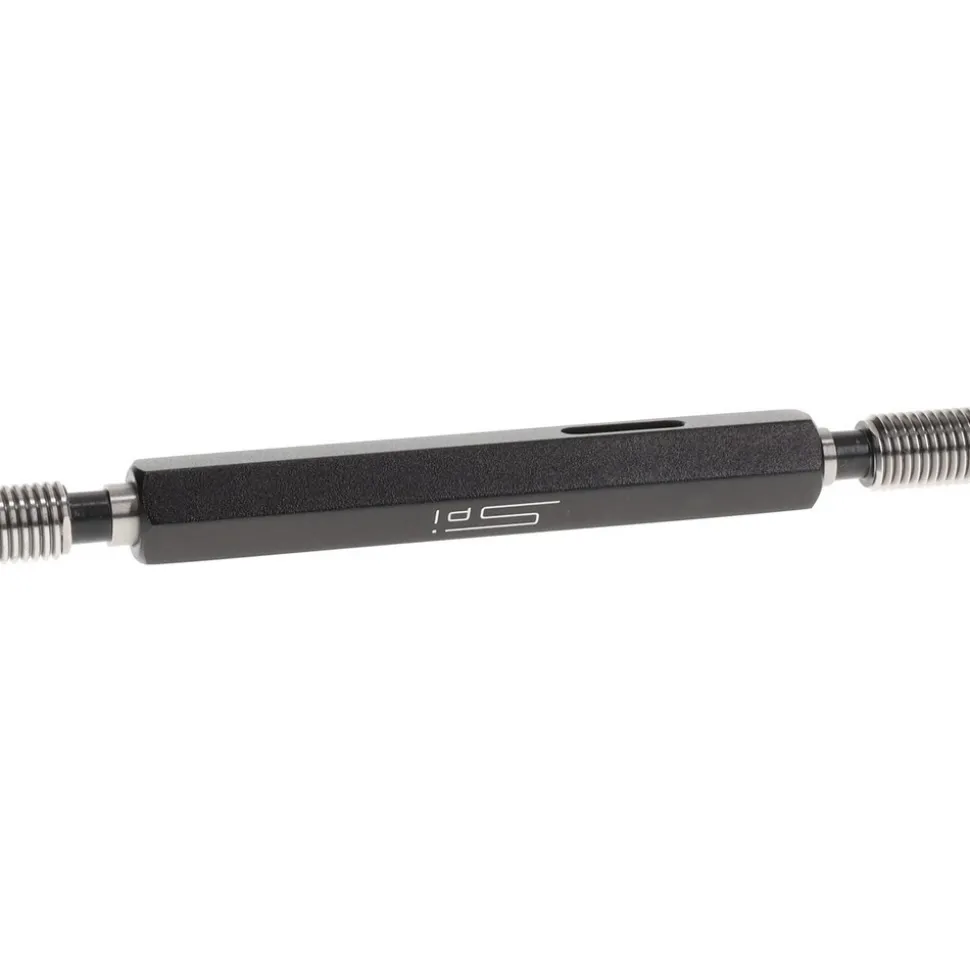

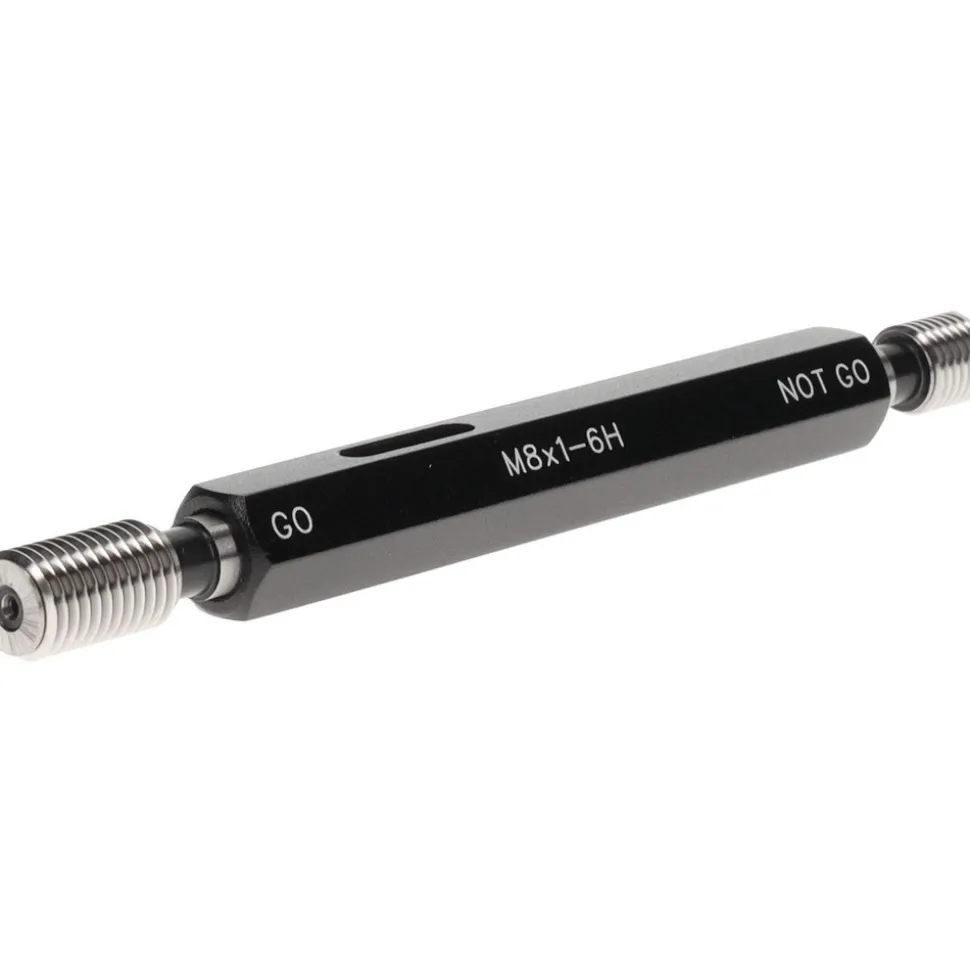

Plug Thread Gage: M8x1 Thread, 6H Class, Double End, Go & No Go

Plug Thread Gage: M8x1 Thread, 6H Class, Double End, Go & No Go

91,89 $

SKU: SKUyVBFgMNpU8 Categories: Inspecting, Detecting & Testing Instruments, Measuring & Inspecting, Shop All Products Tag: SPI Brand: SPI

Description
Reviews (0)

Specifications

Go/No Go: Go; No Go	Thread Size: M8x1
Material: Tool Steel	Classification: 6H
Go Pitch Diameter (Inch): 0.2894	Go Pitch Diameter (mm): 7.3500
No Go Pitch Diameter (mm): 7.5000	No Go Pitch Diameter (Decimal Inch): 0.29530
Handle Size: 1	Handle Included: Yes
Overall Length (Decimal Inch): 4.0748	Overall Length (mm): 103.50
Thread Direction: Right Hand	Calibrated: No
Traceability Certification Included: Inspection Certificate Traceable to NIST	Standards: ASME B1.16M
Single Or Double End: Double	Thread Standard: Metric
Includes: Handle	UNSPSC Code: 41111619
Country of Origin: India
Go/No Go: Go; No Go
Thread Size: M8x1
Material: Tool Steel
Classification: 6H
Go Pitch Diameter (Inch): 0.2894
Go Pitch Diameter (mm): 7.3500
No Go Pitch Diameter (mm): 7.5000
No Go Pitch Diameter (Decimal Inch): 0.29530
Handle Size: 1
Handle Included: Yes
Overall Length (Decimal Inch): 4.0748
Overall Length (mm): 103.50
Thread Direction: Right Hand
Calibrated: No
Traceability Certification Included: Inspection Certificate Traceable to NIST
Standards: ASME B1.16M
Single Or Double End: Double
Thread Standard: Metric
Includes: Handle
UNSPSC Code: 41111619
Country of Origin: India
