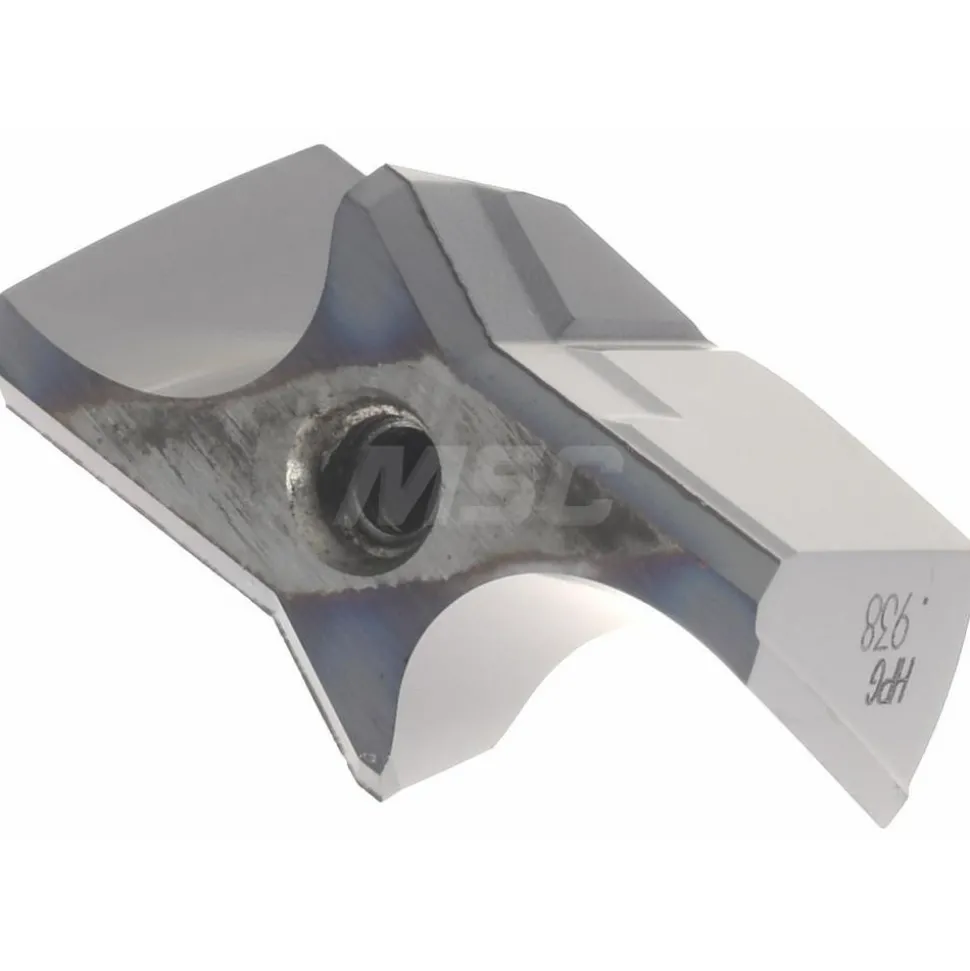

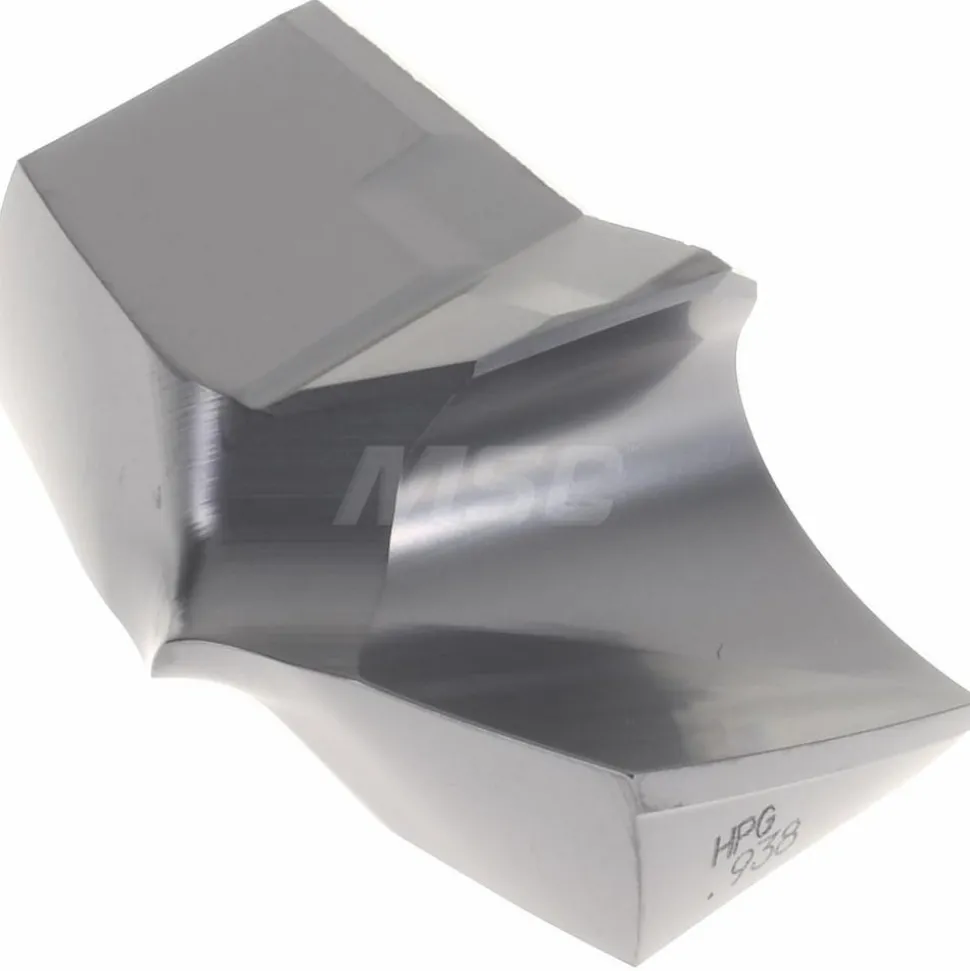

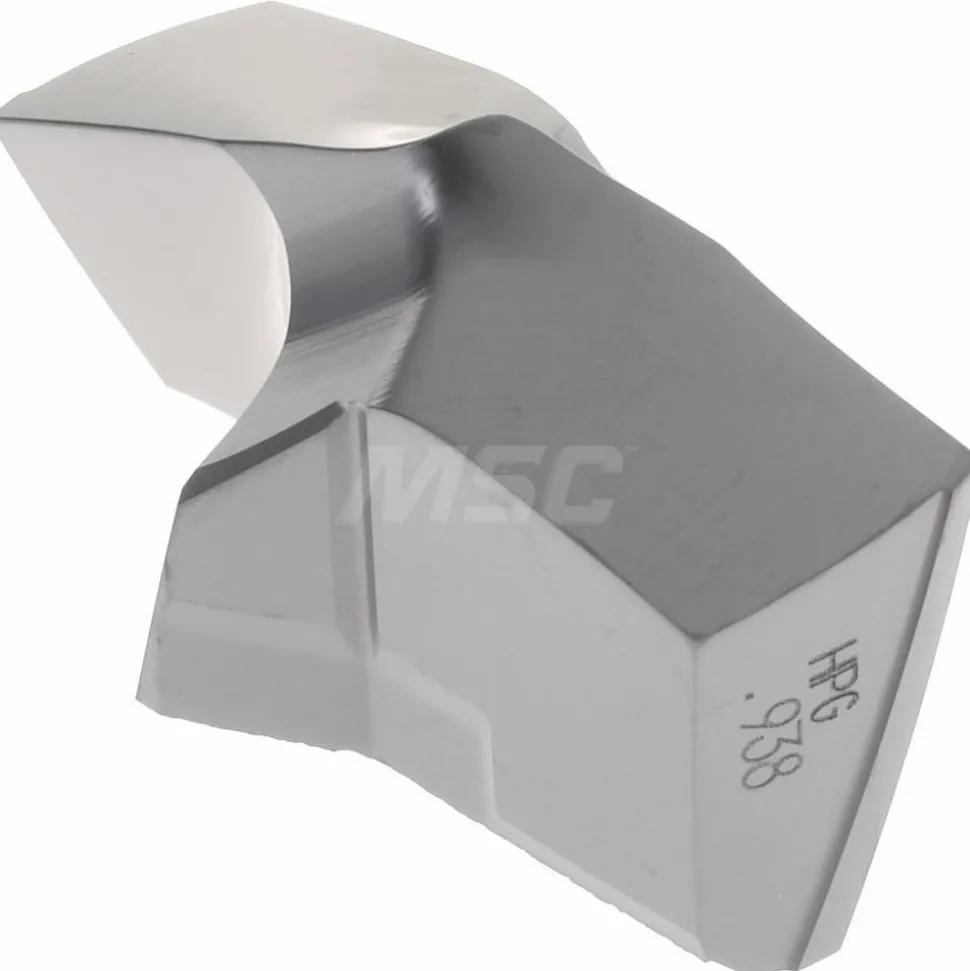

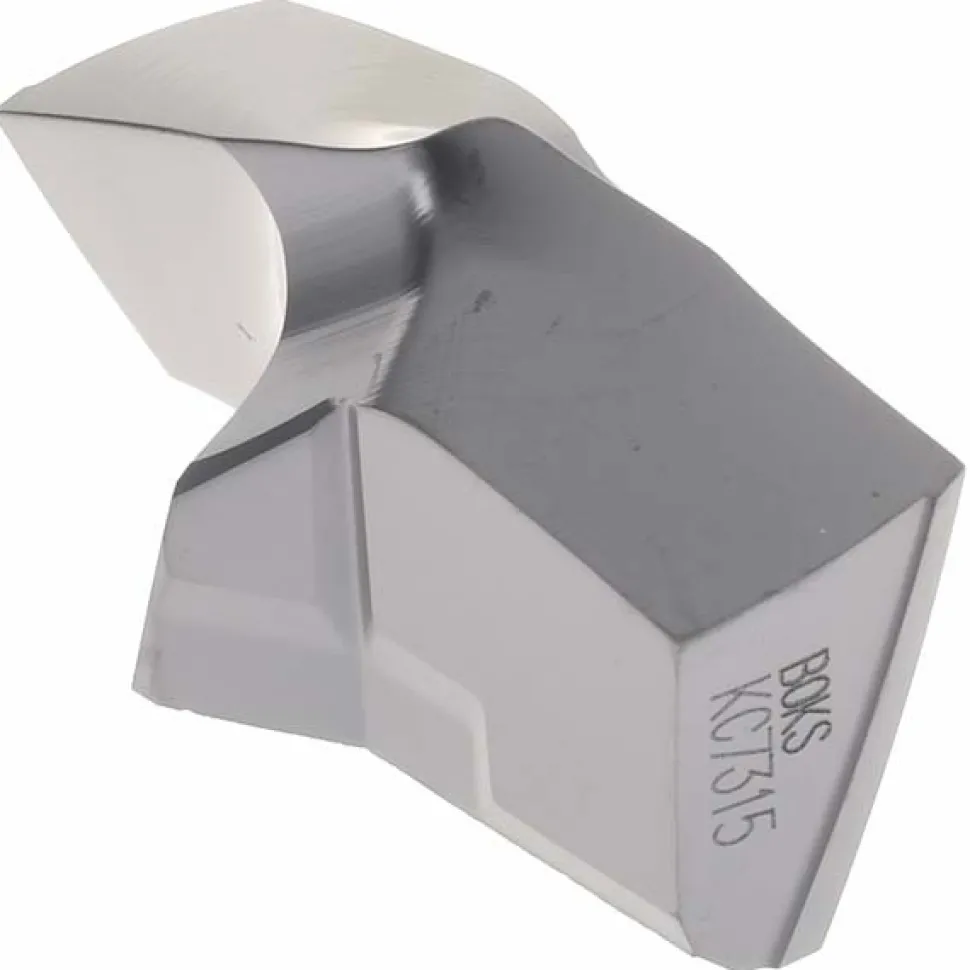

Replaceable Drill Tip: KSEM0938HPG KC7315, 0.9374″ Dia, 23.81 mm Dia, 140 deg Point
128,89 $
Specifications
| Cutting Diameter (Inch): 15/16 | Cutting Diameter (Decimal Inch): 0.9374 |
| Cutting Diameter (mm): 23.81 | Tip Material: Solid Carbide |
| Manufacturer Grade: KC7315 | Material Grade: Fine Grain |
| Series: KSEM | Coating Process: PVD |
| Insert Geometry: HPG | Insert Seat Size: 4 |
| Functional Length (Decimal Inch): 0.4688 | Primary Workpiece Material: Cast Iron; Steel |
| Primary Workpiece Material Code: P; K | Height (Decimal Inch): 0.4688 |
| Overall Length/Projection (Decimal Inch): 0.4688 | Drill Point Angle: 140 |
| Flute Type: Helical | Insert Holding Method: Clamp |
| ISO Number: KSEM0938HPG | Coolant Through: Yes |
| Flute Length (mm): 12.00 | Point Type: Standard |
| Spiral Type: Regular Spiral | Height (Inch): 15/32 |
| Style: KSEM | Applications: Drilling; ToolDimensions:2flute/2margin/coolant; ThroughCoolant:MQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant; Drilling:InclinedExit; Drilling:StackedPlates |
| UNSPSC Code: 23242105 | Coating/Finish: TiAlN |
| Included Angle Degree: 140 | Number Of Flutes: 2 |
| Country of Origin: Germany | |
| Cutting Diameter (Inch): 15/16 | |
| Cutting Diameter (Decimal Inch): 0.9374 | |
| Cutting Diameter (mm): 23.81 | |
| Tip Material: Solid Carbide | |
| Manufacturer Grade: KC7315 | |
| Material Grade: Fine Grain | |
| Series: KSEM | |
| Coating Process: PVD | |
| Insert Geometry: HPG | |
| Insert Seat Size: 4 | |
| Functional Length (Decimal Inch): 0.4688 | |
| Primary Workpiece Material: Cast Iron; Steel | |
| Primary Workpiece Material Code: P; K | |
| Height (Decimal Inch): 0.4688 | |
| Overall Length/Projection (Decimal Inch): 0.4688 | |
| Drill Point Angle: 140 | |
| Flute Type: Helical | |
| Insert Holding Method: Clamp | |
| ISO Number: KSEM0938HPG | |
| Coolant Through: Yes | |
| Flute Length (mm): 12.00 | |
| Point Type: Standard | |
| Spiral Type: Regular Spiral | |
| Height (Inch): 15/32 | |
| Style: KSEM | |
| Applications: Drilling; ToolDimensions:2flute/2margin/coolant; ThroughCoolant:MQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant; Drilling:InclinedExit; Drilling:StackedPlates | |
| UNSPSC Code: 23242105 | |
| Coating/Finish: TiAlN | |
| Included Angle Degree: 140 | |
| Number Of Flutes: 2 | |
| Country of Origin: Germany |
| MSC# | 01715853 |
| Mfr# | 2499865 |
| Big Book# | 168 |
