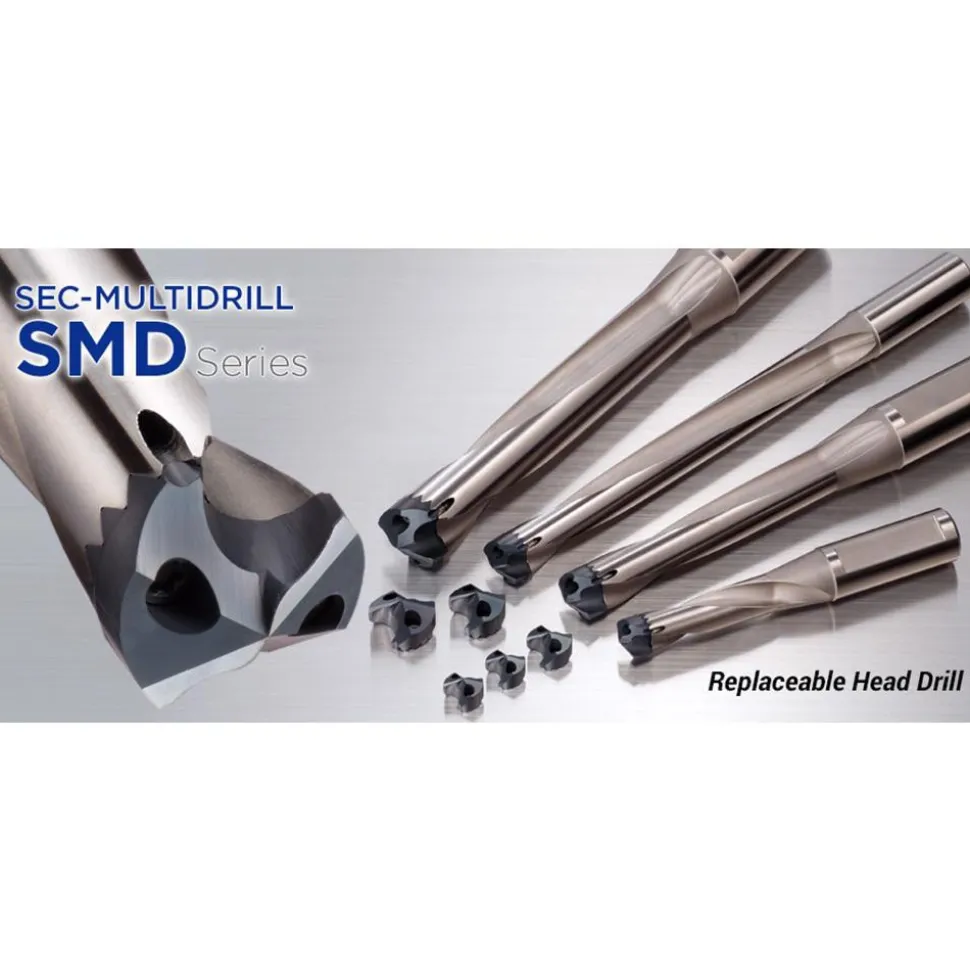

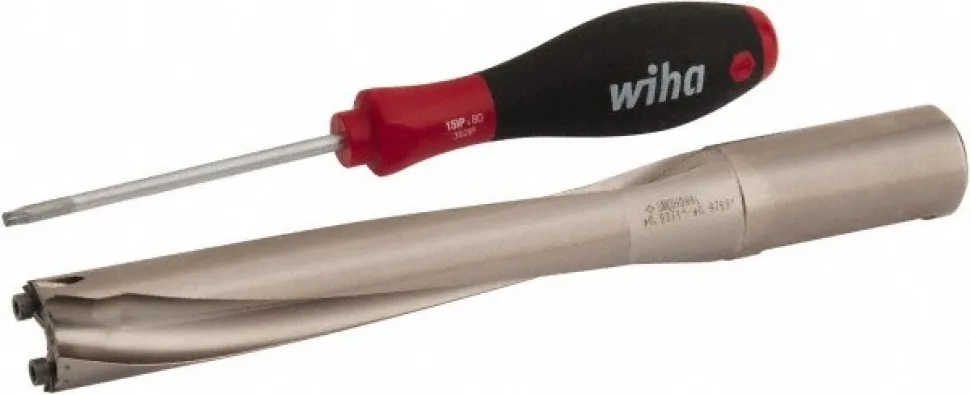

Replaceable-Tip Drill: 23.81 to 24.8 mm Dia, 5.315″ Max Depth, 1″ Weldon Flat Shank
124,89 $
Specifications
| Minimum Drill Diameter (Decimal Inch): 0.9374 | Minimum Drill Diameter (mm): 23.81 |
| Maximum Drill Diameter (mm): 24.80 | Maximum Drill Diameter (Decimal Inch): 0.9764 |
| Drill Depth by Diameter Ratio: 5xD | Maximum Drill Depth (Decimal Inch): 5.3150 |
| Shank Type: Weldon Flat | Shank Diameter (Inch): 1 |
| Shank Diameter (Decimal Inch): 1.0000 | Tool Material: Steel |
| Compatible Insert Style: SMDT | Overall Length (Decimal Inch): 8.6610 |
| Series: SMD | Toolholder Style: SMDH |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: UNITED STATES | |
| Minimum Drill Diameter (Decimal Inch): 0.9374 | |
| Minimum Drill Diameter (mm): 23.81 | |
| Maximum Drill Diameter (mm): 24.80 | |
| Maximum Drill Diameter (Decimal Inch): 0.9764 | |
| Drill Depth by Diameter Ratio: 5xD | |
| Maximum Drill Depth (Decimal Inch): 5.3150 | |
| Shank Type: Weldon Flat | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Tool Material: Steel | |
| Compatible Insert Style: SMDT | |
| Overall Length (Decimal Inch): 8.6610 | |
| Series: SMD | |
| Toolholder Style: SMDH | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: UNITED STATES |
| MSC# | 71524474 |
| Mfr# | 5L00W15 |
