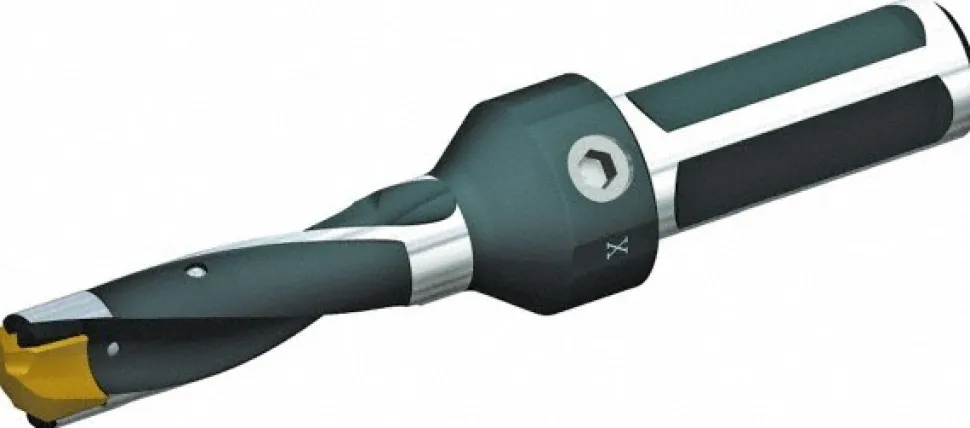

Replaceable-Tip Drill: 28.17 to 28.67 mm Dia, 89.92 mm Max Depth, 31.75 mm Weldon Flat Shank
Original price was: 728,00 $.132,89 $Current price is: 132,89 $.
Specifications
| Minimum Drill Diameter (Decimal Inch): 1.1091 | Minimum Drill Diameter (mm): 28.17 |
| Maximum Drill Diameter (mm): 28.67 | Maximum Drill Diameter (Decimal Inch): 1.1287 |
| Drill Depth by Diameter Ratio: 3xD | Maximum Drill Depth (mm): 89.92 |
| Maximum Drill Depth (Decimal Inch): 3.5400 | Shank Type: Weldon Flat |
| Insert Seat Size: 7 | Shank Diameter (mm): 31.75 |
| Compatible Insert Style: KSEM1109 | Overall Length (mm): 228.60 |
| Overall Length (Decimal Inch): 9.0000 | Series: KSEM |
| Coolant Through: Yes | UNSPSC Code: 23291502 |
| Country of Origin: UNITED STATES | |
| Minimum Drill Diameter (Decimal Inch): 1.1091 | |
| Minimum Drill Diameter (mm): 28.17 | |
| Maximum Drill Diameter (mm): 28.67 | |
| Maximum Drill Diameter (Decimal Inch): 1.1287 | |
| Drill Depth by Diameter Ratio: 3xD | |
| Maximum Drill Depth (mm): 89.92 | |
| Maximum Drill Depth (Decimal Inch): 3.5400 | |
| Shank Type: Weldon Flat | |
| Insert Seat Size: 7 | |
| Shank Diameter (mm): 31.75 | |
| Compatible Insert Style: KSEM1109 | |
| Overall Length (mm): 228.60 | |
| Overall Length (Decimal Inch): 9.0000 | |
| Series: KSEM | |
| Coolant Through: Yes | |
| UNSPSC Code: 23291502 | |
| Country of Origin: UNITED STATES |
| MSC# | 02734994 |
| Mfr# | 1613657 |
