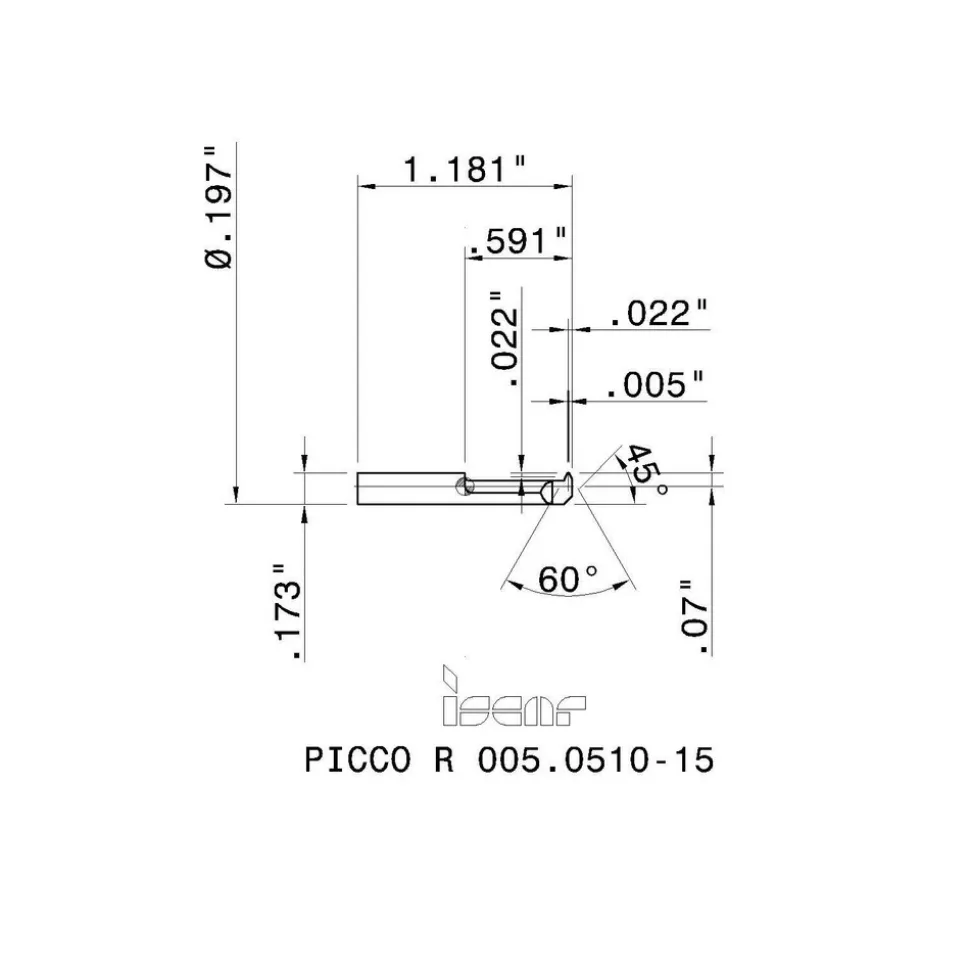

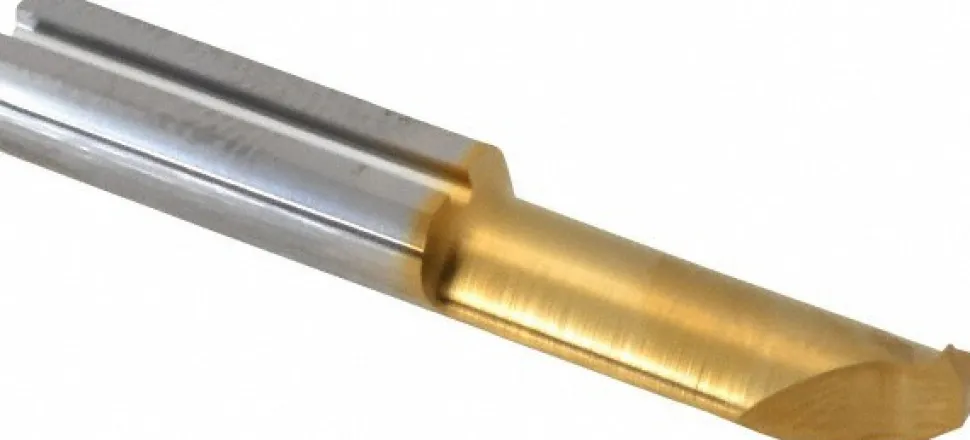

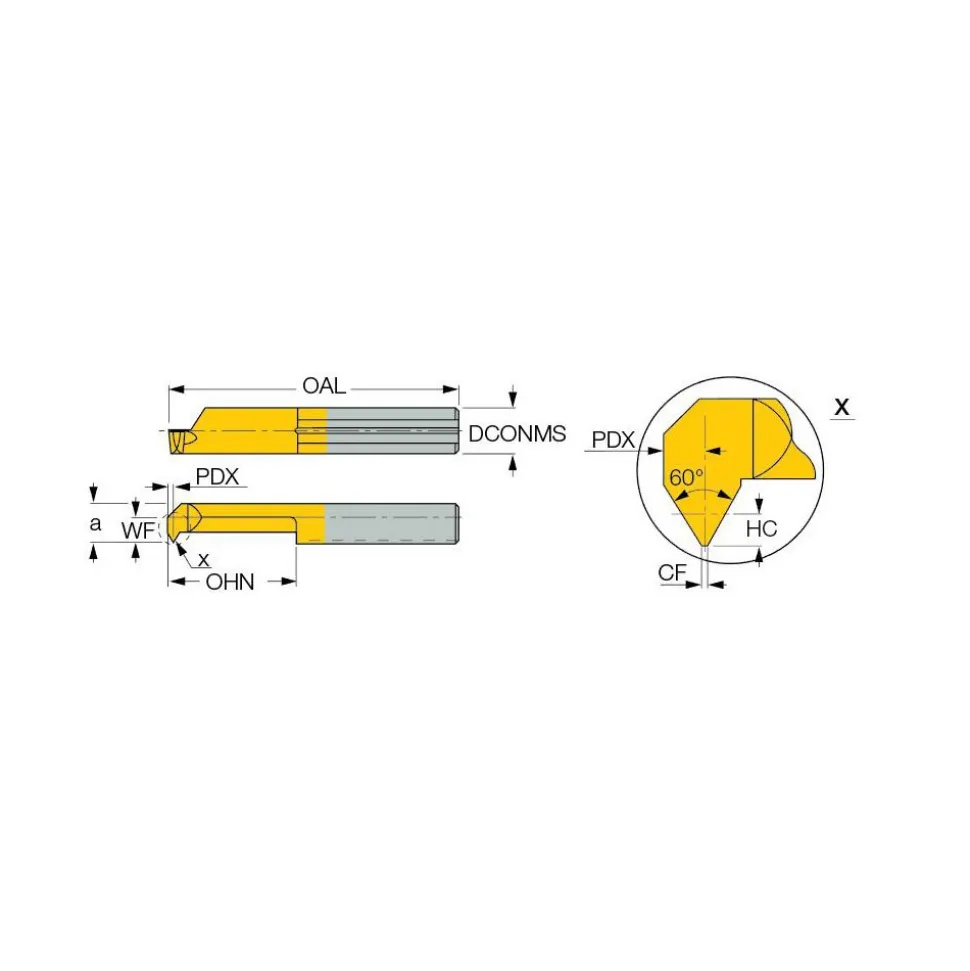

Single Point Threading Tool: 0.1969″ Min Thread Dia, 20 to 24 TPI, 0.5512″ Cut Depth, Internal, Solid Carbide
46,99 $
Specifications
| Thread Type: Internal | Material: Solid Carbide |
| Profile Angle: 60 | Threading Diameter (Decimal Inch): 0.1969 |
| Threading Diameter (mm): 5.00 | Cutting Depth (mm): 14.00 |
| Cutting Depth (Decimal Inch): 0.5512 | Maximum Threads Per Inch: 24 |
| Minimum Pitch (mm): 1.00 | Maximum Pitch (mm): 1.00 |
| Minimum Threads Per Inch: 20 | Shank Diameter (mm): 5.00 |
| Thread Direction: Right Hand | Projection from Edge (mm): 0.60 |
| Projection from Edge (Decimal Inch): 0.0200 | Overall Length (mm): 30.00 |
| Flat Width (mm): 0.12 | Flat Width (Decimal Inch): 0.0050 |
| Projection from Center (mm): 1.90 | Coating/Finish: Titanium Nitride |
| Coolant Through: No | UNSPSC Code: 23242117 |
| Country of Origin: Israel | |
| Thread Type: Internal | |
| Material: Solid Carbide | |
| Profile Angle: 60 | |
| Threading Diameter (Decimal Inch): 0.1969 | |
| Threading Diameter (mm): 5.00 | |
| Cutting Depth (mm): 14.00 | |
| Cutting Depth (Decimal Inch): 0.5512 | |
| Maximum Threads Per Inch: 24 | |
| Minimum Pitch (mm): 1.00 | |
| Maximum Pitch (mm): 1.00 | |
| Minimum Threads Per Inch: 20 | |
| Shank Diameter (mm): 5.00 | |
| Thread Direction: Right Hand | |
| Projection from Edge (mm): 0.60 | |
| Projection from Edge (Decimal Inch): 0.0200 | |
| Overall Length (mm): 30.00 | |
| Flat Width (mm): 0.12 | |
| Flat Width (Decimal Inch): 0.0050 | |
| Projection from Center (mm): 1.90 | |
| Coating/Finish: Titanium Nitride | |
| Coolant Through: No | |
| UNSPSC Code: 23242117 | |
| Country of Origin: Israel |
| MSC# | 52727864 |
| Mfr# | 6402436 |
