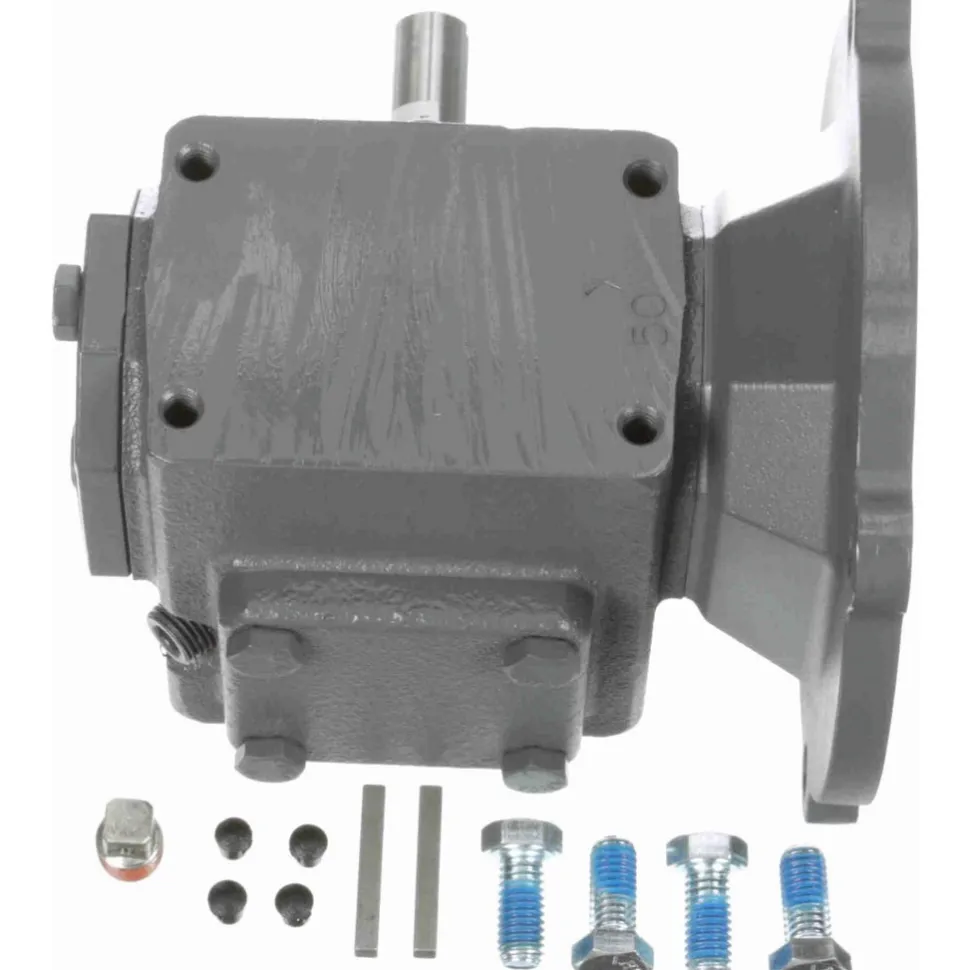

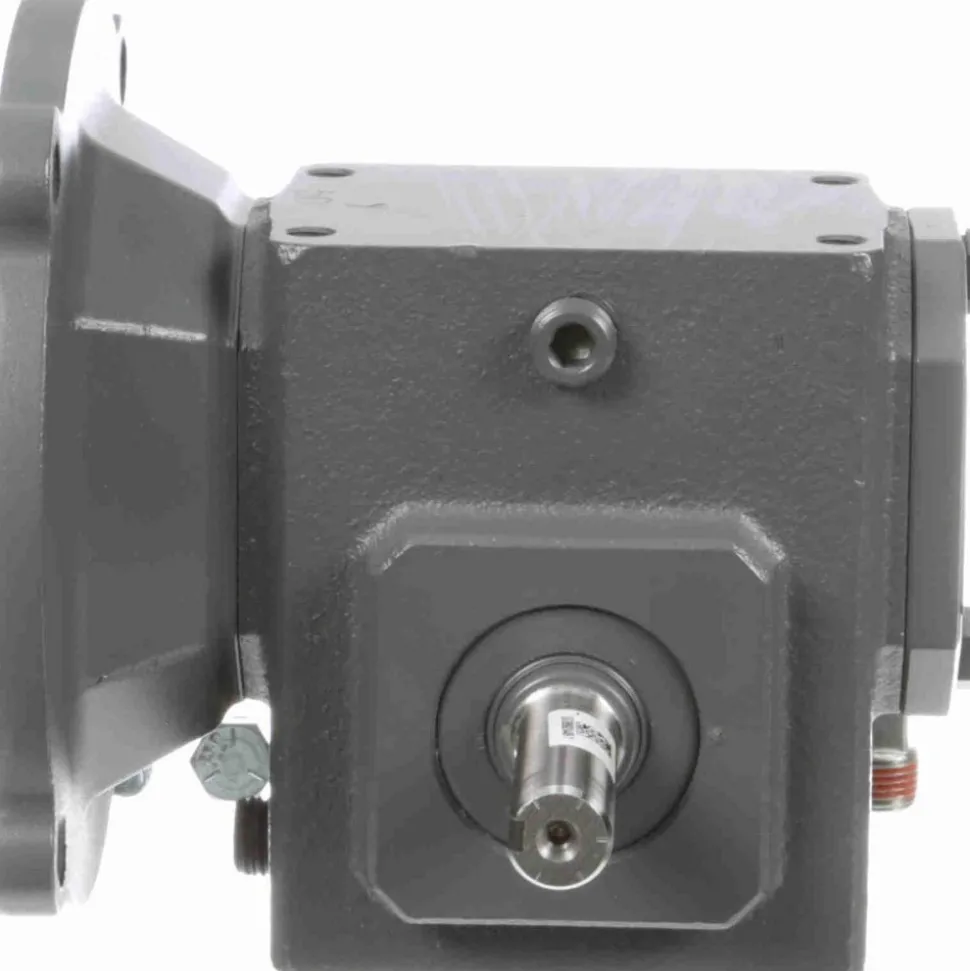

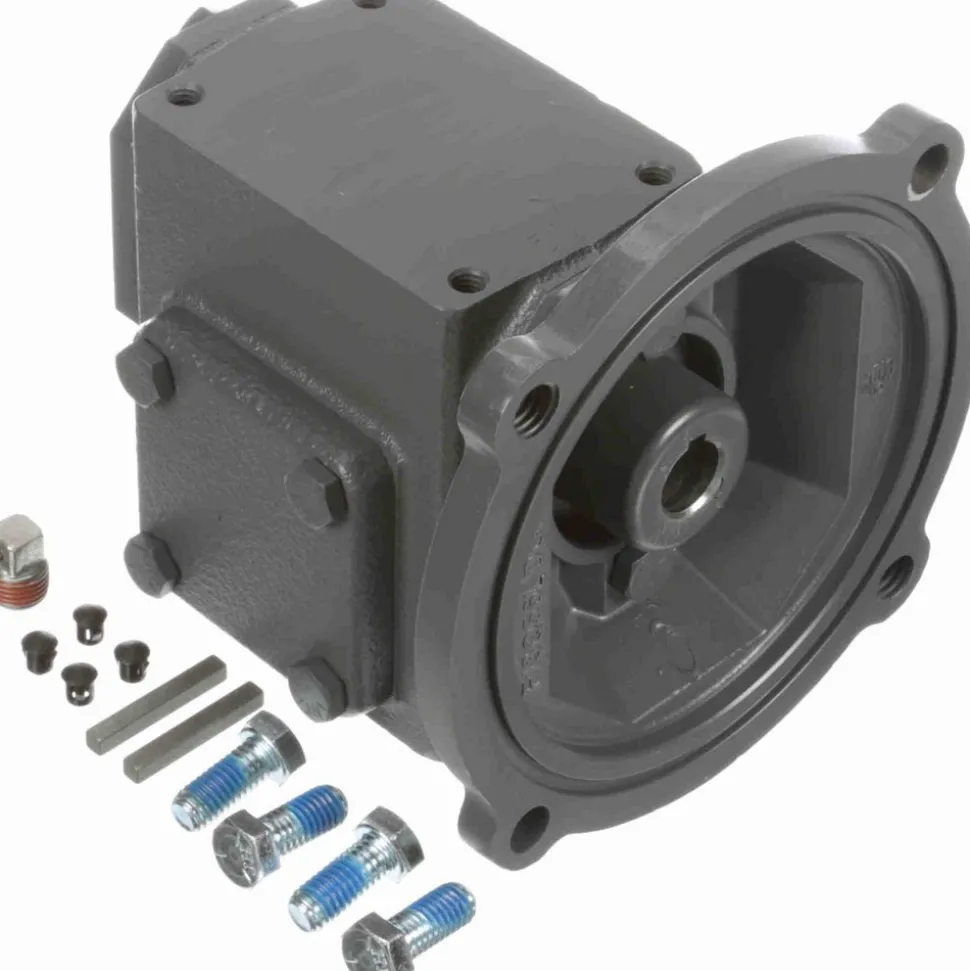

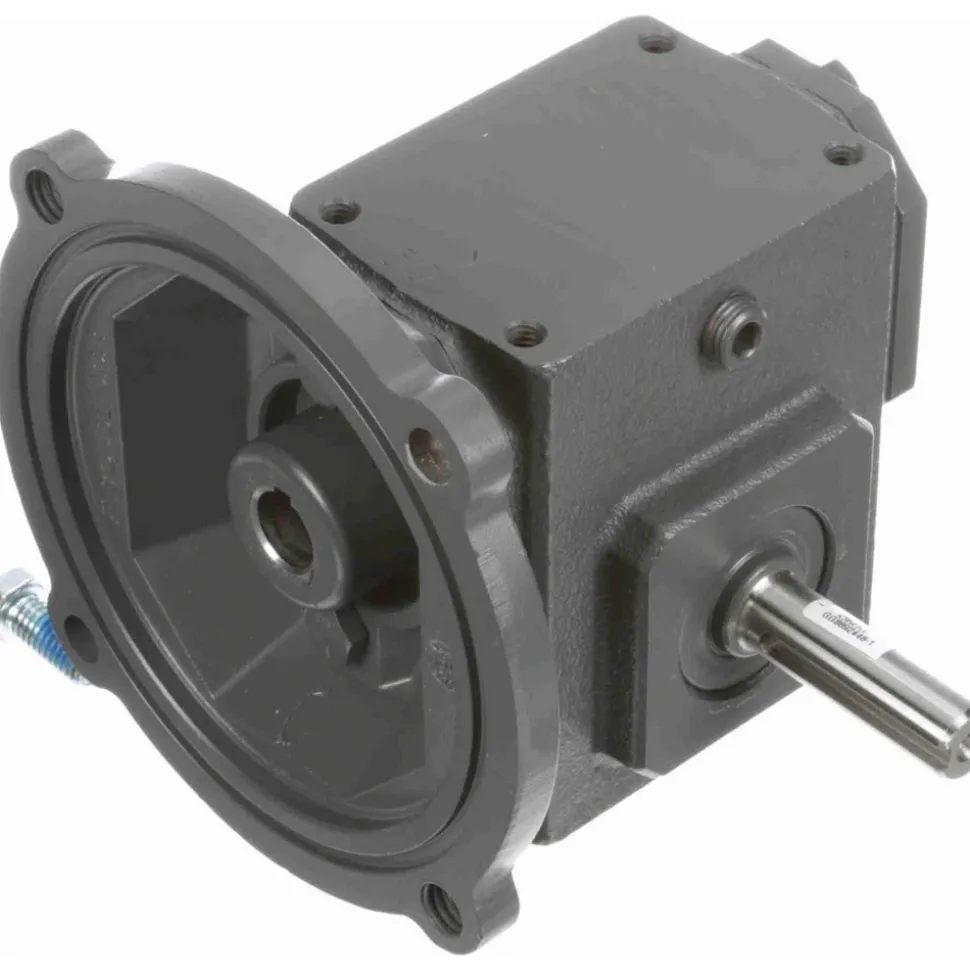

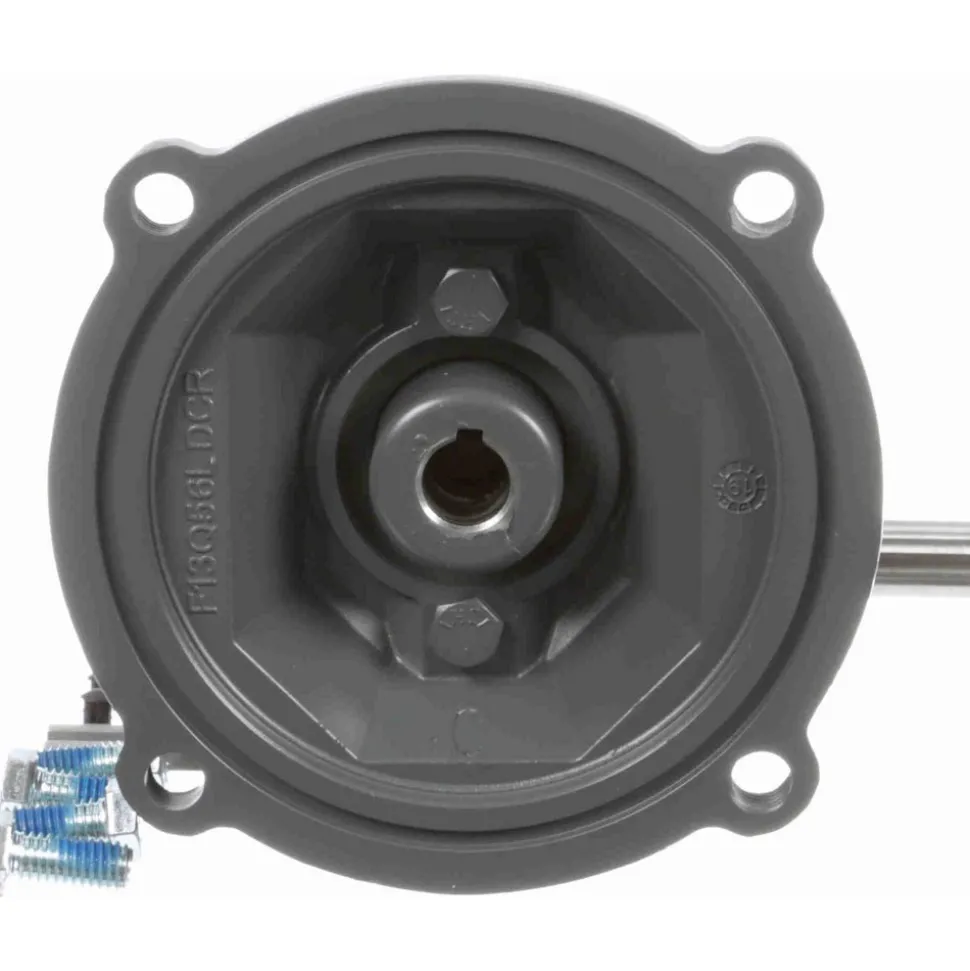

Speed Reducer: C-Face, 1.33″ Center to Center Shaft, 50:1, 3/4 hp Max Input, Worm Gear
124,99 $
Specifications
| Centerline Distance: 1.333 | Reducer Type: C-Face |
| Shaft Type: Single | Ratio: 50:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 1.3300 in |
| Speed Ratio: 50:1 | Maximum Input Horsepower: 3/4 |
| Nema/Iec Frame Size: 56C NEMA | Maximum Input Speed: 1750.0 |
| Minimum Torque (In/Lb): 223.0 | Maximum Torque (In/Lb.): 223.00 |
| Bore Diameter (Decimal Inch): 0.6250 | Shaft Diameter (Decimal Inch): 0.6250 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Gear Material: Bronze | Overall Length (Decimal Inch): 3.8000 |
| Standards: NEMA | Minimum Input Horsepower: 0.25 |
| Output RPM at 1750 Input: 35.0 | Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 223 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 223 | Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 223 |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 223 | Height (Decimal Inch): 4.6600 |
| Length (Decimal Inch – 4 Decimals): 4.0000 | Width (Decimal Inch – 4 Decimals): 2.8800 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 1.333 | |
| Reducer Type: C-Face | |
| Shaft Type: Single | |
| Ratio: 50:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 1.3300 in | |
| Speed Ratio: 50:1 | |
| Maximum Input Horsepower: 3/4 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Input Speed: 1750.0 | |
| Minimum Torque (In/Lb): 223.0 | |
| Maximum Torque (In/Lb.): 223.00 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Shaft Diameter (Decimal Inch): 0.6250 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Gear Material: Bronze | |
| Overall Length (Decimal Inch): 3.8000 | |
| Standards: NEMA | |
| Minimum Input Horsepower: 0.25 | |
| Output RPM at 1750 Input: 35.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 223 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 223 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 223 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 223 | |
| Height (Decimal Inch): 4.6600 | |
| Length (Decimal Inch – 4 Decimals): 4.0000 | |
| Width (Decimal Inch – 4 Decimals): 2.8800 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 08432908 |
| Mfr# | XB1079 |
| Big Book# | 3716 |
