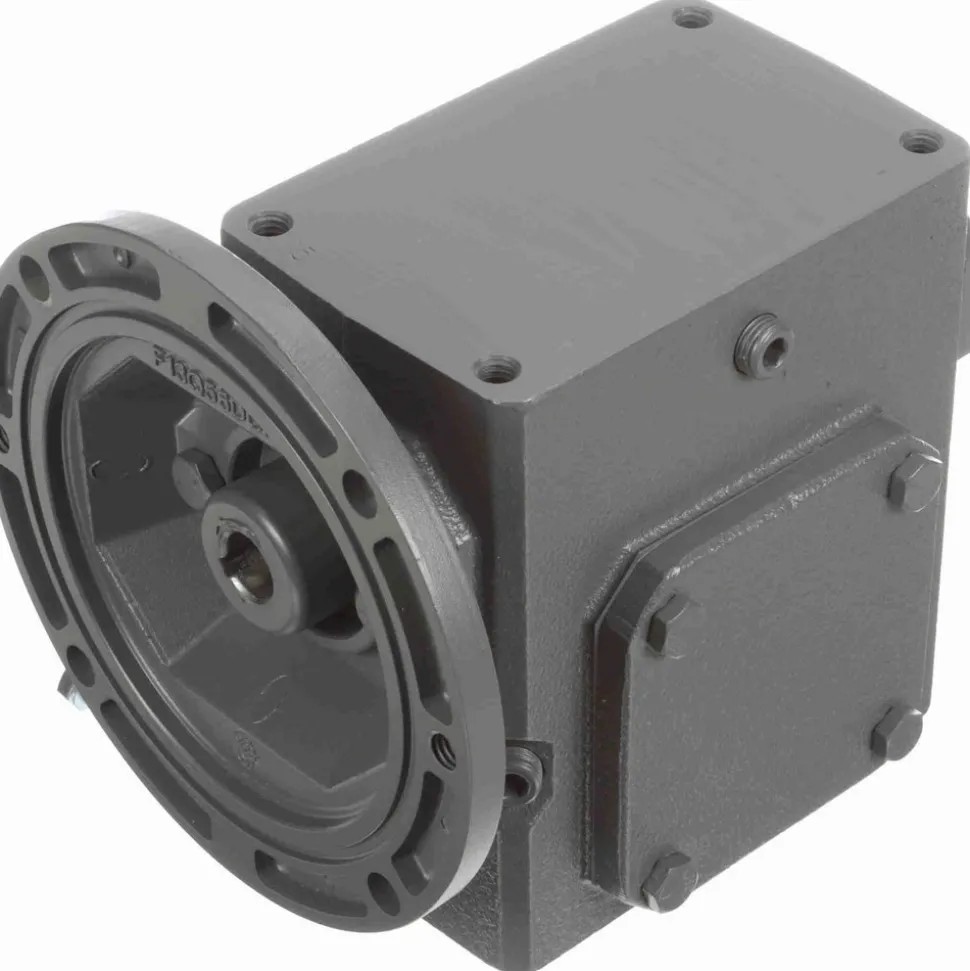

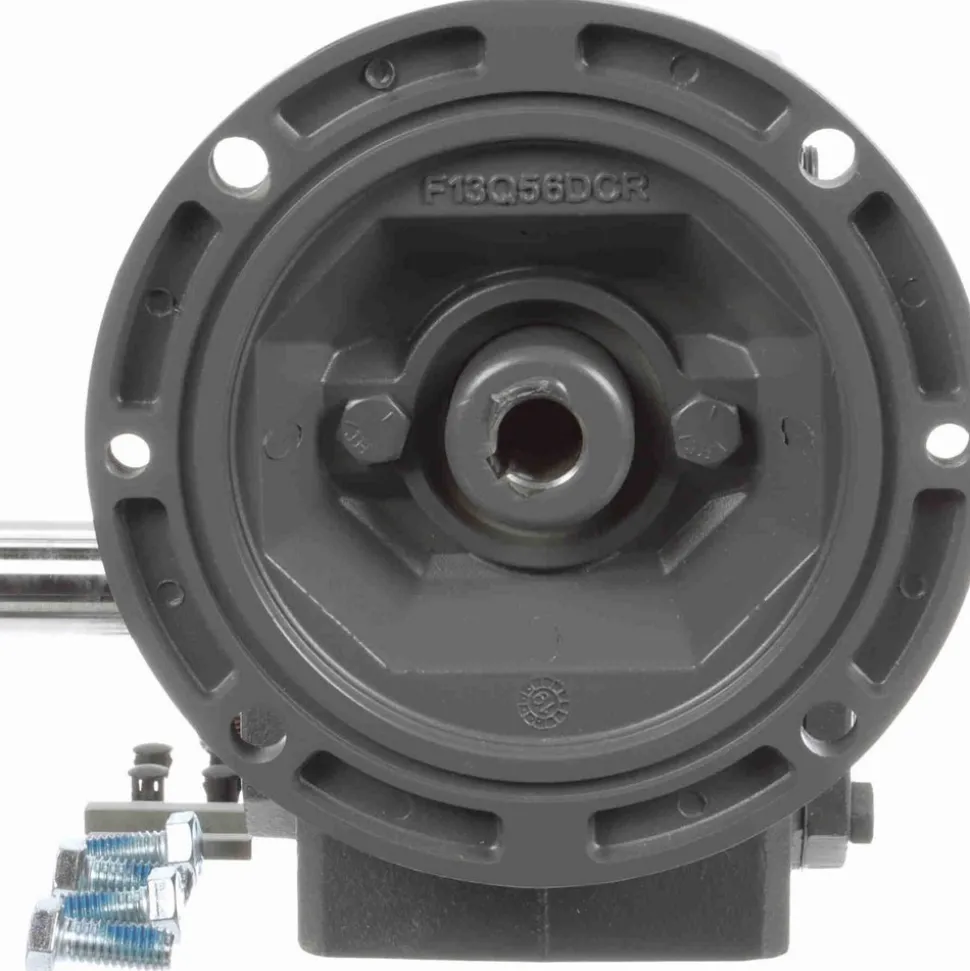

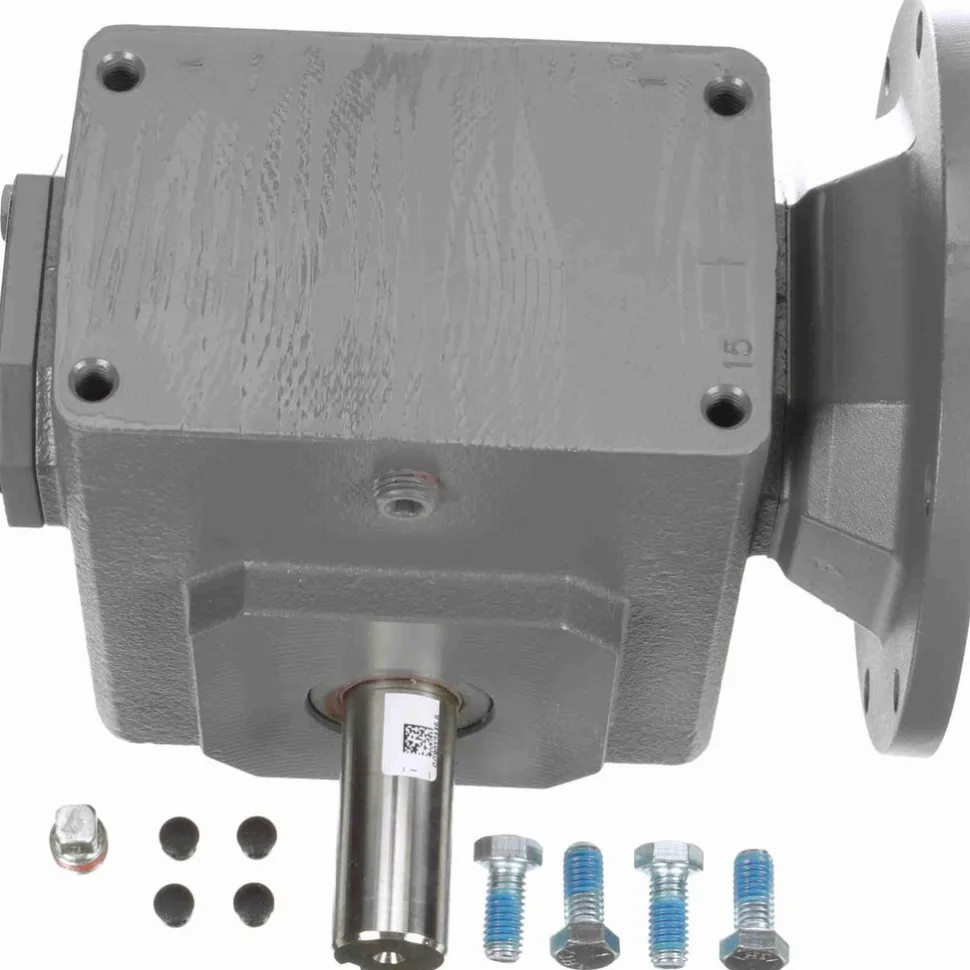

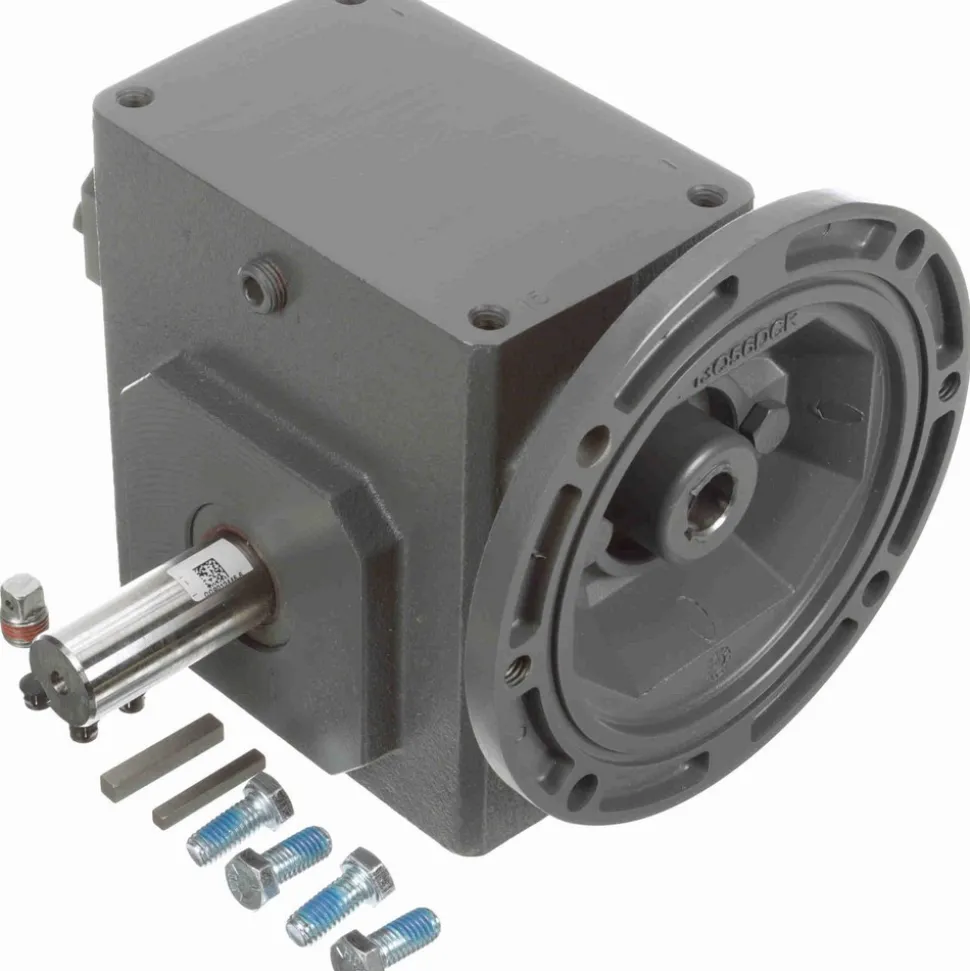

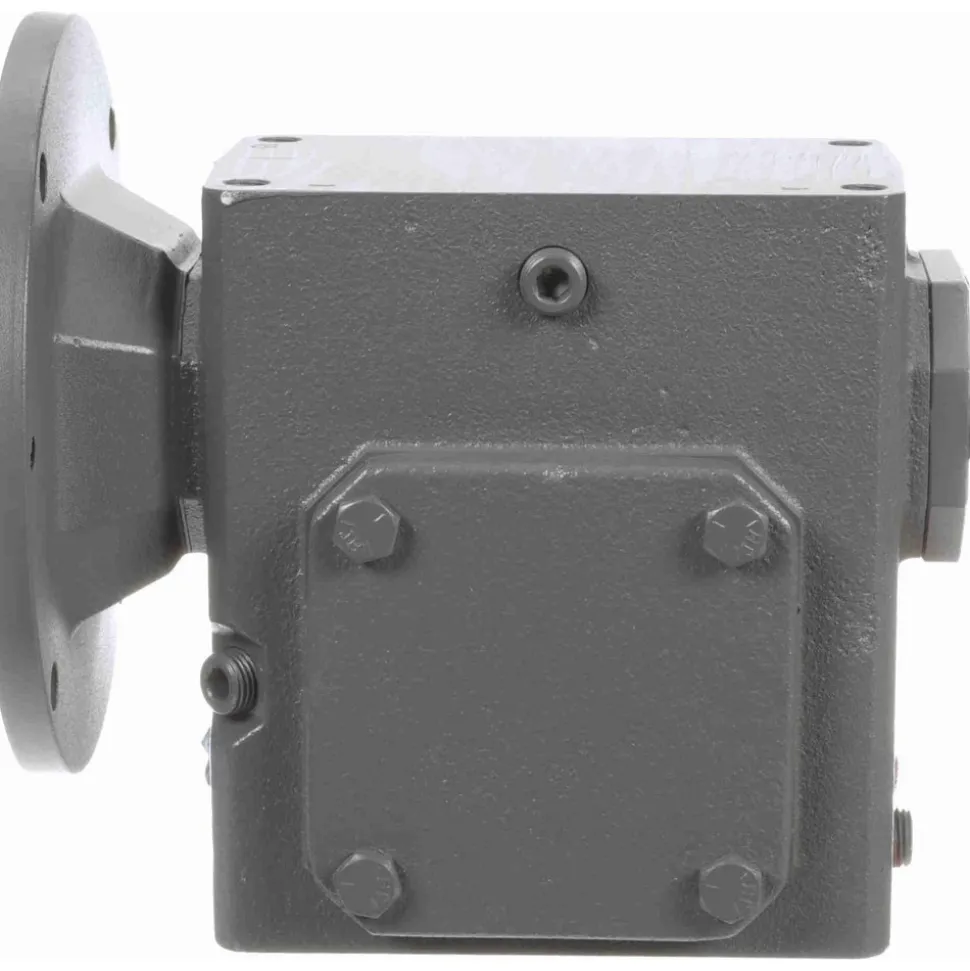

Speed Reducer: C-Face, 2.06″ Center to Center Shaft, 15:1, 3/4 hp Max Input, Worm Gear
134,99 $
Specifications
| Centerline Distance: 2.060 | Reducer Type: C-Face |
| Shaft Type: Single | Ratio: 15:1 |
| Shaft Orientation: Left Angle | Center-to-center Shaft Distance: 2.0600 in |
| Speed Ratio: 15:1 | Maximum Input Horsepower: 3/4 |
| Nema/Iec Frame Size: 56C NEMA | Maximum Input Speed: 1750.0 |
| Minimum Torque (In/Lb): 118.0 | Maximum Torque (In/Lb.): 356.00 |
| Bore Diameter (Decimal Inch): 0.6250 | Shaft Diameter (Decimal Inch): 1.0000 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Gear Material: Bronze | Overall Length (Decimal Inch): 5.8000 |
| Standards: NEMA | Minimum Input Horsepower: 0.25 |
| Output RPM at 1750 Input: 117.0 | Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 237 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 156 | Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 356 |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 118 | Height (Decimal Inch): 6.3800 |
| Length (Decimal Inch – 4 Decimals): 5.5000 | Width (Decimal Inch – 4 Decimals): 3.7500 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 2.060 | |
| Reducer Type: C-Face | |
| Shaft Type: Single | |
| Ratio: 15:1 | |
| Shaft Orientation: Left Angle | |
| Center-to-center Shaft Distance: 2.0600 in | |
| Speed Ratio: 15:1 | |
| Maximum Input Horsepower: 3/4 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Input Speed: 1750.0 | |
| Minimum Torque (In/Lb): 118.0 | |
| Maximum Torque (In/Lb.): 356.00 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Shaft Diameter (Decimal Inch): 1.0000 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Gear Material: Bronze | |
| Overall Length (Decimal Inch): 5.8000 | |
| Standards: NEMA | |
| Minimum Input Horsepower: 0.25 | |
| Output RPM at 1750 Input: 117.0 | |
| Torque Output (In/Lb) with 1/2 Horsepower Motor @ 1750: 237 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 156 | |
| Torque Output (In/Lb) with 3/4 Horsepower Motor @ 1750: 356 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 118 | |
| Height (Decimal Inch): 6.3800 | |
| Length (Decimal Inch – 4 Decimals): 5.5000 | |
| Width (Decimal Inch – 4 Decimals): 3.7500 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 08433781 |
| Mfr# | XE1094 |
| Big Book# | 3716 |
