Sale!

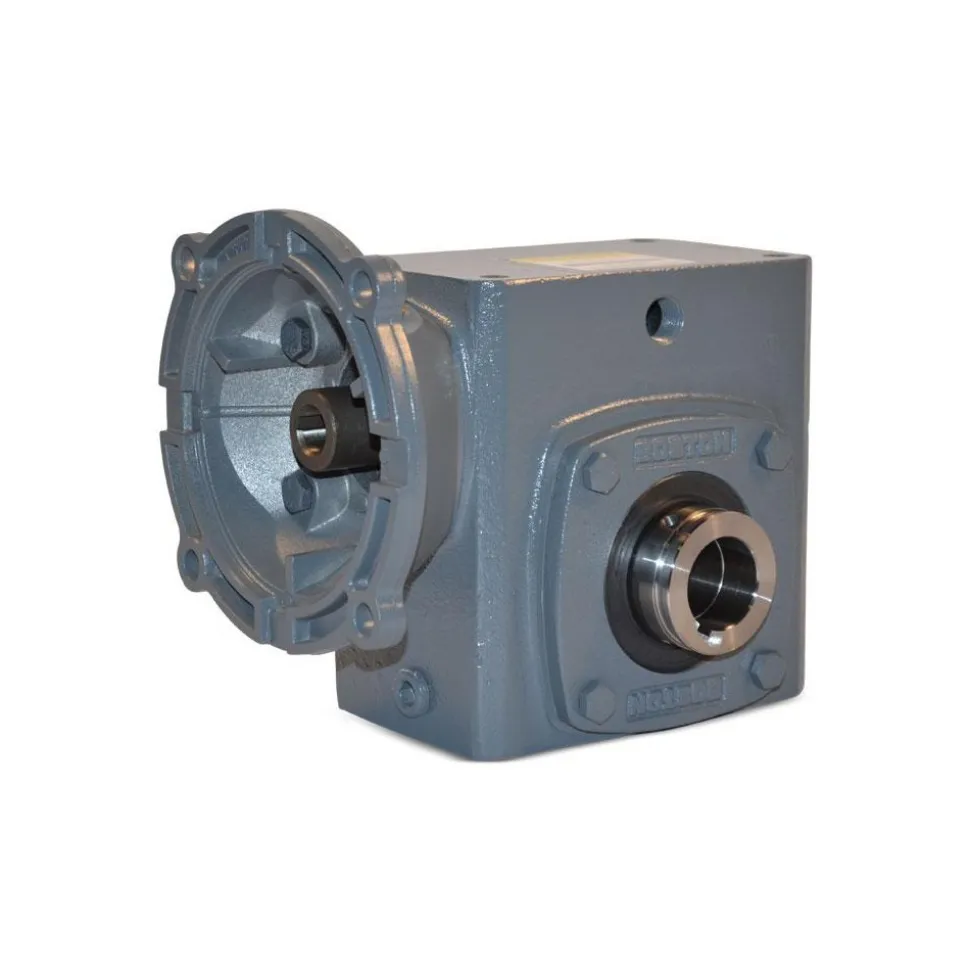

Speed Reducer: Quill, 1.33″ Center to Center Shaft, 20:1, 0.52 hp Max Input, Worm Gear
Original price was: 937,00 $.134,89 $Current price is: 134,89 $.
Specifications
| Centerline Distance: 1.330 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 20:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 1.3300 in |
| Speed Ratio: 20:1 | Maximum Input Horsepower: 0.52 |
| Maximum Output Speed: 88.0 | Maximum Torque (In/Lb.): 308.00 |
| Bore Diameter (Decimal Inch): 0.6250 | Shaft Diameter (Decimal Inch): 0.6250 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Overall Width (Decimal Inch – 4 Decimals): 6.0300 | Standards: ISO 9001:2015 |
| Base Type: PROJ | Output RPM at 1750 Input: 88.0 |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 197 | Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 148 |
| UNSPSC Code: 26111500 | Country of Origin: UNITED STATES |
| Centerline Distance: 1.330 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 20:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 1.3300 in | |
| Speed Ratio: 20:1 | |
| Maximum Input Horsepower: 0.52 | |
| Maximum Output Speed: 88.0 | |
| Maximum Torque (In/Lb.): 308.00 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Shaft Diameter (Decimal Inch): 0.6250 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Width (Decimal Inch – 4 Decimals): 6.0300 | |
| Standards: ISO 9001:2015 | |
| Base Type: PROJ | |
| Output RPM at 1750 Input: 88.0 | |
| Torque Output (In/Lb) with 1/3 Horsepower Motor @ 1750: 197 | |
| Torque Output (In/Lb) with 1/4 Horsepower Motor @ 1750: 148 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 06383962 |
| Mfr# | 51615 |
| Big Book# | 3717 |
