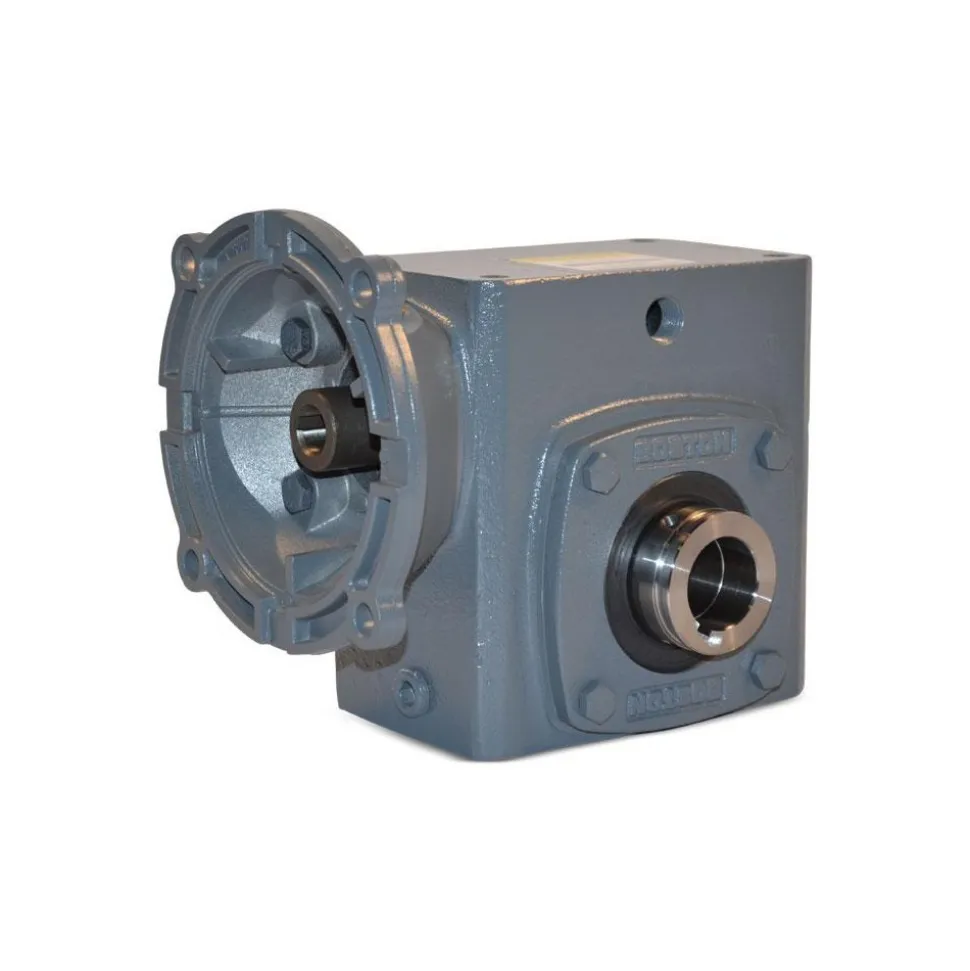

Speed Reducer: Quill, 1″ Center to Center Shaft, 40:1, 0.17 hp Max Input, Worm Gear
Original price was: 835,00 $.128,89 $Current price is: 128,89 $.
Specifications
| Centerline Distance: 1.000 | Reducer Type: Quill |
| Shaft Type: Single | Ratio: 40:1 |
| Shaft Orientation: Right Angle | Center-to-center Shaft Distance: 1.0000 in |
| Speed Ratio: 40:1 | Maximum Input Horsepower: 0.17 |
| Maximum Output Speed: 43.8 | Nema/Iec Frame Size: 56C NEMA |
| Maximum Input Speed: 4500.0 | Maximum Torque (In/Lb.): 151.00 |
| Bore Diameter (Decimal Inch): 0.6250 | Shaft Diameter (Decimal Inch): 0.5000 |
| Gear Type: Worm | Housing Material: Cast Iron |
| Overall Length (Decimal Inch): 5.5900 | Overall Width (Decimal Inch – 4 Decimals): 5.7600 |
| Overall Height (Decimal Inch): 3.6200 | Standards: ISO 9001:2015 |
| Base Type: PROJ | Output RPM at 1750 Input: 44.0 |
| Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750: 148.000 | UNSPSC Code: 26111500 |
| Country of Origin: UNITED STATES | |
| Centerline Distance: 1.000 | |
| Reducer Type: Quill | |
| Shaft Type: Single | |
| Ratio: 40:1 | |
| Shaft Orientation: Right Angle | |
| Center-to-center Shaft Distance: 1.0000 in | |
| Speed Ratio: 40:1 | |
| Maximum Input Horsepower: 0.17 | |
| Maximum Output Speed: 43.8 | |
| Nema/Iec Frame Size: 56C NEMA | |
| Maximum Input Speed: 4500.0 | |
| Maximum Torque (In/Lb.): 151.00 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Shaft Diameter (Decimal Inch): 0.5000 | |
| Gear Type: Worm | |
| Housing Material: Cast Iron | |
| Overall Length (Decimal Inch): 5.5900 | |
| Overall Width (Decimal Inch – 4 Decimals): 5.7600 | |
| Overall Height (Decimal Inch): 3.6200 | |
| Standards: ISO 9001:2015 | |
| Base Type: PROJ | |
| Output RPM at 1750 Input: 44.0 | |
| Torque Output (In/Lb) with 1/6 Horsepower Motor @ 1750: 148.000 | |
| UNSPSC Code: 26111500 | |
| Country of Origin: UNITED STATES |
| MSC# | 06382758 |
| Mfr# | 59842 |
| Big Book# | 3712 |
