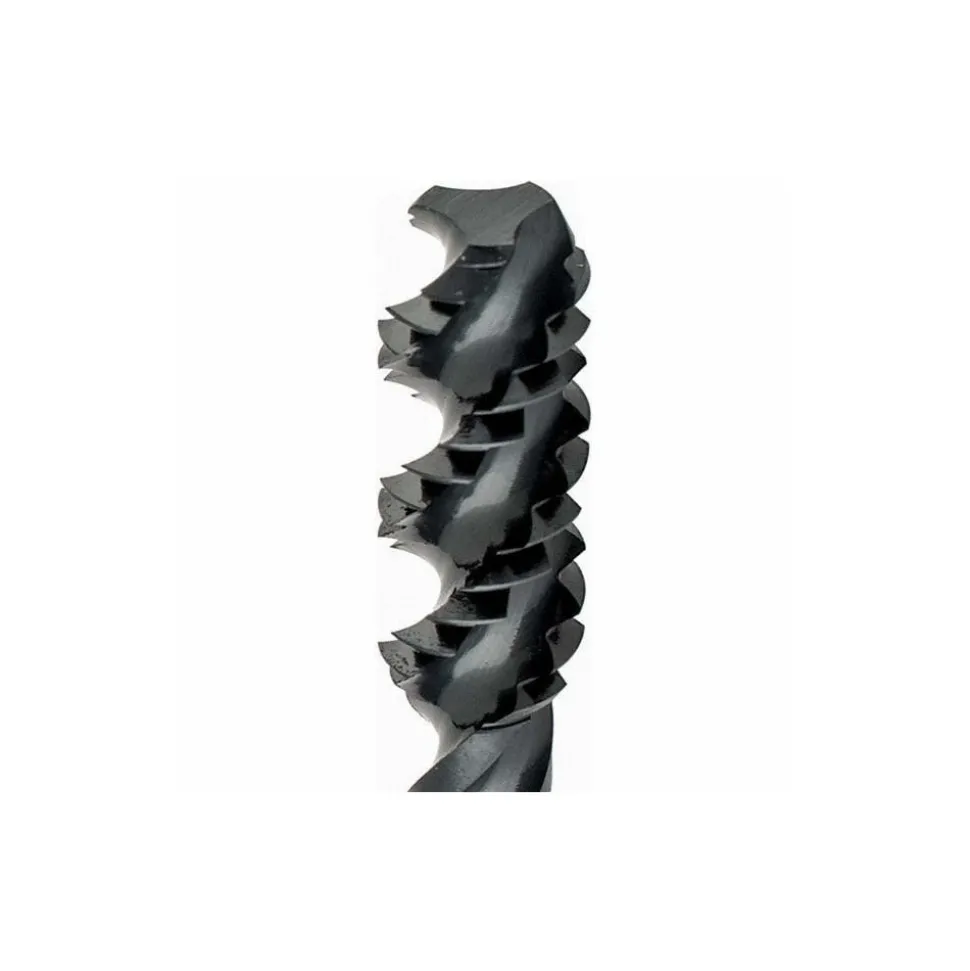

Spiral Flute Tap: 1/4-20, UNC, 3 Flute, Bottoming Chamfer, 2B Class of Fit, High-Speed Steel, Oxide Finish
Original price was: 22,00 $.15,99 $Current price is: 15,99 $.
Specifications
| Thread Size (Inch): 1/4-20 | Thread Standard: UNC |
| Chamfer: Bottoming | Material: High-Speed Steel |
| Class Of Fit: 2B | Coating/Finish: Oxide |
| Thread Direction: Right Hand | Coolant Through: No |
| Material Application: Aluminum; Carbon Steel | Number Of Flutes: 3 |
| Flute Direction: Right Hand | Helix Angle: 50.00 |
| Proprietary Coating/Finish: Oxide | Oversize: No |
| Primary Workpiece Material: Aluminum & Non-Ferrous; Steel | Threads per Inch: 20 |
| Overall Length (Inch): 2-1/2 | Thread Length (Decimal Inch): 0.5940 |
| Overall Length (Decimal Inch): 2.5000 | Primary Workpiece Material Code: P; N |
| Shank Diameter (Decimal Inch): 0.2550 | Neck Length (Decimal Inch): 0.9960 |
| Square Length (Decimal Inch): 0.3125 | Square Size (Decimal Inch): 0.1910 |
| Flute Style: Spiral | Series: 297 |
| UNSPSC Code: 27112806 | Product Name: OSG OSG 1658 |
| Country of Origin: Brazil | |
| Thread Size (Inch): 1/4-20 | |
| Thread Standard: UNC | |
| Chamfer: Bottoming | |
| Material: High-Speed Steel | |
| Class Of Fit: 2B | |
| Coating/Finish: Oxide | |
| Thread Direction: Right Hand | |
| Coolant Through: No | |
| Material Application: Aluminum; Carbon Steel | |
| Number Of Flutes: 3 | |
| Flute Direction: Right Hand | |
| Helix Angle: 50.00 | |
| Proprietary Coating/Finish: Oxide | |
| Oversize: No | |
| Primary Workpiece Material: Aluminum & Non-Ferrous; Steel | |
| Threads per Inch: 20 | |
| Overall Length (Inch): 2-1/2 | |
| Thread Length (Decimal Inch): 0.5940 | |
| Overall Length (Decimal Inch): 2.5000 | |
| Primary Workpiece Material Code: P; N | |
| Shank Diameter (Decimal Inch): 0.2550 | |
| Neck Length (Decimal Inch): 0.9960 | |
| Square Length (Decimal Inch): 0.3125 | |
| Square Size (Decimal Inch): 0.1910 | |
| Flute Style: Spiral | |
| Series: 297 | |
| UNSPSC Code: 27112806 | |
| Product Name: OSG OSG 1658 | |
| Country of Origin: Brazil |
| MSC# | 04621678 |
| Mfr# | 2985601 |
| Big Book# | 331 |
