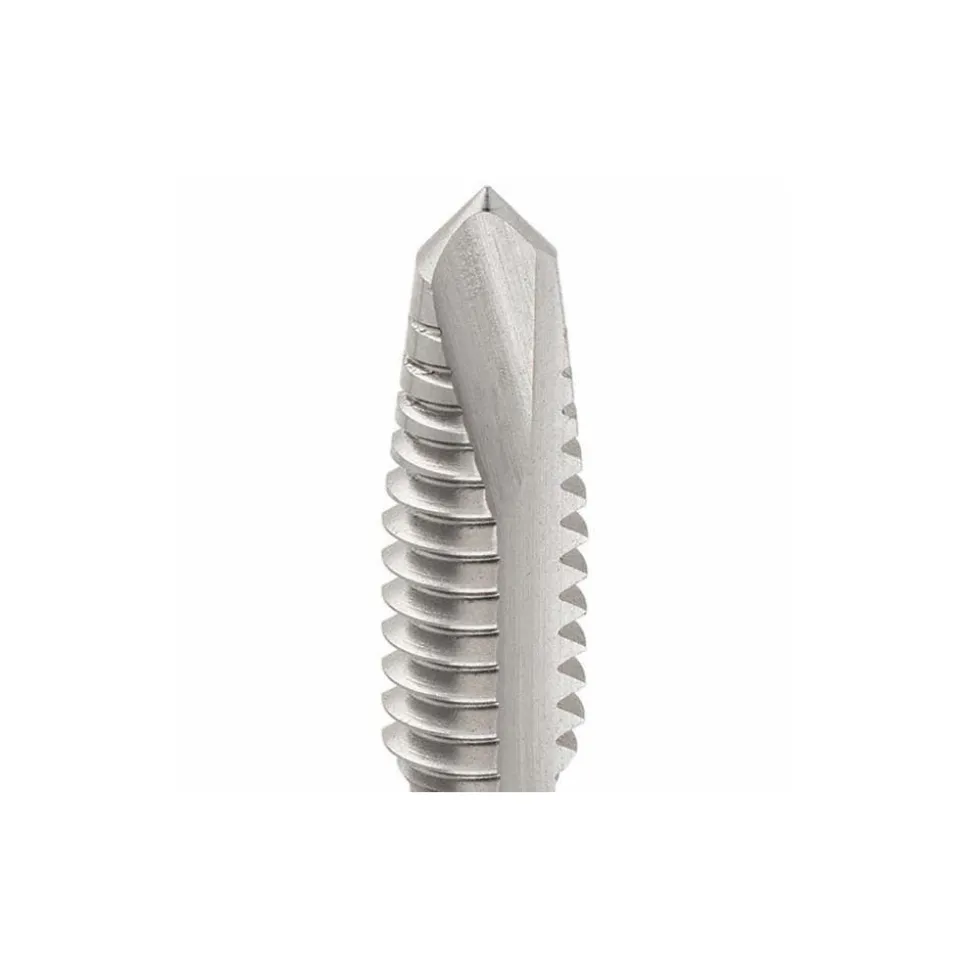

Spiral Point Tap: 1/4-20 UNC, 2 Flutes, Plug Chamfer, 3B Class of Fit, HSS, Bright/Uncoated Coated
9,89 $
Specifications
| Thread Size (Inch): 1/4-20 | Thread Standard: UNC |
| Chamfer: Plug | Material: HSS |
| Thread Limit: H3 | Class Of Fit: 3B |
| Coating/Finish: Bright/Uncoated | Thread Direction: Right Hand |
| Coolant Through: No | Number Of Flutes: 2 |
| Material Application: Low-Carbon Steel; High-Carbon Steel; Non-Ferrous Metal; Cast Iron; Medium-Carbon Steel | Oversize: No |
| Interrupted Thread: No | Threads per Inch: 20 |
| Thread Pitch (Decimal Inch): 0.0500 | Overall Length (Decimal Inch): 2.6800 |
| Thread Length (Decimal Inch): 0.7440 | Thread Length (Inch): 1 |
| Shank Diameter (Decimal Inch): 0.2550 | Application: Through-Hole Threading |
| Neck Length (Decimal Inch): 0.3700 | Measurement Type: Decimal Inch |
| Series: 105 | Style: Spiral Point |
| UNSPSC Code: 27112806 | Product Name: OSG 1658 |
| Country of Origin: Brazil | |
| Thread Size (Inch): 1/4-20 | |
| Thread Standard: UNC | |
| Chamfer: Plug | |
| Material: HSS | |
| Thread Limit: H3 | |
| Class Of Fit: 3B | |
| Coating/Finish: Bright/Uncoated | |
| Thread Direction: Right Hand | |
| Coolant Through: No | |
| Number Of Flutes: 2 | |
| Material Application: Low-Carbon Steel; High-Carbon Steel; Non-Ferrous Metal; Cast Iron; Medium-Carbon Steel | |
| Oversize: No | |
| Interrupted Thread: No | |
| Threads per Inch: 20 | |
| Thread Pitch (Decimal Inch): 0.0500 | |
| Overall Length (Decimal Inch): 2.6800 | |
| Thread Length (Decimal Inch): 0.7440 | |
| Thread Length (Inch): 1 | |
| Shank Diameter (Decimal Inch): 0.2550 | |
| Application: Through-Hole Threading | |
| Neck Length (Decimal Inch): 0.3700 | |
| Measurement Type: Decimal Inch | |
| Series: 105 | |
| Style: Spiral Point | |
| UNSPSC Code: 27112806 | |
| Product Name: OSG 1658 | |
| Country of Origin: Brazil |
| MSC# | 64938004 |
| Mfr# | 1230000 |
| Big Book# | 289 |
