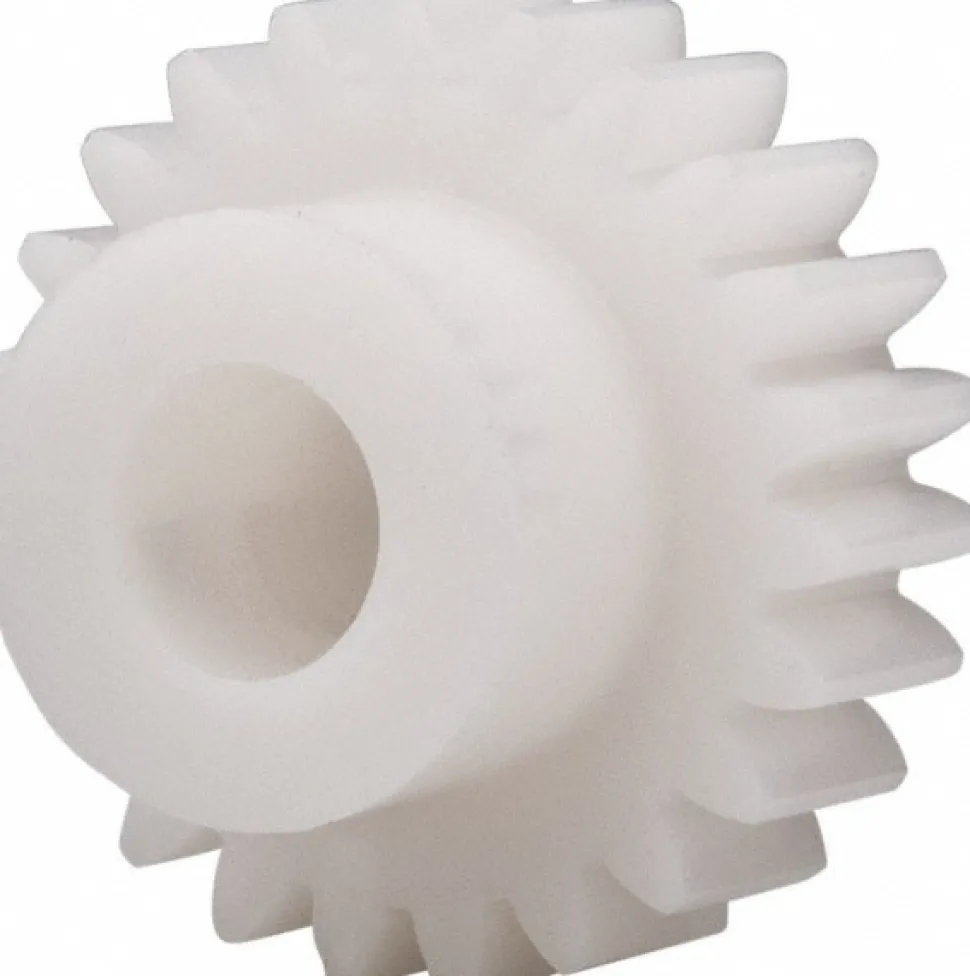

Spur Gear: 23 Teeth, 3/8″ Bore Dia
5,99 $
Specifications
| Gear Type: Spur | Pitch Diameter (Decimal Inch): 1.1500 |
| Outside Diameter (Decimal Inch): 1.2500 | Face Width (Decimal Inch): 0.3800 |
| Face Width (Inch): 3/8 | Hub Diameter (Decimal Inch): 0.7300 |
| Hub Diameter (Inch): 47/64 | Pressure Angle: 20.00 |
| Material: POM | Diametral Pitch: 20 |
| Bore Diameter (Inch): 3/8 | Bore Diameter (Decimal Inch): 0.3750 |
| Number Of Teeth: 23 | UNSPSC Code: 31171700 |
| Product Service Code: 3020 | Country of Origin: UNITED STATES |
| Gear Type: Spur | |
| Pitch Diameter (Decimal Inch): 1.1500 | |
| Outside Diameter (Decimal Inch): 1.2500 | |
| Face Width (Decimal Inch): 0.3800 | |
| Face Width (Inch): 3/8 | |
| Hub Diameter (Decimal Inch): 0.7300 | |
| Hub Diameter (Inch): 47/64 | |
| Pressure Angle: 20.00 | |
| Material: POM | |
| Diametral Pitch: 20 | |
| Bore Diameter (Inch): 3/8 | |
| Bore Diameter (Decimal Inch): 0.3750 | |
| Number Of Teeth: 23 | |
| UNSPSC Code: 31171700 | |
| Product Service Code: 3020 | |
| Country of Origin: UNITED STATES |
| MSC# | 03115334 |
| Mfr# | 2023 |
| Big Book# | 3758 |
