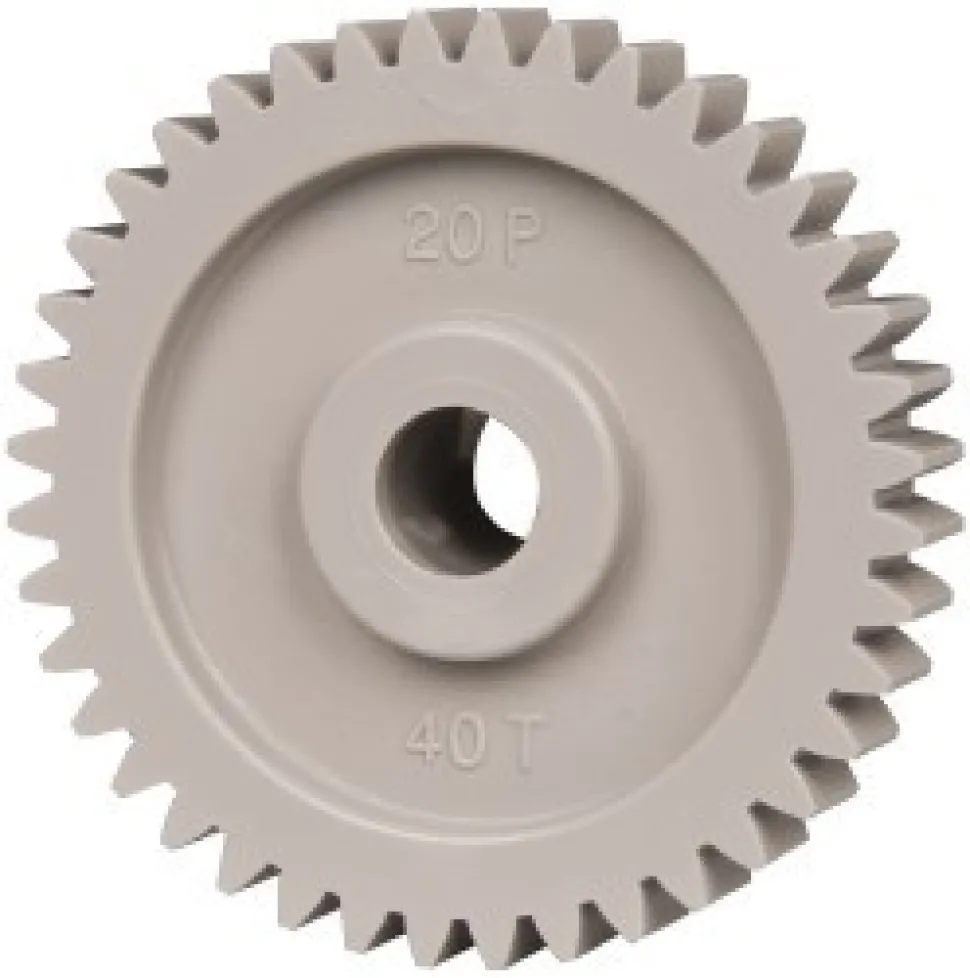

Spur Gear: 40 Teeth, 3/8″ Bore Dia, Standard Bore

9,89 $

Specifications

Gear Type: Spur	Pitch Diameter (Decimal Inch): 2.0000
Outside Diameter (Decimal Inch): 2.1000	Face Width (Decimal Inch): 0.3800
Face Width (Inch): 3/8	Hub Diameter (Decimal Inch): 0.7300
Hub Diameter (Inch): 47/64	Pressure Angle: 20.00
Material: POM	Bore Type: Standard
Hub Width (Inch): 3/8	Diametral Pitch: 20
Bore Diameter (Inch): 3/8	Bore Diameter (Decimal Inch): 0.3750
Number Of Teeth: 40	UNSPSC Code: 31171700
Product Service Code: 3020	Country of Origin: UNITED STATES
Gear Type: Spur
Pitch Diameter (Decimal Inch): 2.0000
Outside Diameter (Decimal Inch): 2.1000
Face Width (Decimal Inch): 0.3800
Face Width (Inch): 3/8
Hub Diameter (Decimal Inch): 0.7300
Hub Diameter (Inch): 47/64
Pressure Angle: 20.00
Material: POM
Bore Type: Standard
Hub Width (Inch): 3/8
Diametral Pitch: 20
Bore Diameter (Inch): 3/8
Bore Diameter (Decimal Inch): 0.3750
Number Of Teeth: 40
UNSPSC Code: 31171700
Product Service Code: 3020
Country of Origin: UNITED STATES
