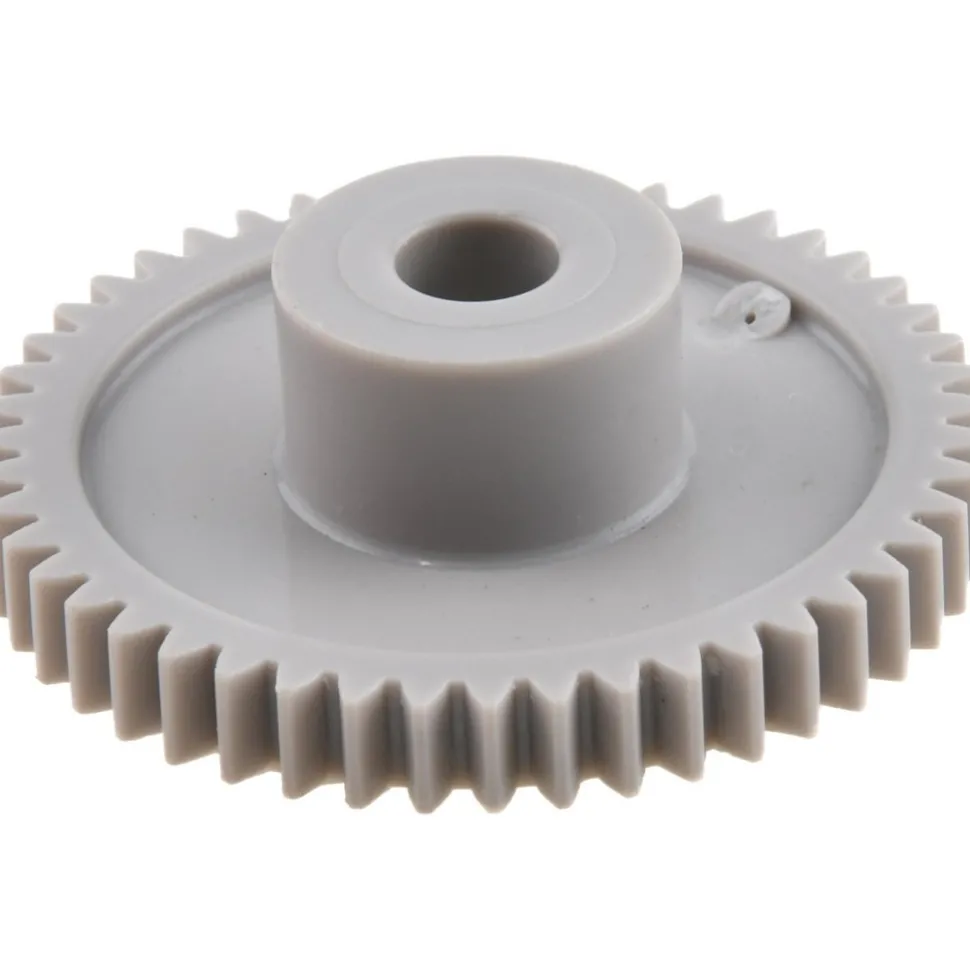

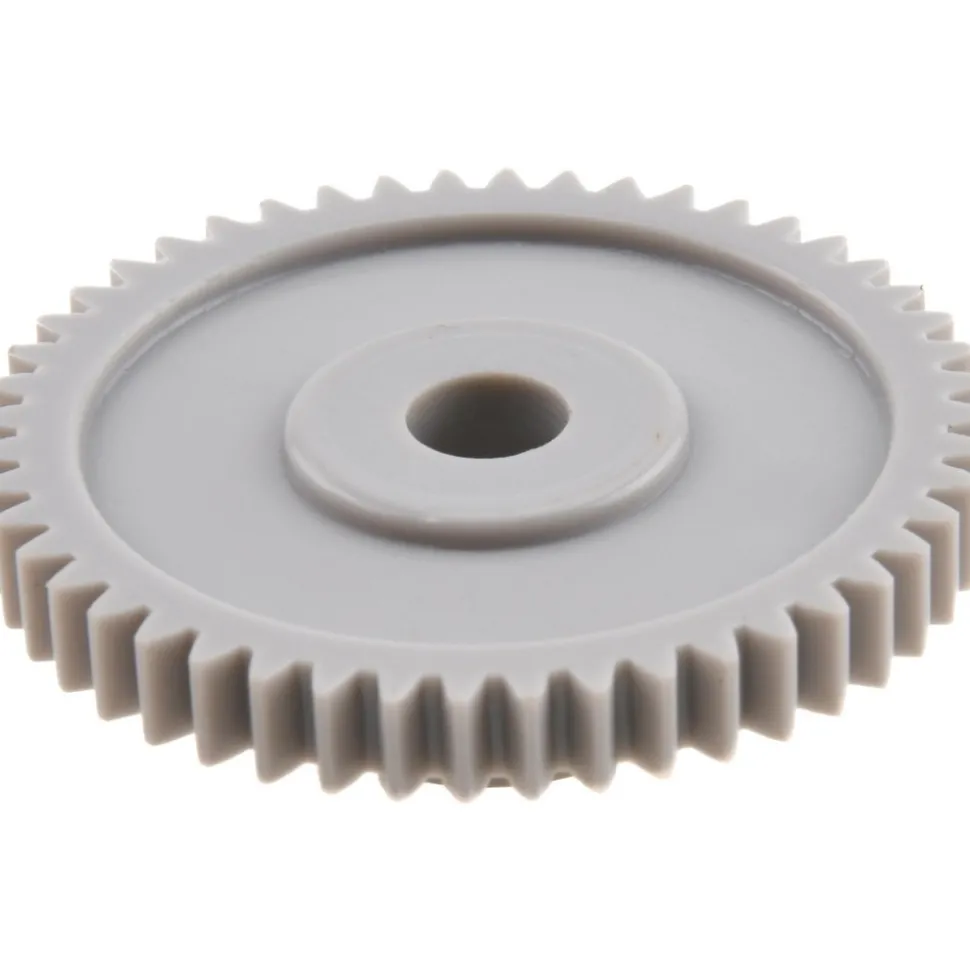

Spur Gear: 48 Teeth, 1/4″ Bore Dia, Standard Bore

Original price was: 10,00 $.Current price is: 7,89 $.

Specifications

Gear Type: Spur	Pitch Diameter (Decimal Inch): 1.5000
Outside Diameter (Decimal Inch): 1.5630	Face Width (Decimal Inch): 0.1880
Face Width (Inch): 3/16	Hub Diameter (Decimal Inch): 0.6300
Hub Diameter (Inch): 5/8	Pressure Angle: 20.00
Material: POM	Bore Type: Standard
Hub Width (Inch): 5/16	Diametral Pitch: 32
Bore Diameter (Inch): 1/4	Bore Diameter (Decimal Inch): 0.2500
Number Of Teeth: 48	UNSPSC Code: 31171700
Product Service Code: 3020	Country of Origin: UNITED STATES
Gear Type: Spur
Pitch Diameter (Decimal Inch): 1.5000
Outside Diameter (Decimal Inch): 1.5630
Face Width (Decimal Inch): 0.1880
Face Width (Inch): 3/16
Hub Diameter (Decimal Inch): 0.6300
Hub Diameter (Inch): 5/8
Pressure Angle: 20.00
Material: POM
Bore Type: Standard
Hub Width (Inch): 5/16
Diametral Pitch: 32
Bore Diameter (Inch): 1/4
Bore Diameter (Decimal Inch): 0.2500
Number Of Teeth: 48
UNSPSC Code: 31171700
Product Service Code: 3020
Country of Origin: UNITED STATES
