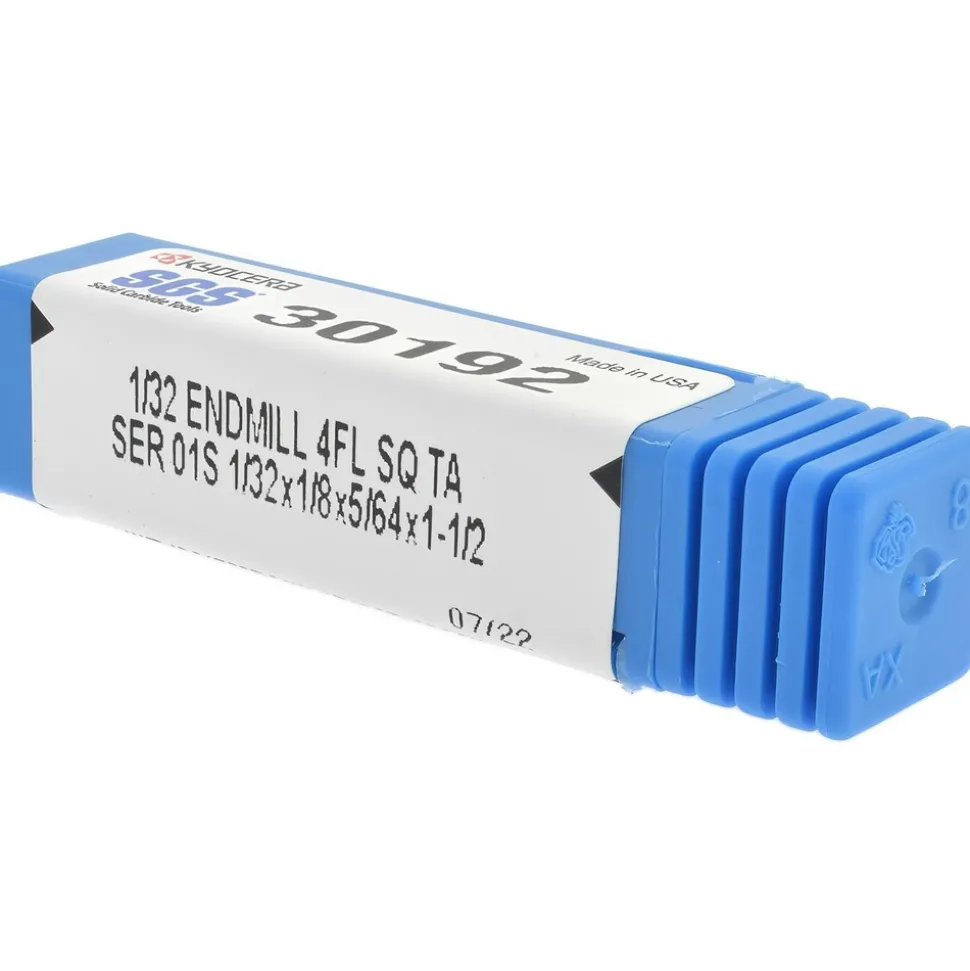

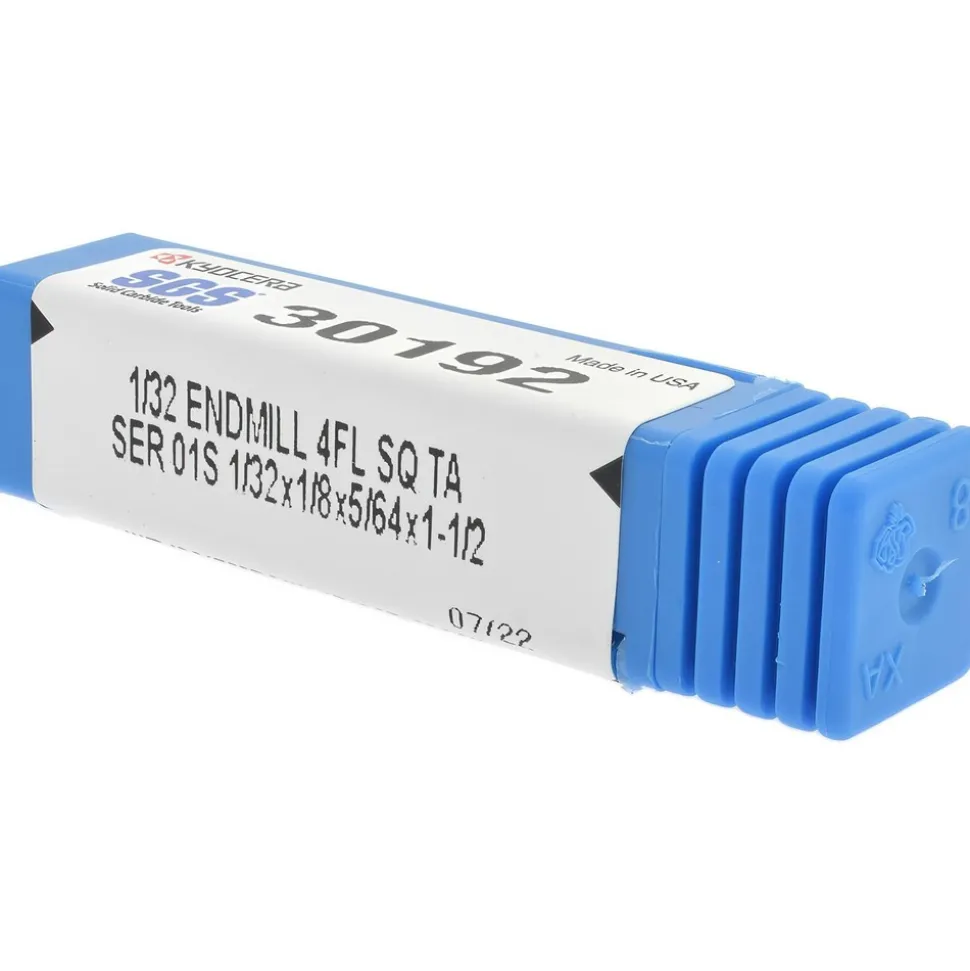

Square End Mill: 0.0312″ Dia, 0.0781″ LOC
17,89 $
Shop Square End Mill: 0.0312″ Dia, 0.0781″ LOC at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Decimal Inch): 0.0312 | Mill Diameter (Inch): 1/32 |
| Number Of Flutes: 4 | End Mill Material: Solid Carbide |
| Length of Cut (Decimal Inch): 0.0781 | Length of Cut (Inch): 5/64 |
| Shank Diameter (Decimal Inch): 0.1250 | Shank Diameter (Inch): 1/8 |
| Overall Length (Decimal Inch): 1.5000 | Overall Length (Inch): 1-1/2 |
| Single Or Double End: Single | Coating/Finish Family: AlTiN |
| Centercutting: Yes | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Extended Reach: No |
| Coolant Through: No | Helix Angle: 30 |
| Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials | Primary Workpiece Material Code: P; S; H; K; M; N |
| Coating/Finish: Ti-NAMITE-A | Variable Helix: No |
| Variable Index: Yes | Chipbreaker: No |
| Flute Type: Spiral | Shank Type: Straight-Cylindrical |
| Material Grade: Micrograin | Length Type: Regular |
| Length Of Cut Range (Decimal Inch): 0.0000 – 0.1000 | Mill Diameter Tolerance: +0.0000/-0.0020 in |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | Series: 1 |
| System Of Measurement: Decimal Inch | UNSPSC Code: 27112803 |
| Country of Origin: UNITED STATES | |
| Mill Diameter (Decimal Inch): 0.0312 | |
| Mill Diameter (Inch): 1/32 | |
| Number Of Flutes: 4 | |
| End Mill Material: Solid Carbide | |
| Length of Cut (Decimal Inch): 0.0781 | |
| Length of Cut (Inch): 5/64 | |
| Shank Diameter (Decimal Inch): 0.1250 | |
| Shank Diameter (Inch): 1/8 | |
| Overall Length (Decimal Inch): 1.5000 | |
| Overall Length (Inch): 1-1/2 | |
| Single Or Double End: Single | |
| Coating/Finish Family: AlTiN | |
| Centercutting: Yes | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Extended Reach: No | |
| Coolant Through: No | |
| Helix Angle: 30 | |
| Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Coating/Finish: Ti-NAMITE-A | |
| Variable Helix: No | |
| Variable Index: Yes | |
| Chipbreaker: No | |
| Flute Type: Spiral | |
| Shank Type: Straight-Cylindrical | |
| Material Grade: Micrograin | |
| Length Type: Regular | |
| Length Of Cut Range (Decimal Inch): 0.0000 – 0.1000 | |
| Mill Diameter Tolerance: +0.0000/-0.0020 in | |
| Shank Diameter Tolerance: -0.0001/-0.0004 in | |
| Series: 1 | |
| System Of Measurement: Decimal Inch | |
| UNSPSC Code: 27112803 | |
| Country of Origin: UNITED STATES |
| MSC# | 78695475 |
| Mfr# | 30192 |
| Big Book# | 448 |
