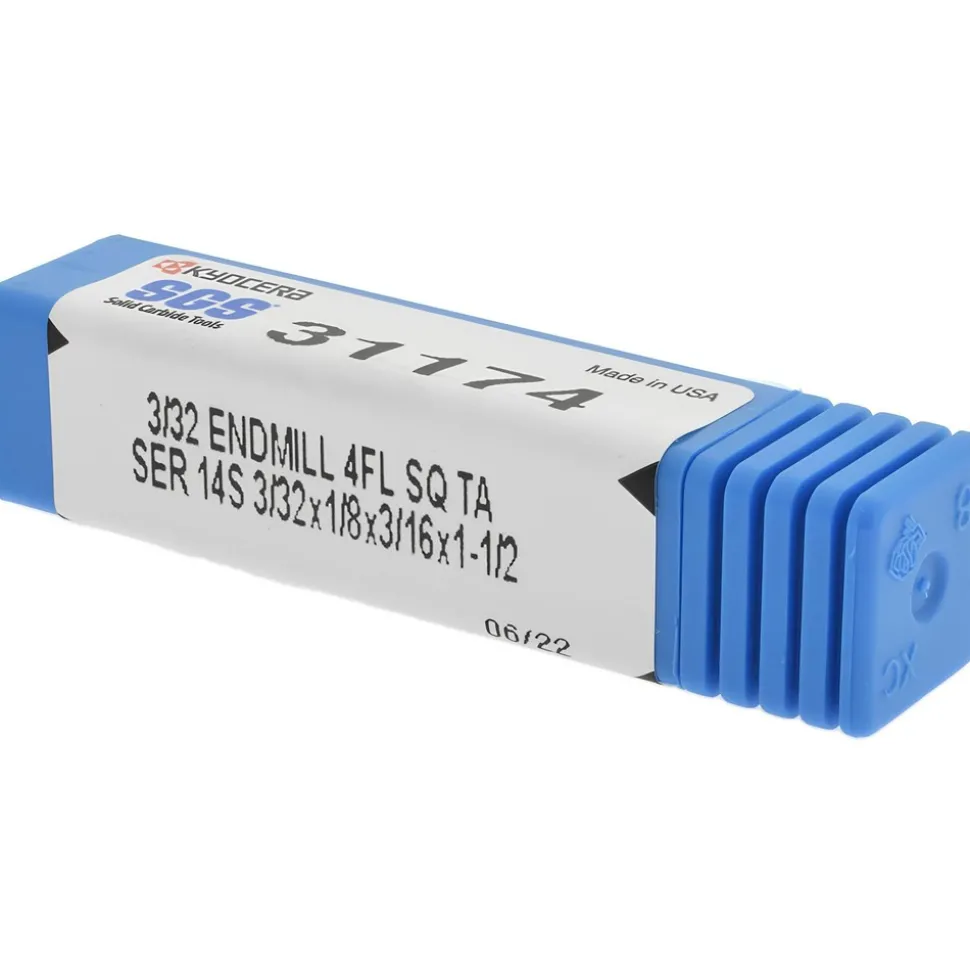

Square End Mill: 3/32" Dia, 3/16" LOC, 4 Flute, Solid Carbide

Square End Mill: 3/32″ Dia, 3/16″ LOC, 4 Flute, Solid Carbide

Name: Square End Mill: 3/32" Dia, 3/16" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 23.99 USD
Availability: InStock

23,99 $

Shop Square End Mill: 3/32″ Dia, 3/16″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: SGS Brand: SGS

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.0938	Mill Diameter (Inch): 3/32
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.1875	Length of Cut (Inch): 3/16
Shank Diameter (Decimal Inch): 0.1250	Shank Diameter (Inch): 1/8
Overall Length (Decimal Inch): 1.5000	Overall Length (Inch): 1-1/2
Single Or Double End: Double	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials	Primary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: Ti-NAMITE-A	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Shank Type: Straight-Cylindrical
Material Grade: Micrograin	Length Type: Stub
Mill Diameter Tolerance: +0.0000/-0.0020 in	Shank Diameter Tolerance: +0.00000/-0.00032 in
Series: 14	System Of Measurement: Fractional Inch
UNSPSC Code: 27112803	Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.0938
Mill Diameter (Inch): 3/32
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.1875
Length of Cut (Inch): 3/16
Shank Diameter (Decimal Inch): 0.1250
Shank Diameter (Inch): 1/8
Overall Length (Decimal Inch): 1.5000
Overall Length (Inch): 1-1/2
Single Or Double End: Double
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
Primary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: Ti-NAMITE-A
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Shank Type: Straight-Cylindrical
Material Grade: Micrograin
Length Type: Stub
Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: +0.00000/-0.00032 in
Series: 14
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
