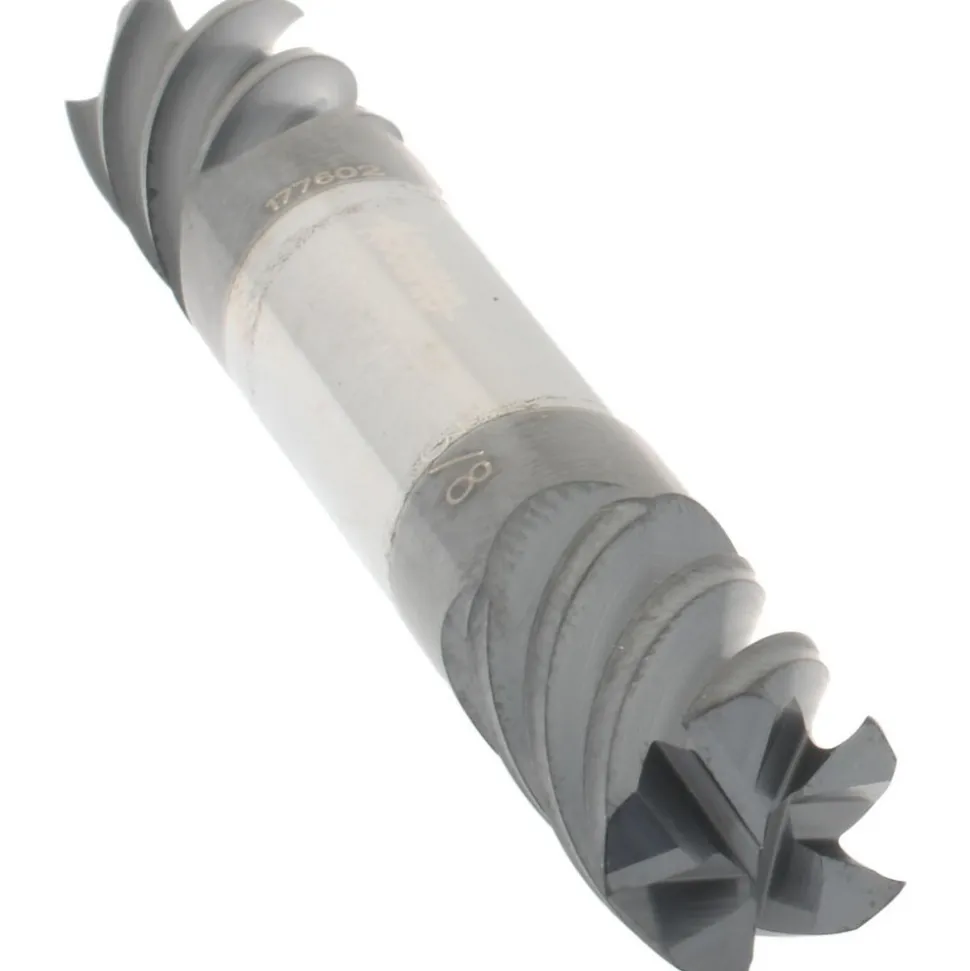

Square End Mill: 3/8″ Dia, 1/2″ LOC

Name: Square End Mill: 3/8" Dia, 1/2" LOC - Industrial Tool
Price: 51.89 USD
Availability: InStock

51,89 $

Shop Square End Mill: 3/8″ Dia, 1/2″ LOC at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: Accupro Brand: Accupro

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.3750	Mill Diameter (Inch): 3/8
Number Of Flutes: 5	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.5000	Length of Cut (Inch): 1/2
Shank Diameter (Decimal Inch): 0.3750	Shank Diameter (Inch): 3/8
Overall Length (Decimal Inch): 2.5000	Overall Length (Inch): 2-1/2
Single Or Double End: Double	Coating/Finish Family: AlTiN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 45
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Steel	Primary Workpiece Material Code: P; S; M
Coating/Finish: AlTiN	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Material Grade: Micrograin
Length Type: Stub	Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: -0.0001/-0.0004 in	Series: ASQSC5-AT-CCDE
System Of Measurement: Fractional Inch	UNSPSC Code: 27112803
Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.3750
Mill Diameter (Inch): 3/8
Number Of Flutes: 5
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.5000
Length of Cut (Inch): 1/2
Shank Diameter (Decimal Inch): 0.3750
Shank Diameter (Inch): 3/8
Overall Length (Decimal Inch): 2.5000
Overall Length (Inch): 2-1/2
Single Or Double End: Double
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 45
Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Steel
Primary Workpiece Material Code: P; S; M
Coating/Finish: AlTiN
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Material Grade: Micrograin
Length Type: Stub
Mill Diameter Tolerance: +0.0000/-0.0020 in
Shank Diameter Tolerance: -0.0001/-0.0004 in
Series: ASQSC5-AT-CCDE
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
