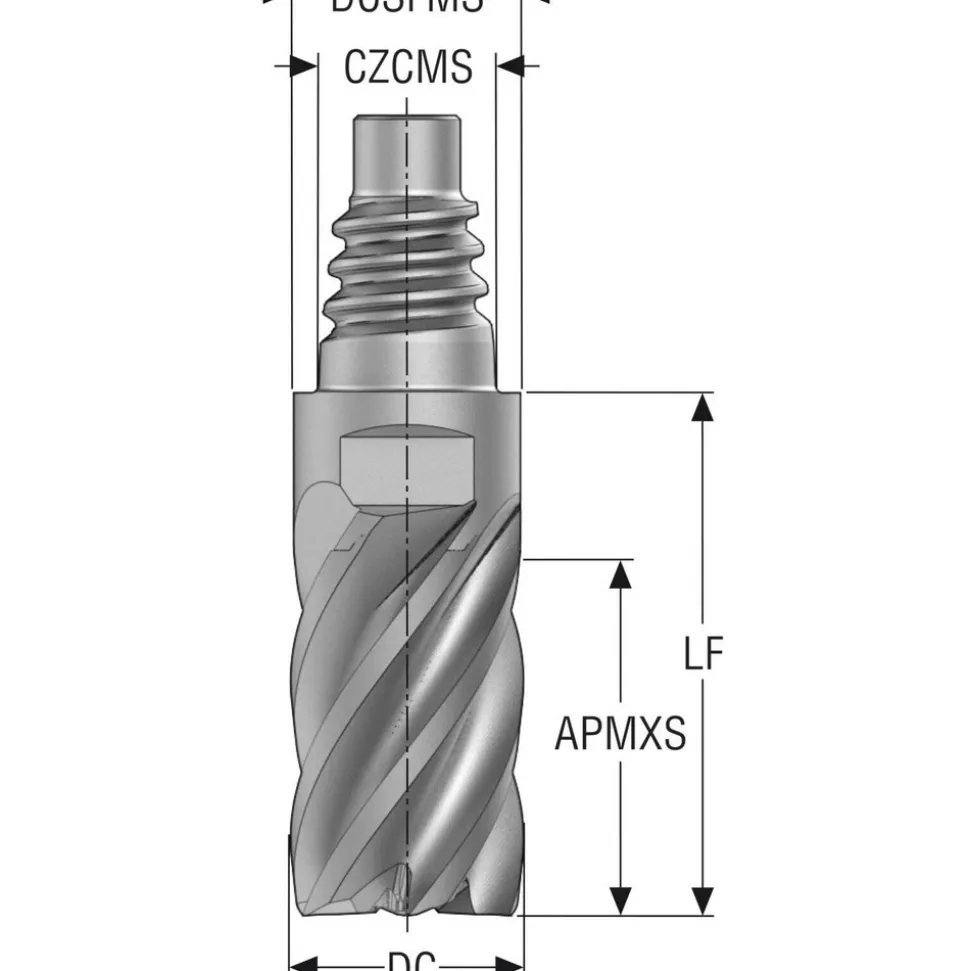

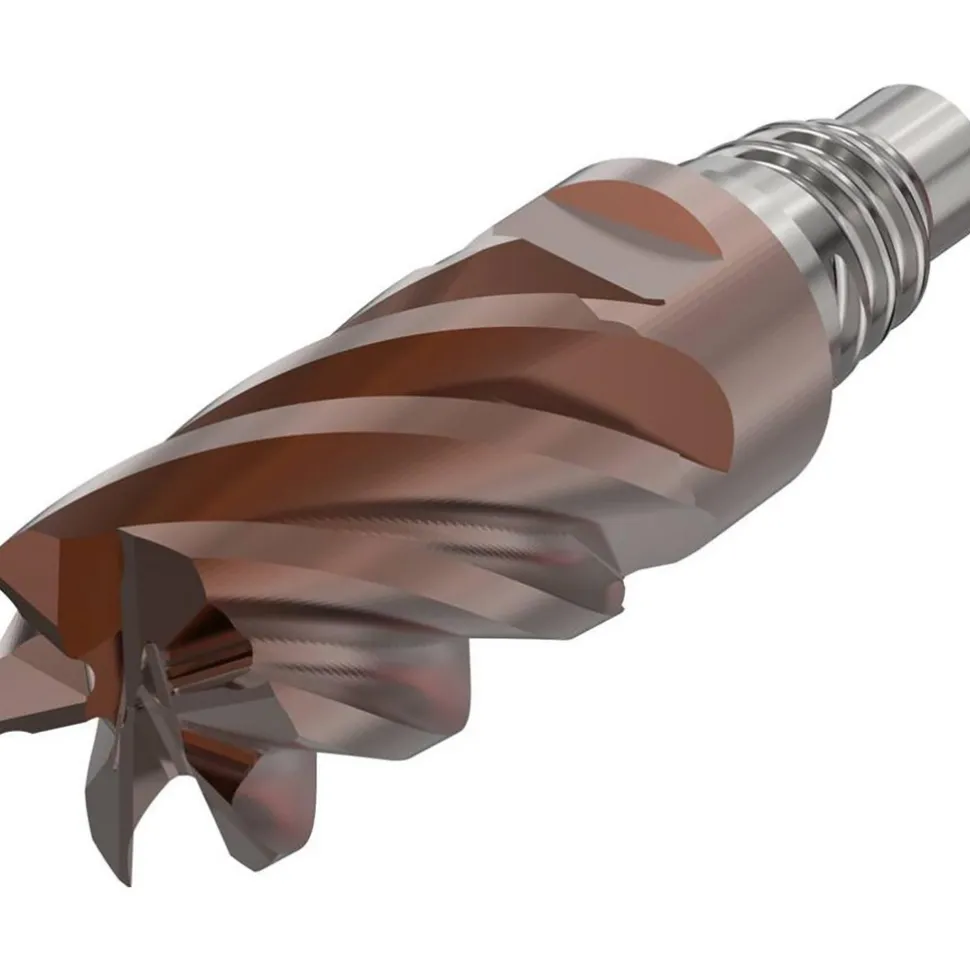

Square End Mill Heads; Mill Dia (Inch): 3/8; Mill Dia (Decimal Inch): 0.3750; Number of Flutes: 6; Length of Cut (Decimal Inch): 0.5625; Length of Cut (Inch): 9/16; Connection Type: E10; Overall Length (mm): 32.2000; Overall Length (Decimal Inch): 1.2677; Material: Solid Carbide
121,99 $
Shop Square End Mill Heads; Mill Dia (Inch): 3/8; Mill Dia (Decimal Inch): 0.3750; Number of Flutes: 6; Length of Cut (Decimal Inch): 0.5625; Length of Cut (Inch): 9/16; Connection Type: E10; Overall Length (mm): 32.2000; Overall Length (Decimal Inch): 1.2677; Material: Solid Carbide at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Decimal Inch): 0.3750 | Length of Cut (Inch): 9/16 |
| Connection Type: E10 | Overall Length (Decimal Inch): 1.2677 |
| Overall Length (mm): 32.20 | Material: Solid Carbide |
| Cutting Direction: Right Hand | Flute Direction: Right Hand |
| Center Cutting: Center Cutting | Flute Type: Helical |
| Helix Angle: 38 | Helix Style: Medium |
| Maximum Helix Angle: 38 | Minimum Helix Angle: 38 |
| Series/List: XSE720 | Variable Helix: No |
| Mill Diameter (Fractional Inch): 3/8 | End Type: Square |
| Length Type: Regular | Number Of Pieces: 1 |
| Chipbreaker: None | Shank Type: Modular Connection |
| Extended Reach: No | UNSPSC Code: 27112803 |
| Manufacturers Grade: HXT | Material Application: Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.5625 | Variable Index: No |
| Manufacturers Catalog Number: XSE720E10.375D3SZ6 | Number Of Flutes: 6 |
| Finish Coating: HXT | Country of Origin: Netherlands |
| Mill Diameter (Decimal Inch): 0.3750 | |
| Length of Cut (Inch): 9/16 | |
| Connection Type: E10 | |
| Overall Length (Decimal Inch): 1.2677 | |
| Overall Length (mm): 32.20 | |
| Material: Solid Carbide | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Center Cutting: Center Cutting | |
| Flute Type: Helical | |
| Helix Angle: 38 | |
| Helix Style: Medium | |
| Maximum Helix Angle: 38 | |
| Minimum Helix Angle: 38 | |
| Series/List: XSE720 | |
| Variable Helix: No | |
| Mill Diameter (Fractional Inch): 3/8 | |
| End Type: Square | |
| Length Type: Regular | |
| Number Of Pieces: 1 | |
| Chipbreaker: None | |
| Shank Type: Modular Connection | |
| Extended Reach: No | |
| UNSPSC Code: 27112803 | |
| Manufacturers Grade: HXT | |
| Material Application: Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Steel | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.5625 | |
| Variable Index: No | |
| Manufacturers Catalog Number: XSE720E10.375D3SZ6 | |
| Number Of Flutes: 6 | |
| Finish Coating: HXT | |
| Country of Origin: Netherlands |
| MSC# | 89510952 |
| Mfr# | 10138204 |
