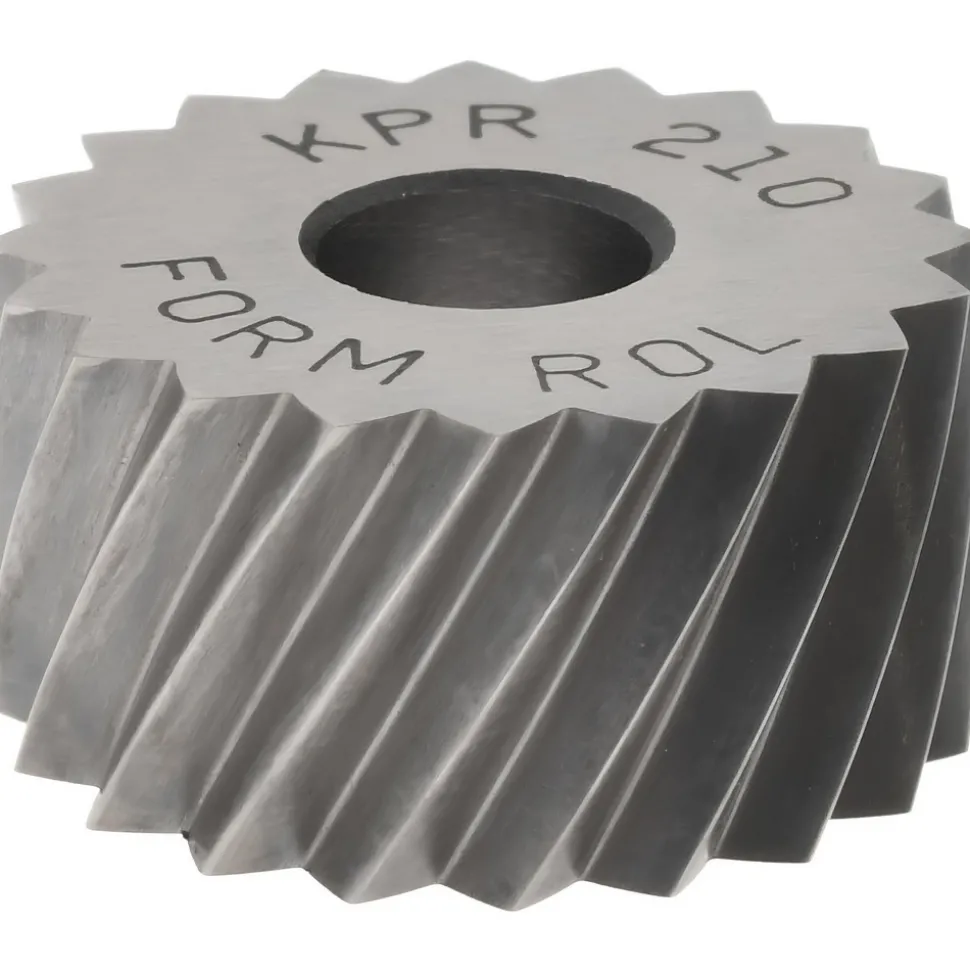

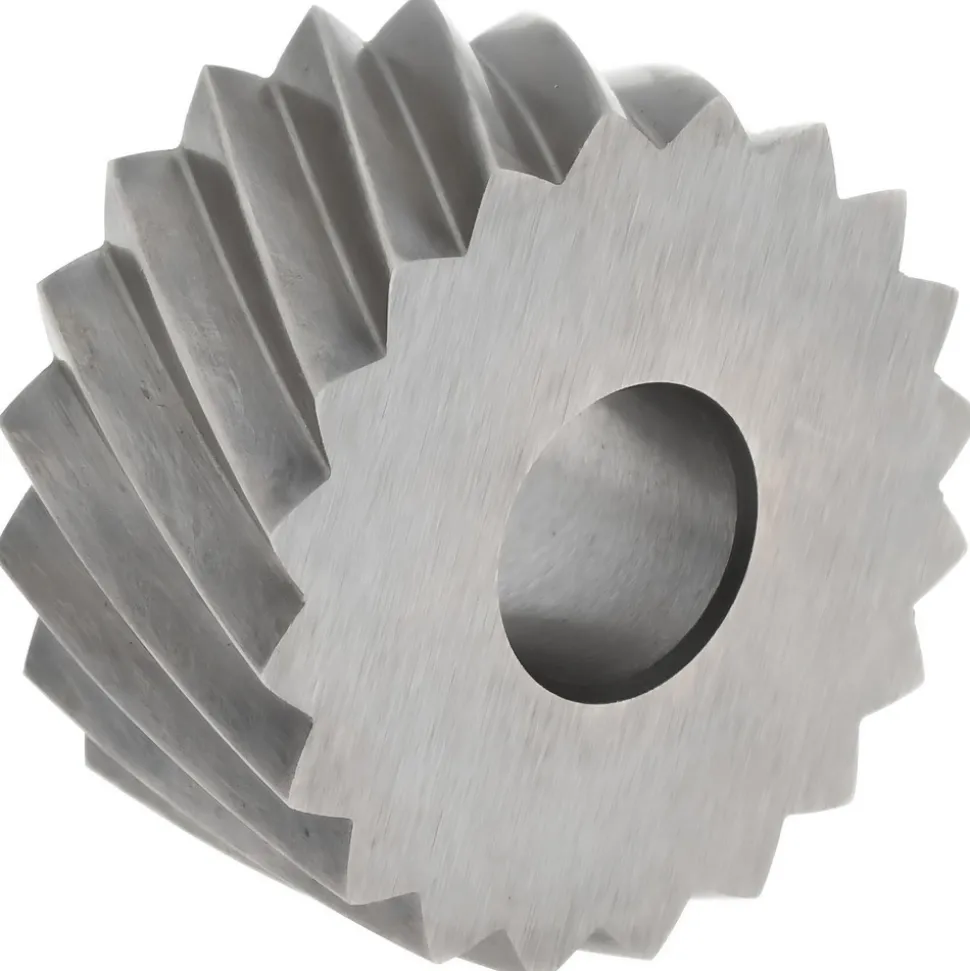

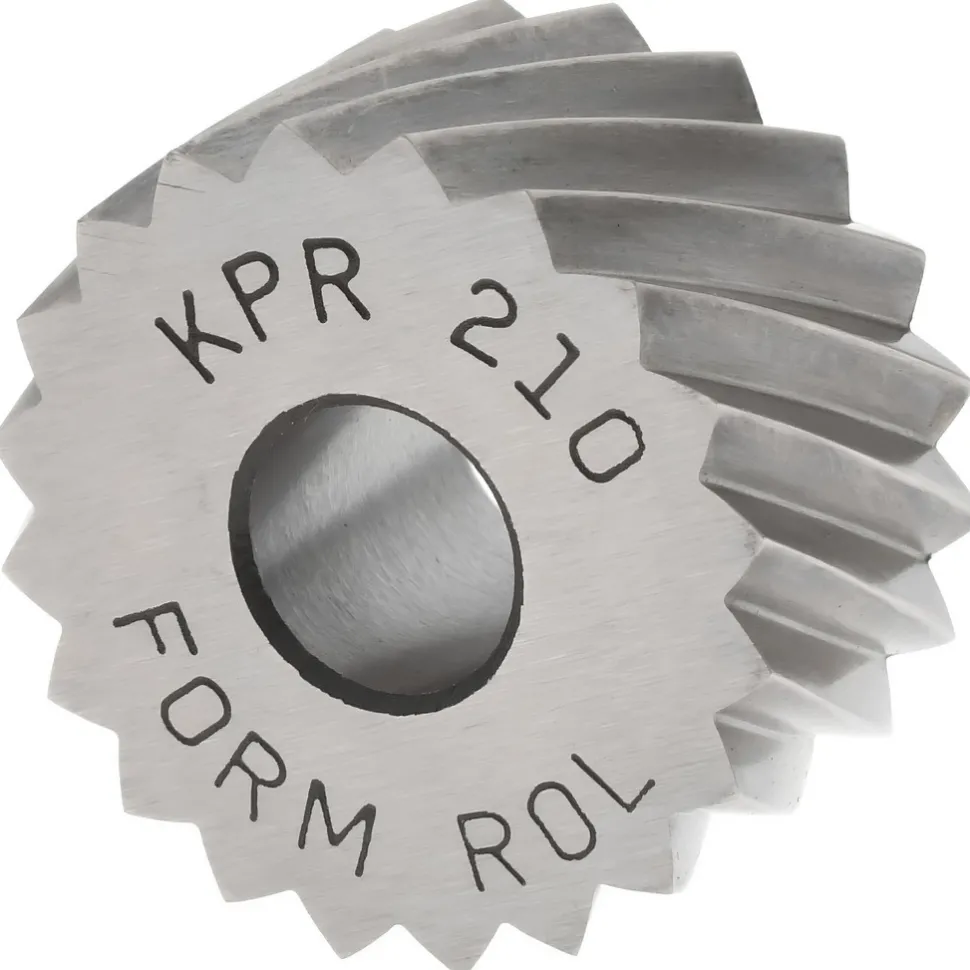

Standard Knurl Wheel: 3/4" Dia, 90 ° Tooth Angle, 10 TPI, Diagonal, High Speed Steel

Standard Knurl Wheel: 3/4″ Dia, 90 ° Tooth Angle, 10 TPI, Diagonal, High Speed Steel

21,99 $

SKU: SKUD1IIZ4bqLI Categories: Knurling Tools, Shop All Products, Turning & Boring Tag: Value Collection Brand: Value Collection

Description
Reviews (0)

Specifications

Knurl Shape: Standard	Tooth Pattern: Diagonal
Pattern: Right-Hand Diagonal	Form Or Cut Type: Form
Material: High-Speed Steel	Knurl Diameter (Decimal Inch): 0.7500
Knurl Diameter (Inch): 3/4	Face Width (Inch): 3/8
Face Width (Decimal Inch): 0.3750	Hole Diameter (Inch): 1/4
Hole Diameter (Decimal Inch): 0.2500	Pitch (TPI): 10
Pitch System: Circular	Included Tooth Angle: 90
Finish: Bright	Helix Angle: 30.00
Knurl Series: KP	UNSPSC Code: 23242118
Country of Origin: UNITED STATES
Knurl Shape: Standard
Tooth Pattern: Diagonal
Pattern: Right-Hand Diagonal
Form Or Cut Type: Form
Material: High-Speed Steel
Knurl Diameter (Decimal Inch): 0.7500
Knurl Diameter (Inch): 3/4
Face Width (Inch): 3/8
Face Width (Decimal Inch): 0.3750
Hole Diameter (Inch): 1/4
Hole Diameter (Decimal Inch): 0.2500
Pitch (TPI): 10
Pitch System: Circular
Included Tooth Angle: 90
Finish: Bright
Helix Angle: 30.00
Knurl Series: KP
UNSPSC Code: 23242118
Country of Origin: UNITED STATES
