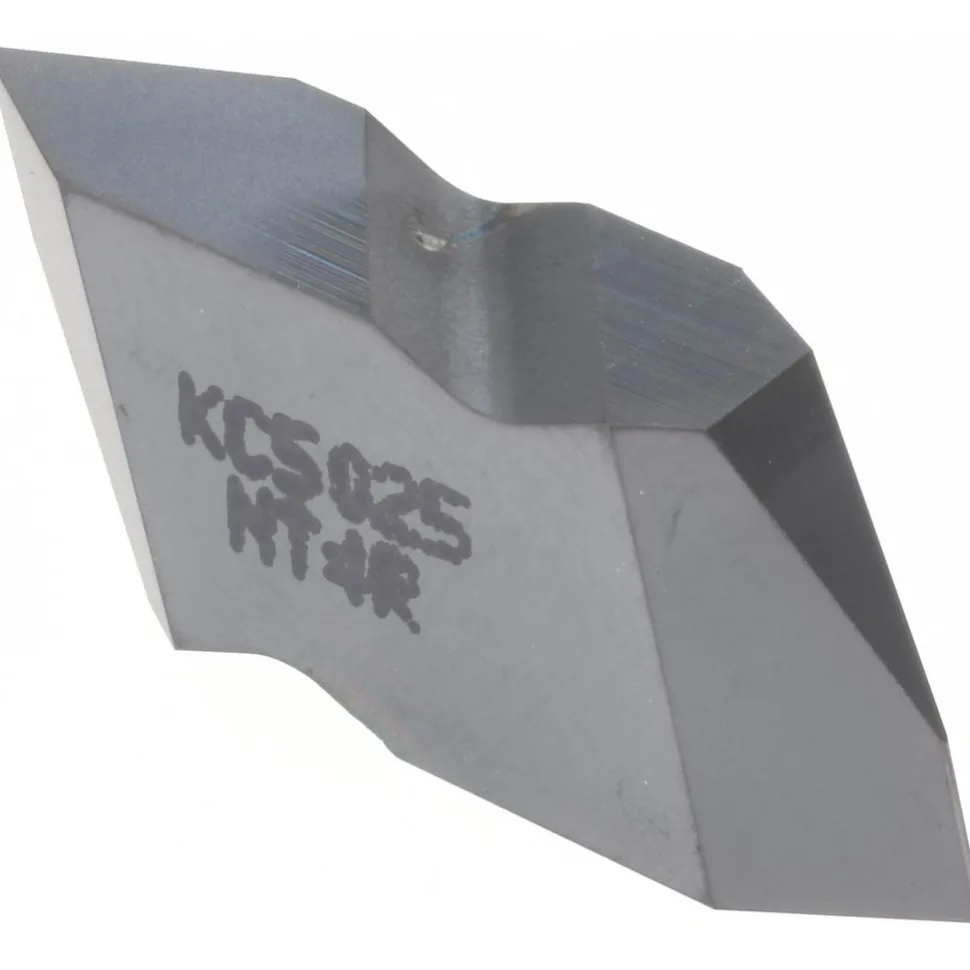

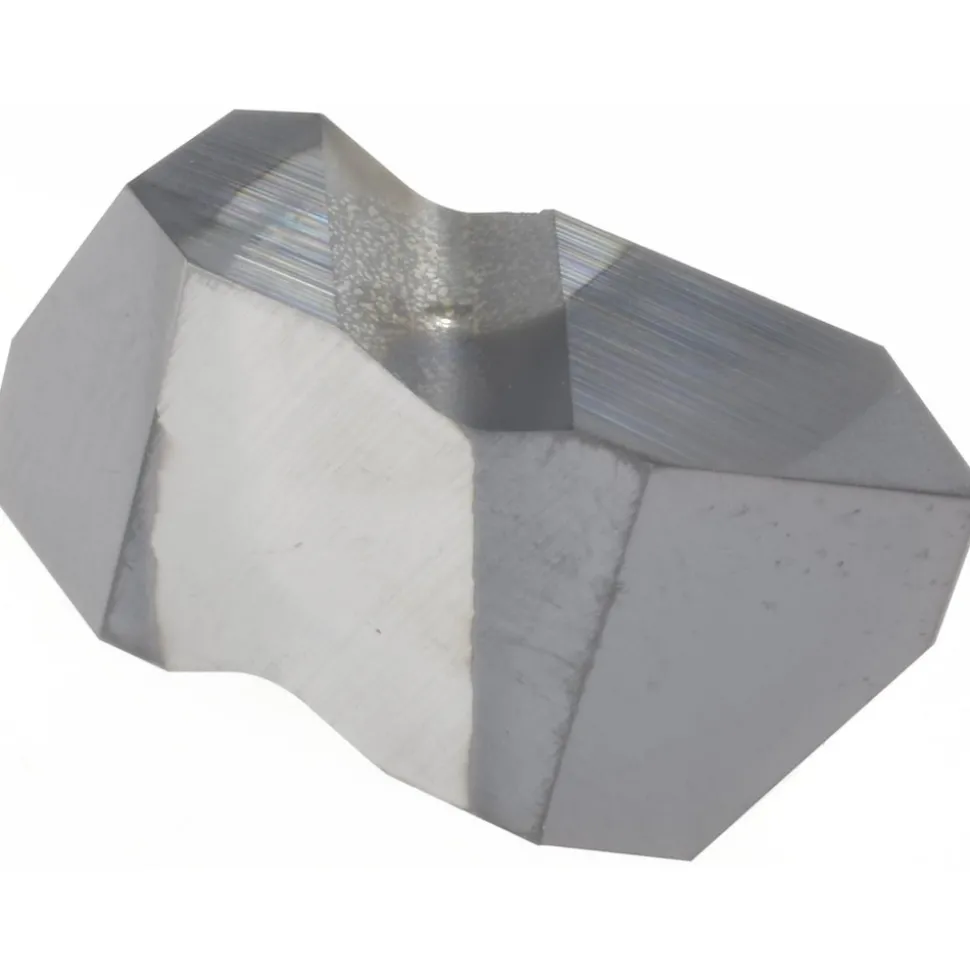

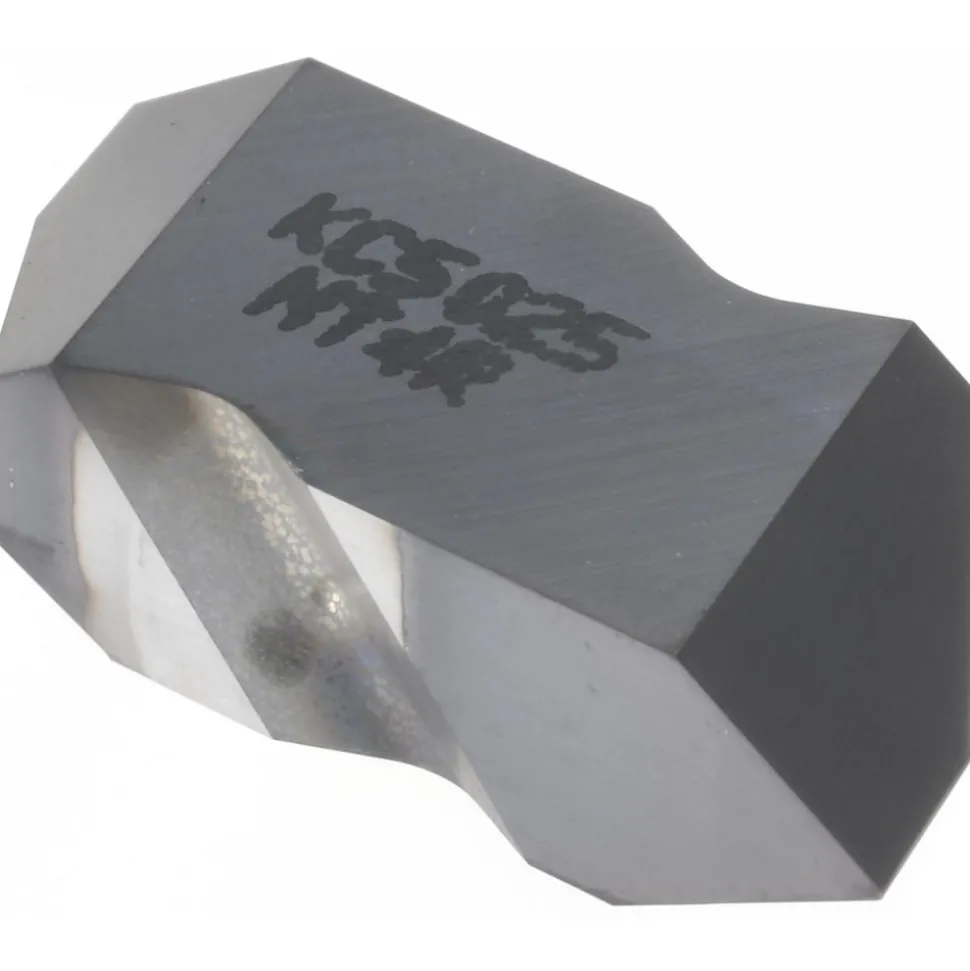

Threading Insert: NT4R KC5025, Carbide

36,99 $

Specifications

Insert Style: NT	Insert Material: Carbide
Manufacturer Grade: KC5025	Material Grade: C6; C2
Thread Standard: Partial Profile 60 Degree	Insert Hand: Right Hand
Internal Pitch: 2.00 to 6.25 mm; 4 to 12 TPI	External Pitch: 1.25-6.25 mm; 4-20 TPI
Included Angle: 60.00	Series: Top Notch
Coating Process: PVD	Tip to Top of Insert (Decimal Inch): 0.1280
Tip to Top of Insert (mm): 3.25	Corner Radius (Decimal Inch): 0.0067
Corner Radius (mm): 0.17	Thickness (mm): 6.48
Insert Size: 4	Thickness (Decimal Inch – 4 Decimals): 0.2551
Finish Coating: TiAlN	Thread Type: Internal; External
UNSPSC Code: 23291804	Country of Origin: UNITED STATES
Insert Style: NT
Insert Material: Carbide
Manufacturer Grade: KC5025
Material Grade: C6; C2
Thread Standard: Partial Profile 60 Degree
Insert Hand: Right Hand
Internal Pitch: 2.00 to 6.25 mm; 4 to 12 TPI
External Pitch: 1.25-6.25 mm; 4-20 TPI
Included Angle: 60.00
Series: Top Notch
Coating Process: PVD
Tip to Top of Insert (Decimal Inch): 0.1280
Tip to Top of Insert (mm): 3.25
Corner Radius (Decimal Inch): 0.0067
Corner Radius (mm): 0.17
Thickness (mm): 6.48
Insert Size: 4
Thickness (Decimal Inch – 4 Decimals): 0.2551
Finish Coating: TiAlN
Thread Type: Internal; External
UNSPSC Code: 23291804
Country of Origin: UNITED STATES
